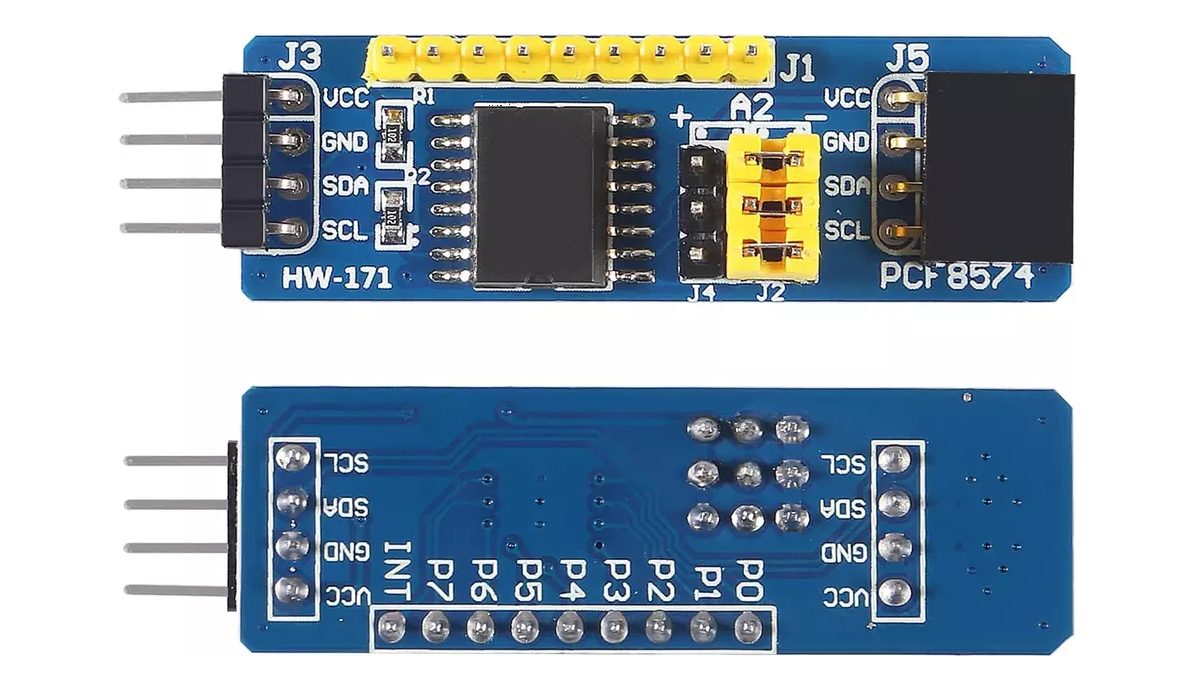

PCF8574 I2C I/O Expansion Module
The PCF8574 I2C I/O Expansion Module adds 8 digital I/O pins to microcontrollers via I2C, ideal for expanding GPIO capabilities in embedded projects.
95.00 EGP
In stockSKU 3496300110667
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
PCF8574 I2C I/O Expansion Module
The PCF8574 I²C I/O Expansion Module is designed to extend the input/output capabilities of microcontrollers through the I²C interface. It provides 8 quasi-bidirectional GPIO pins (P0–P7), allowing each pin to function as either an input or output without the need for a separate data-direction control signal. This flexibility makes it suitable for various applications, including driving LEDs, reading switches, and interfacing with sensors.
The module features an open-drain interrupt output (via INT pin), enabling efficient monitoring of input changes without continuous polling. Multiple PCF8574 modules can be connected on the same I²C bus, with configurable addresses (via A0–A2 pins) allowing up to 8 devices, thereby expanding the I/O count to 64. Its low power consumption and compatibility with 3.3 V and 5 V systems make it an excellent choice for embedded and battery-powered applications.
Features
- Adds 8 digital I/O pins via I2C interface with PCF8574.
- Quasi-bidirectional I/O pins configurable as inputs or outputs.
- Open-drain interrupt output for efficient input change detection.
- Supports up to 8 devices on the same I2C bus with configurable addresses.
- Low standby current consumption, suitable for low-power applications.
- Compatible with 3.3V and 5V logic levels.
- High-current drive capability for directly driving LEDs.
- No need for separate data-direction control signals.
- Compact module size for easy integration into projects.
- Ideal for expanding GPIO in microcontroller-based systems.
Specifications
| Parameter | Details |
|---|---|
| Operating Voltage | 2.5 V–6 V |
| Standby Current | < 10 µA |
| I/O Pins | 8 quasi-bidirectional |
| I2C Address Configurable | Yes, via A0–A2 pins (up to 8 devices) |
| Interrupt Output | Open-drain, active LOW |
| I2C Interface Speed | Up to 100 kHz (Standard-mode) |
| Logic Level Compatibility | 3.3 V and 5 V systems |
| Output Drive Capability | High-current drive for LEDs |
| Package Types | Various (e.g., SOIC, PDIP, TSSOP) |
| Pin | Function |
|---|---|
| A0 | Address bit 0: tie to GND (0) or VCC (1) to set the least significant address bit (value = 1). |
| A1 | Address bit 1: tie to GND (0) or VCC (1) to set the next address bit (value = 2). |
| A2 | Address bit 2: tie to GND (0) or VCC (1) to set the next address bit (value = 4). |
| GND | Ground reference, common with microcontroller ground. |
| VCC | Power supply (2.5 V – 6 V), typically 3.3 V or 5 V |
| SDA | I²C data line (open-drain), requires pull-up resistor to VCC. |
| SCL | I²C clock line (open-drain), requires pull-up resistor to VCC. |
| INT | Open-drain interrupt output (active LOW). Goes LOW when any input-configured pin (P0–P7) changes state; cleared by reading or writing the I/O ports. |
| P0 | Quasi-bidirectional I/O pin 0: can function as input (with internal pull-up) or output (driving LOW or HIGH as float). |
| P1 | Quasi-bidirectional I/O pin 1: same operation as P0. |
| P2 | Quasi-bidirectional I/O pin 2: same operation as P0. |
| P3 | Quasi-bidirectional I/O pin 3: same operation as P0. |
| P4 | Quasi-bidirectional I/O pin 4: same operation as P0. |
| P5 | Quasi-bidirectional I/O pin 5: same operation as P0. |
| P6 | Quasi-bidirectional I/O pin 6: same operation as P0. |
| P7 | Quasi-bidirectional I/O pin 7: same operation as P0; unused pins should be configured as outputs to prevent floating. |
Note: Unused P0–P7 pins should be configured as outputs (e.g., write LOW) to prevent floating inputs and reduce power consumption.
Applications
- Expanding GPIO for microcontrollers with limited I/O pins.
- Driving LEDs, relays, and other output devices.
- Reading inputs from switches, buttons, and sensors.
- Implementing keypad interfaces.
- Home automation systems.
- Industrial control and monitoring.
- Embedded systems requiring additional I/O.
- Battery-powered applications needing low standby current.
- Projects requiring multiple I/O expanders on a single I2C bus.
- Educational and prototyping platforms.
Package Contents
- 1x PCF8574 I2C I/O Expansion Module.
