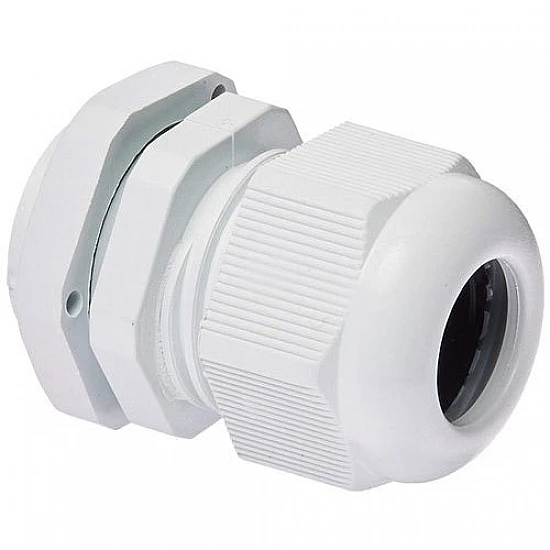

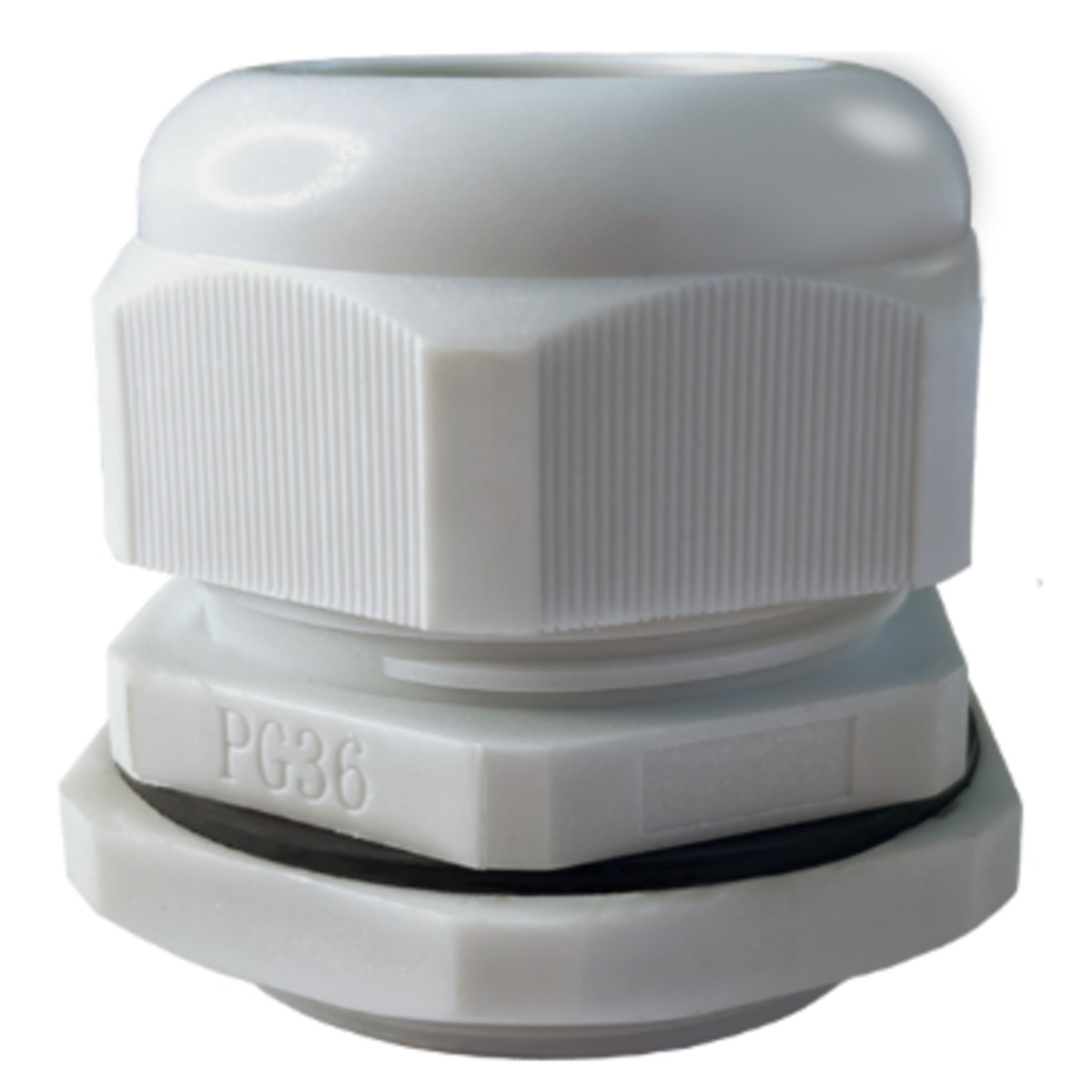

PG-36 Nylon Waterproof Cable Gland
The PG-36 Waterproof Cable Gland is designed to provide a secure and protected cable entry point for electrical enclosures and equipment. It helps firmly hold the cable in place while sealing the cable entry area against moisture, dust, and other external contaminants. The threaded PG36 design allows easy installation through a compatible mounting hole in electrical panels, junction boxes, distribution boxes, control cabinets, and industrial machinery.
According to the provided size data, this cable gland is suitable for cables with an outer diameter ranging from 22mm to 32mm. Its compression design helps secure the cable, reduce mechanical stress on cable connections, and protect the cable from damage around enclosure openings. It is suitable for power cables, control cables, and other large cable installations requiring organized and protected cable entry.
Features:
- Waterproof cable entry solution.
- Suitable for large-diameter cables.
- Securely holds cables in position.
- Helps seal cable entry points against moisture and dust.
- Helps reduce mechanical stress on cables.
- PG36 threaded design.
- Suitable for electrical and industrial enclosures.
- Simple threaded installation.
- Helps provide neat and organized cable management.
- Suitable for indoor and outdoor applications.
Specifications:
| Color | gray |

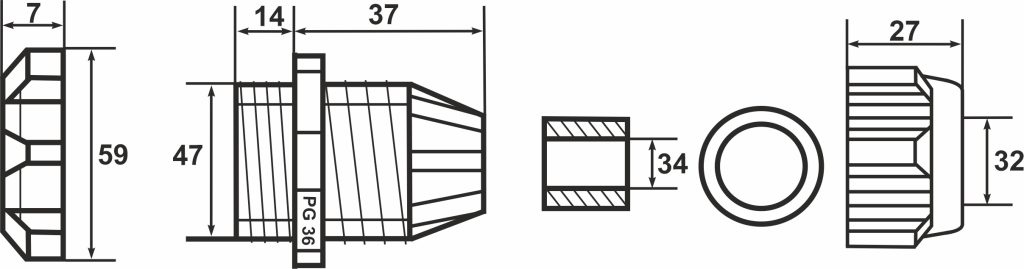

| Cable diameter range, mm | 22-32 |
| Body material | polyamide |
| Sealing material | oil-resistant rubber |
| Protection class | ІР68 |
| Altitude above sea level, m | 2000 |
| Operating temperature range, °C | -40…+60 |
| Storage temperature range, °C | -50…+70 |
Applications:
- Electrical control panels.
- Junction boxes.
- Distribution boxes.
- Electrical cabinets.
- Industrial machinery.
- Automation equipment.
- Outdoor electrical enclosures.
- Cable management systems.
- Power cable installations.
- Large control cable entry points.
Package Includes:
- 1 × PG-36 Nylon Waterproof Cable Gland.
