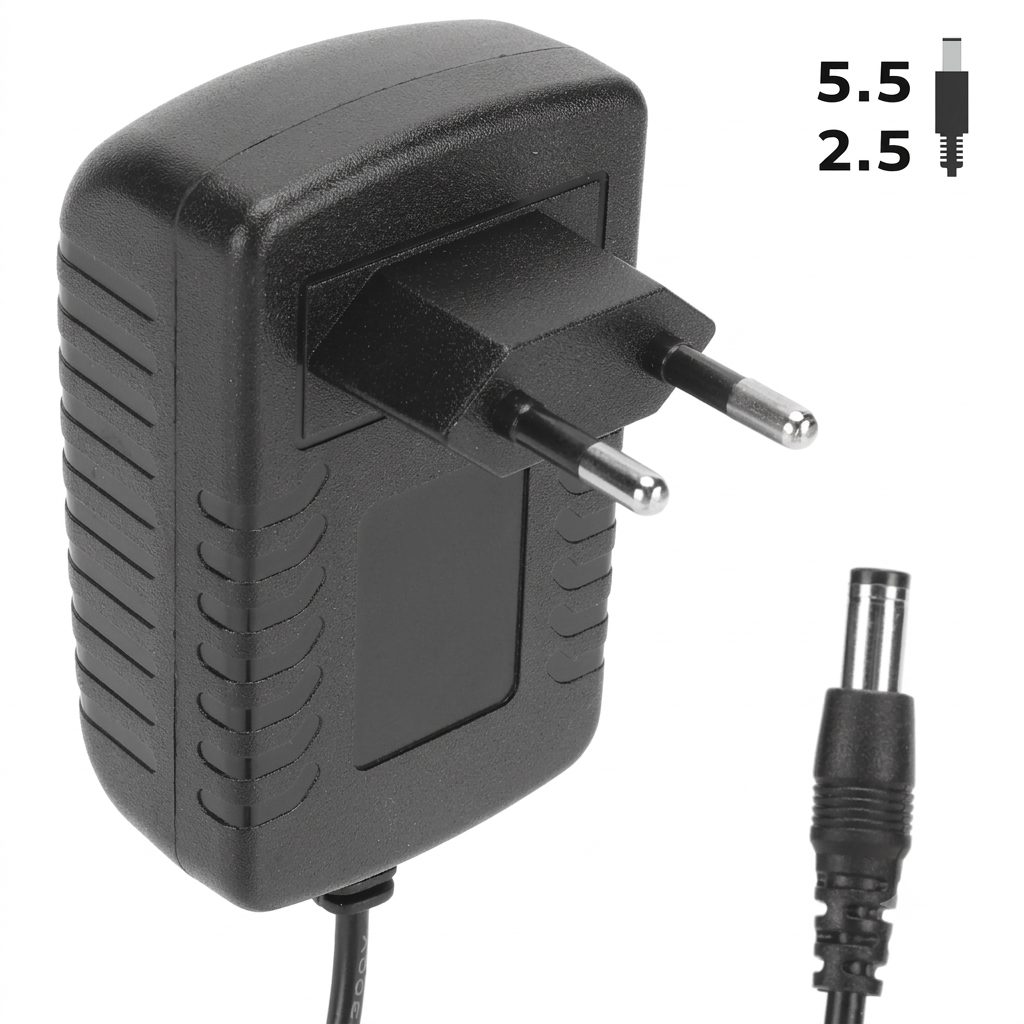

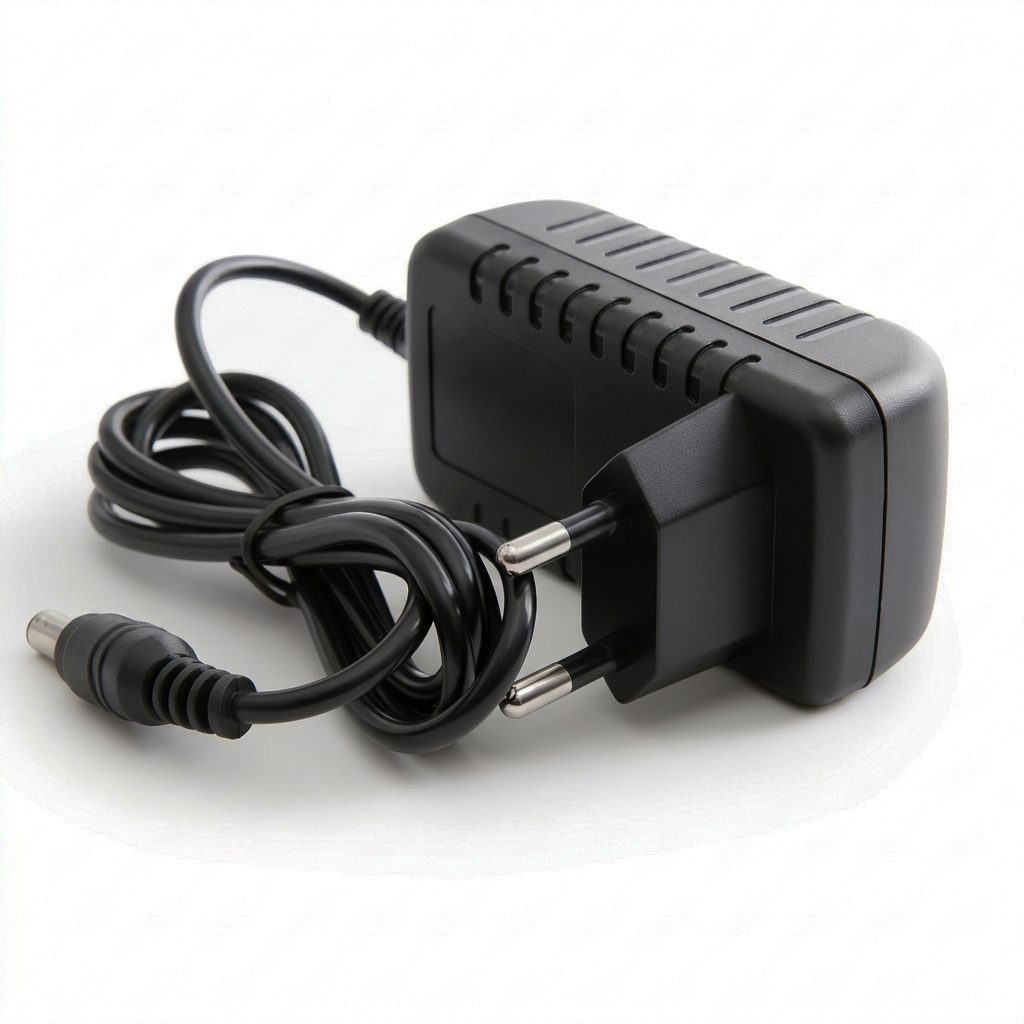

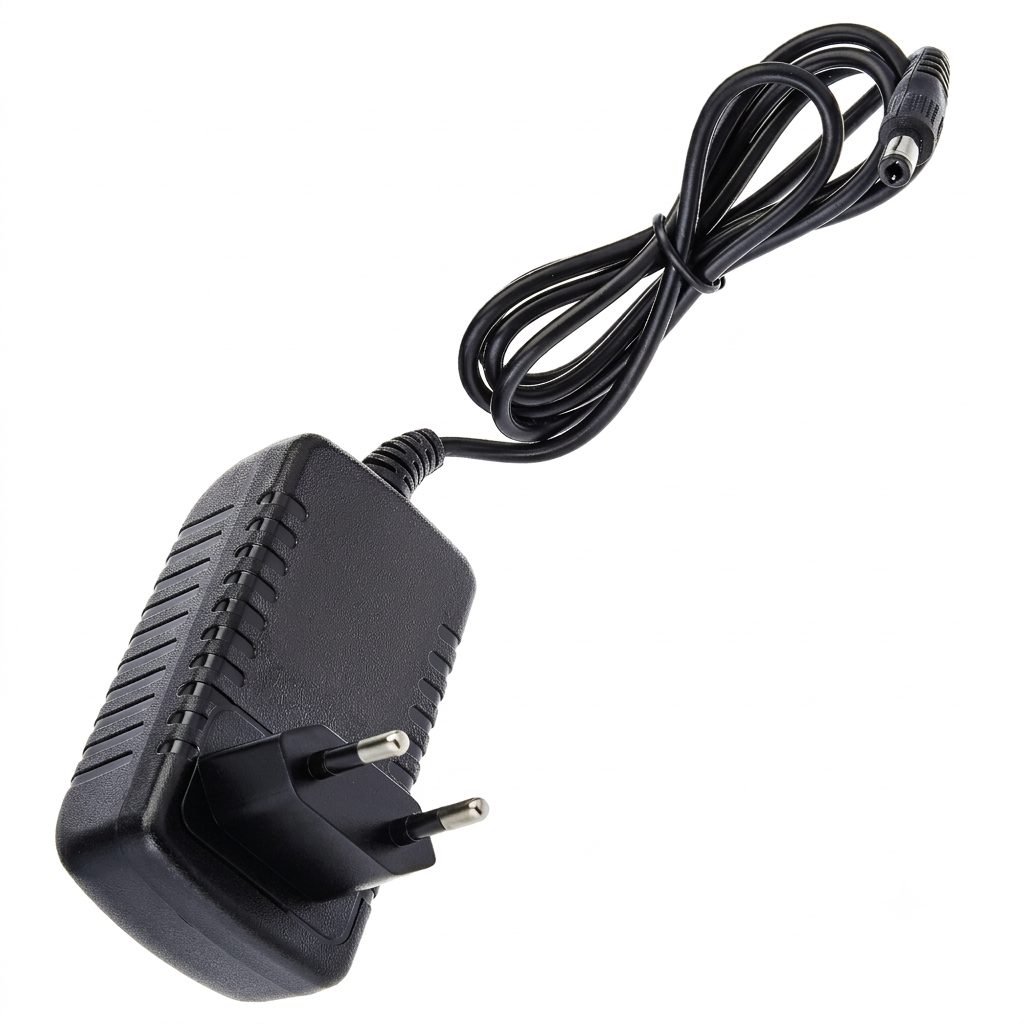

PH01201 Power Adapter 12V 1A High Quality with Single Jack 5.5×2.5mm
PH01201 Power Adapter 12V 1A High Quality with Single Jack 5.5×2.5mm provides efficient and stable power delivery for various electronic applications. It features a standard DC barrel connector, compact design, and dependable performance for everyday use. The adapter is suitable for devices requiring 12VDC input with up to 1A current.
Features
- Provides stable 12VDC output for reliable device operation.
- Supports up to 1A current supply for compatible electronic equipment.
- Equipped with a 5.5×2.5mm single DC jack connector.
- High-quality construction ensures durability and long service life.
- Compact and lightweight design for easy installation and portability.
- Provides safe and efficient power conversion from AC to DC.
- Suitable for a wide range of low-power electronic devices.
Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 100-240VAC |
| Input Frequency | 50/60Hz |
| Output Voltage | 12VDC |
| Output Current | 1A(Max) |
| Output Power | 12W |
| Connector Type | DC Barrel Plug |
| Plug Size | 5.5mm(Outer) × 2.5mm(Inner) |
| Polarity | Center Positive(+) |
| Regulation Type | Switching Power Supply |
| Efficiency | High Efficiency Design |

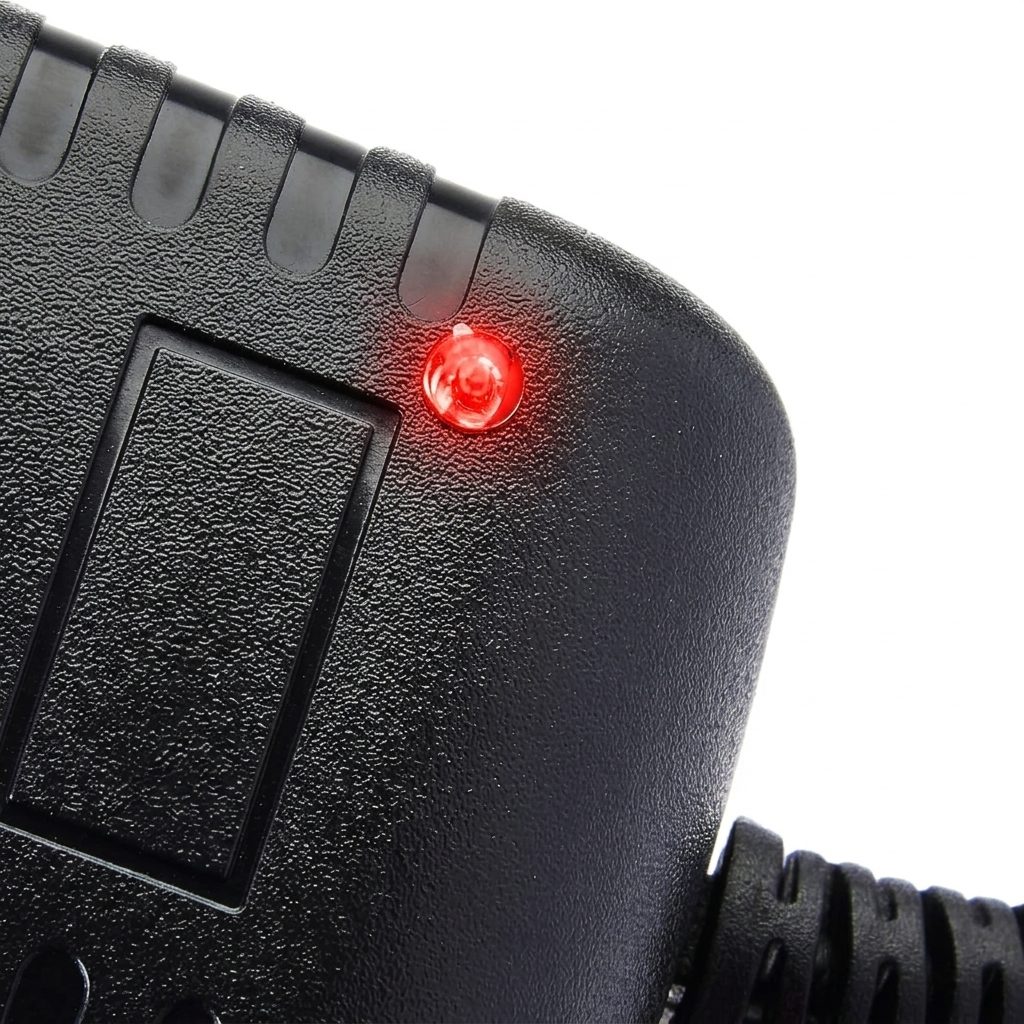

| LED Indicator | Red LED Indicates Adapter Operating Status |
| Cable Length | 1meter |
| Color | Black |
| Application | Electronic Devices And Projects |

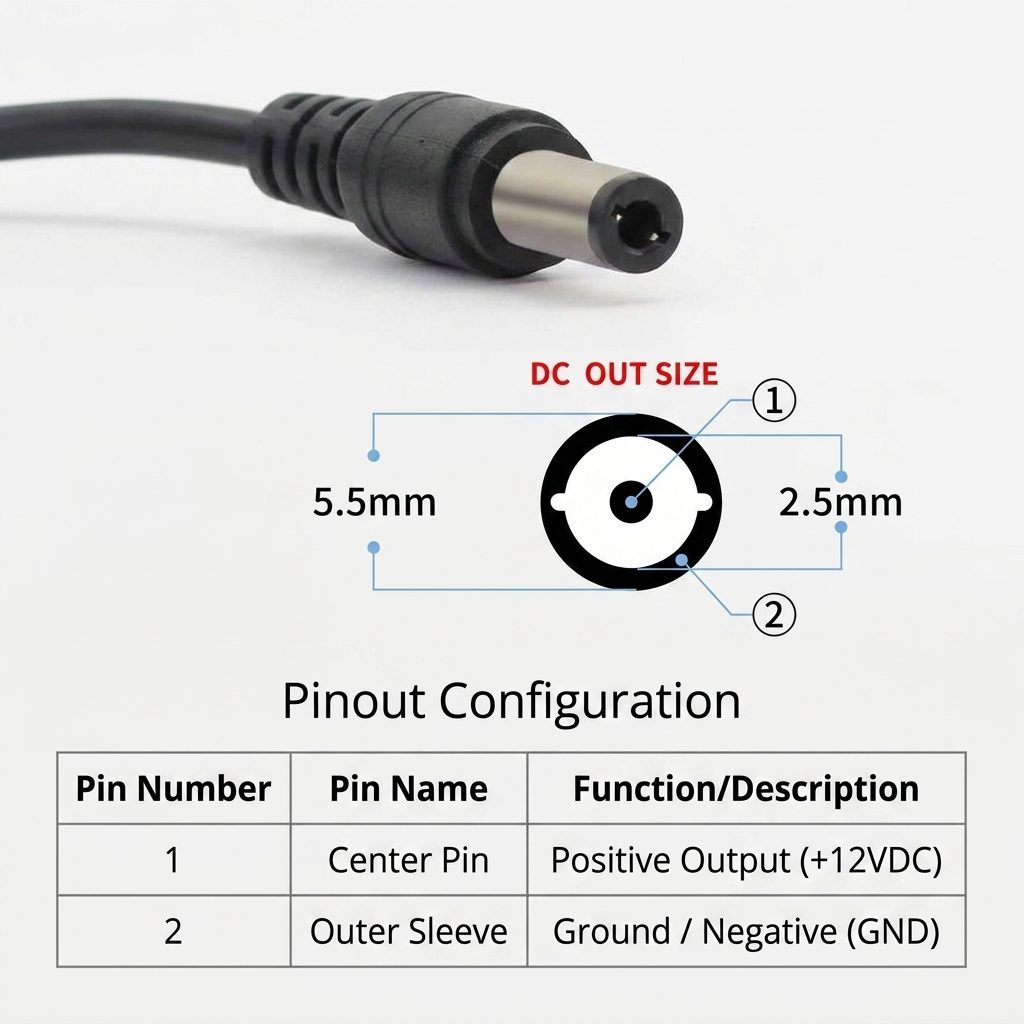

Pin Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | Inner Pin | Positive DC Output (+12VDC) |
| 2 | Outer Barrel | Negative DC Ground (GND) |

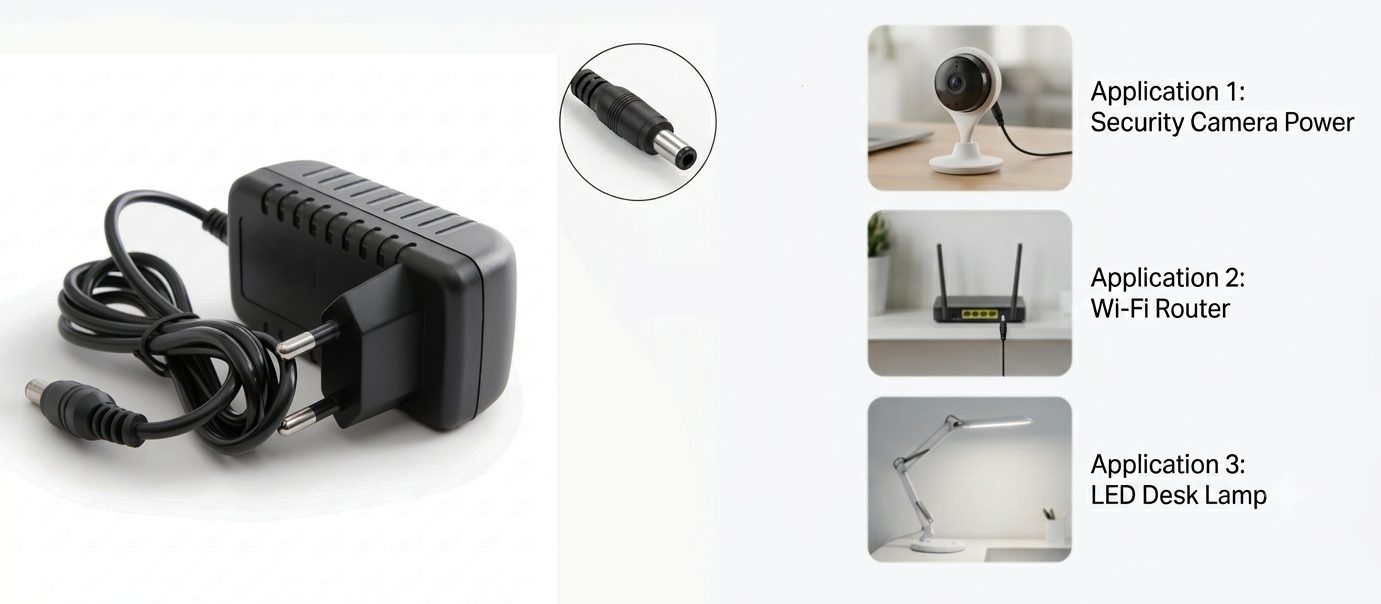

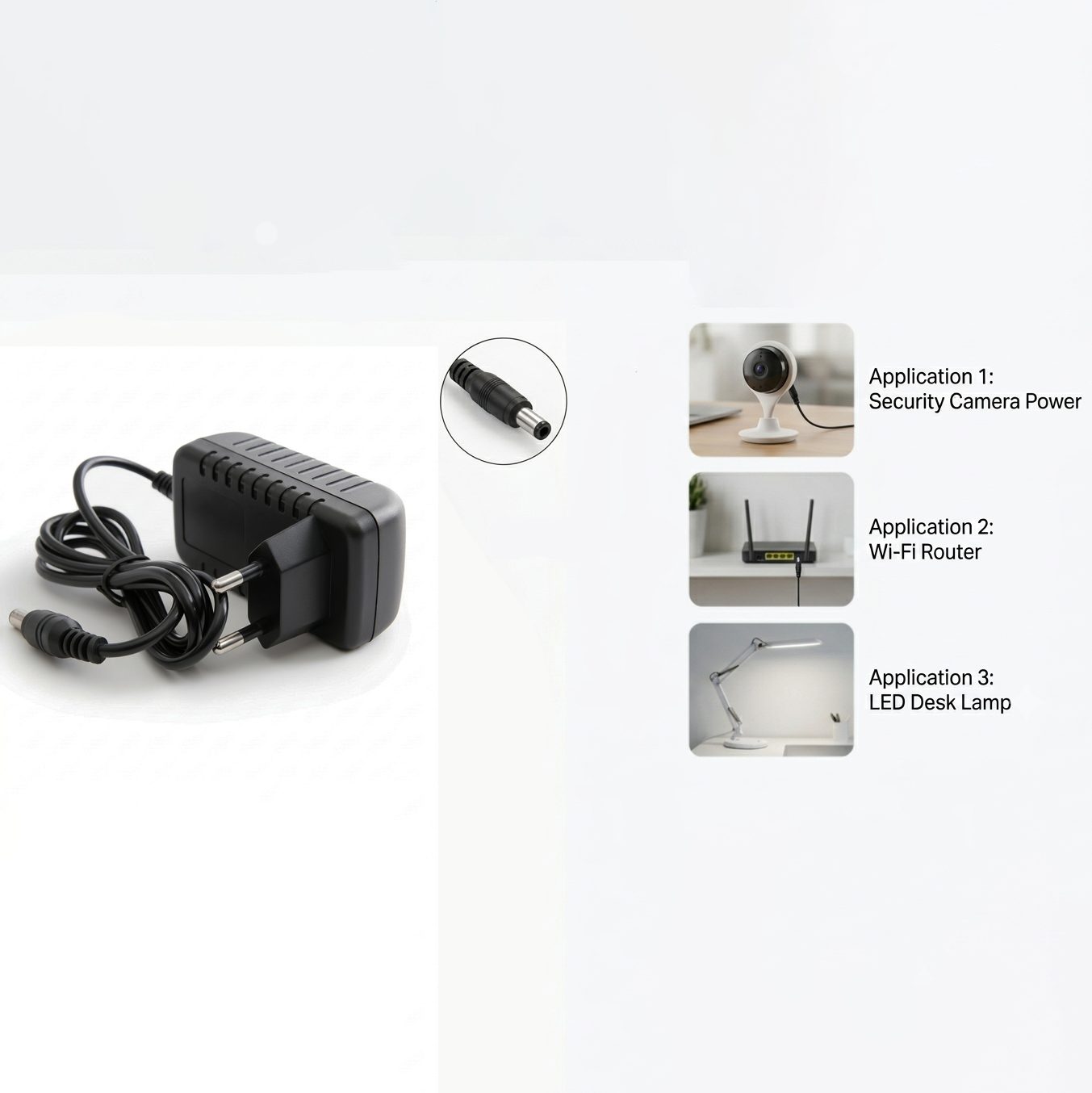

Applications
- CCTV cameras requiring 12VDC power input.
- LED lighting systems and strips.
- Routers, modems, and networking equipment.
- Small electronic circuits and development boards.
- Audio and video equipment.
- Sensors and control systems.
- DIY electronics projects.
- Other 12VDC compatible devices.
Package Contents
- 1 x PH01201 Power Adapter 12V 1A High Quality with Single Jack 5.5×2.5mm
