Specifications
| Attribute | Value |
| Family Name | PIC18F |

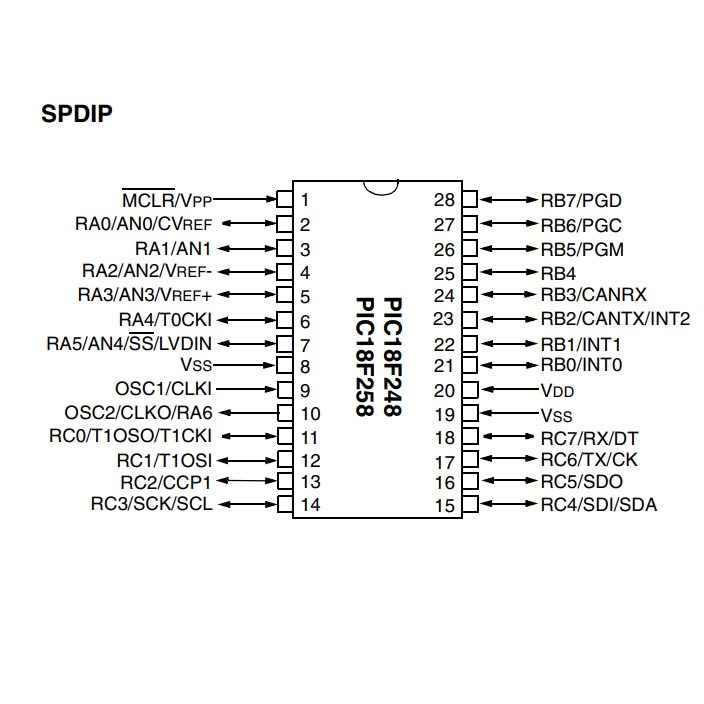

| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB, 256 B |
| Maximum Frequency | 40MHz |
| RAM Size | 768 B |
| USB Channels | 0 |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 1 |
| Number of CAN Channels | 1 |
| Number of USART Channels | 1 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 0 |
| Typical Operating Supply Voltage | 4.2 → 5.5 V |
| Number of PCI Channels | 0 |
| ADCs | 5 x 10 bit |
| Instruction Set Architecture | RISC |
| Length | 35.18mm |
| Number of Ethernet Channels | 0 |
| Pulse Width Modulation | 1 (10 bit) (CCP) |
| Number of LIN Channels | 0 |
| Height | 3.43mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 35.18 x 7.49 x 3.43mm |
| Number of ADC Units | 1 |
| Width | 7.49mm |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
