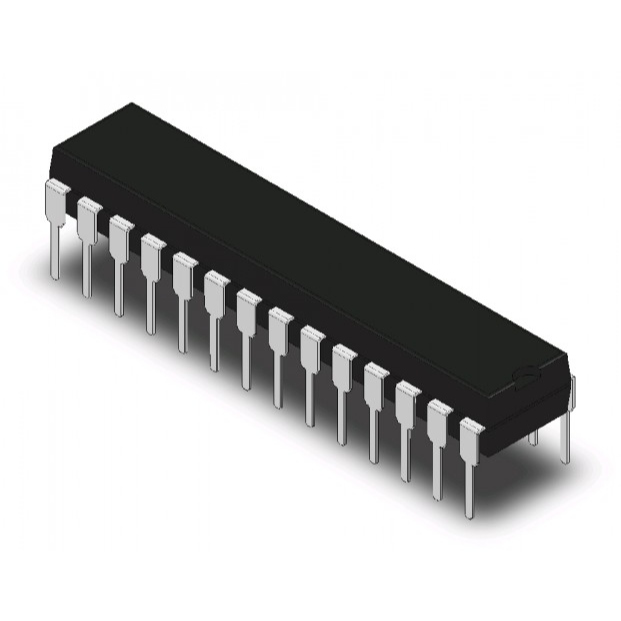

PIC18F2550 PIC 8 Bit Microcontrollers 48MHz 24 SPDIP-28 (ORIGINAL)
Original PIC18F2550 8-bit 48MHz Microcontroller with 32KB Flash, USB 2.0, 24 I/O pins, 10-bit ADC, and SPDIP-28 package for embedded projects.
975.00 EGP
Buy NowPIC18F2550 PIC 8 Bit Microcontrollers 48MHz 24 SPDIP-28 (ORIGINAL)
The PIC18F2550 PIC 8 Bit 48MHz 24 I/O SPDIP-28 Microcontroller (ORIGINAL) from Microchip Technology is a high-performance 8-bit MCU designed for embedded control and USB-enabled applications. Featuring 32KB Flash program memory, 2KB RAM, and 256 Bytes EEPROM, it delivers excellent performance while supporting a wide range of communication interfaces including USB 2.0 Full-Speed, UART, SPI, and I²C.
Features:
- Original Microchip PIC18F2550 microcontroller
- 8-bit PIC18 architecture
- Maximum operating speed of 48MHz
- 32KB Flash program memory
- 2KB RAM
- 256 Bytes EEPROM
- 24 programmable I/O pins
- Integrated USB 2.0 Full-Speed interface
- Supports UART/USART, SPI, and I²C communication
- Built-in 10-bit Analog-to-Digital Converter
- Multiple timers and PWM peripherals
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Microchip Technology. |
| Model | PIC18F2550-I/SP. |
| Architecture | 8-Bit PIC. |
| Core | PIC18 Enhanced. |
| Maximum Clock Frequency | 48MHz. |
| Program Memory | 32Kbytes Flash. |
| SRAM | 2Kbytes. |
| Data EEPROM | 256Bytes. |
| Flash Endurance | 100000 Cycles. |
| EEPROM Endurance | 1000000 Cycles. |
| Data Retention | >40Years. |
| USB Standard | USB2.0. |
| USB Speed | Low-Speed (1.5Mb/s), Full-Speed (12Mb/s). |
| USB Endpoints | 32 (16 Bidirectional). |
| USB RAM | 1Kbyte. |
| A/D Resolution | 10-Bit. |
| A/D Channels | 10. |
| CCP Modules | 2. |
| ECCP Modules | 1. |
| MSSP | SPI, I2C. |
| USART | Enhanced with LIN Support. |
| Comparators | 2. |
| Timers | 4 (Timer0-Timer3). |
| Hardware Multiplier | 8×8 Single-Cycle. |
| I/O Pins | 24. |
| Package | SPDIP-28. |
| Operating Voltage | 4.2V-5.5V. |
| Sleep Current | 0.1µA. |
| Idle Current | 5.8µA. |
| Sink/Source Current | 25mA/25mA. |
| Programming Interface | ICSP, ICD. |

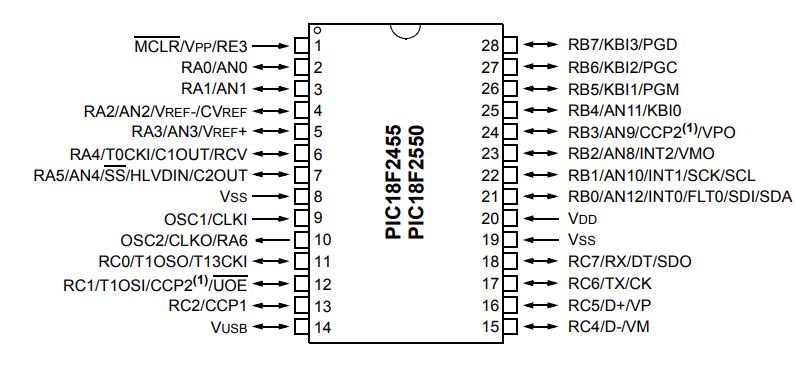

Pin Configuration:
Footprint:
Applications:
- USB human interface devices (HID) such as keyboards, mice, and game controllers.
- USB-to-serial and USB-to-I2C bridge converters.
- Industrial control systems with USB data logging and configuration.
- Consumer electronics with USB charging and communication.
- Medical devices requiring USB connectivity for data transfer.
- Smart card readers and security token devices.
- Audio devices with USB audio class support.
- Battery-powered portable instruments with USB charging.
- IoT edge nodes with USB host or device functionality.
- Educational and development platforms for USB firmware learning.
Package Include:
1x PIC18F2550 PIC 8 Bit 48MHz 24 SPDIP-28 Microcontrollers (ORIGINAL)
