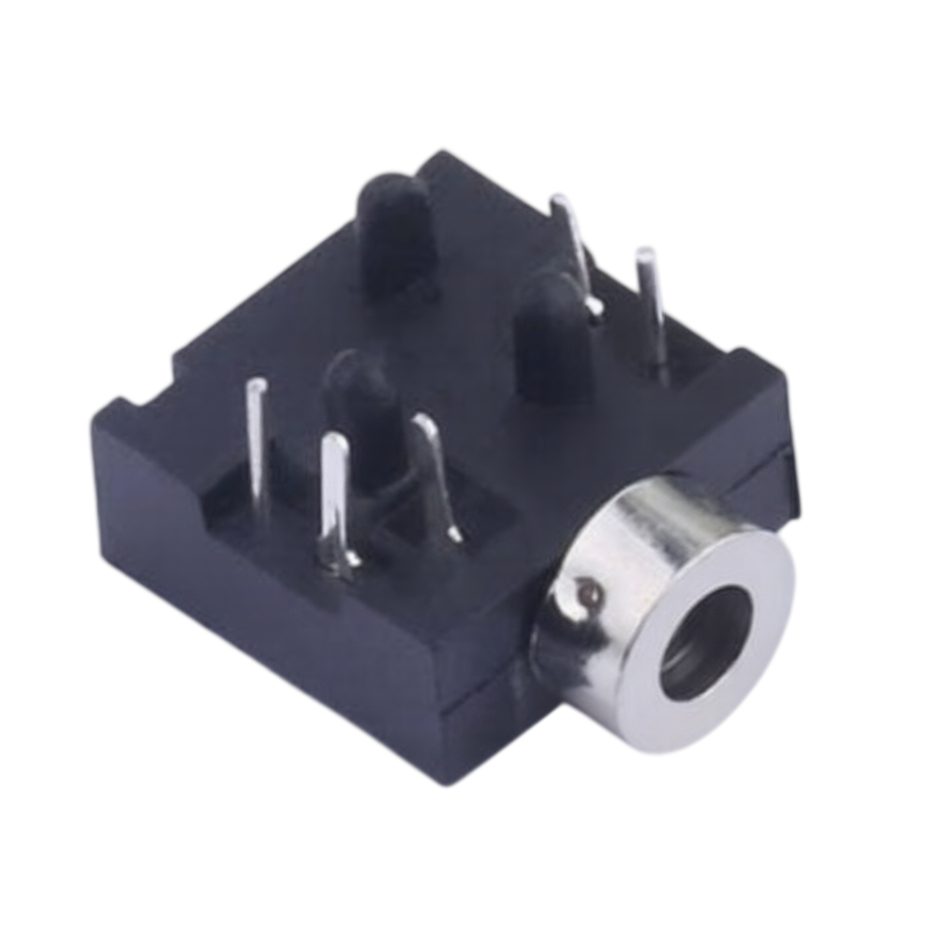

PJ-204 2.5mm Audio Jack Connector TH 5 Pin
The PJ-204 2.5mm Audio Jack Connector TH 5 Pin is a durable through-hole (TH) audio connector designed for PCB mounting. It provides a reliable interface for 2.5mm audio plugs and is widely used in communication equipment, portable electronics, embedded systems, and custom audio projects. The through-hole design offers excellent mechanical strength, making it suitable for products that experience frequent plug insertion and removal.
This connector features 5 terminals, allowing support for stereo audio connections as well as switch contacts used for plug detection or automatic signal routing. It is ideal for hobbyists, repair technicians, and manufacturers who require a dependable PCB-mounted audio connector for audio input, output, or headset interfaces.
Features:
- Standard 2.5mm audio jack connector.
- Through-hole PCB mounting design.
- Durable mechanical construction.
- Reliable electrical contact.
- Supports repeated plug insertion and removal.
- Suitable for stereo audio applications.
- Includes switching contacts for plug detection.
- Easy to solder onto printed circuit boards.
- Compact footprint for space-saving designs.
- Suitable for consumer and industrial electronics.
Specifications:
| Specification | Value |
|---|---|
| Product Name | PJ-204 Audio Jack Connector |
| Connector Type | Audio Jack Socket |
| Jack Size | 2.5mm |
| Mounting Type | Through-Hole (TH) |
| Number of Pins | 5 Pins |
| Contact Configuration | Stereo with Switching Contacts |
| Mounting Style | PCB Mount |
| Body Material | Plastic |
| Contact Material | Metal Alloy |
| Connector Gender | Female |
Pinout:

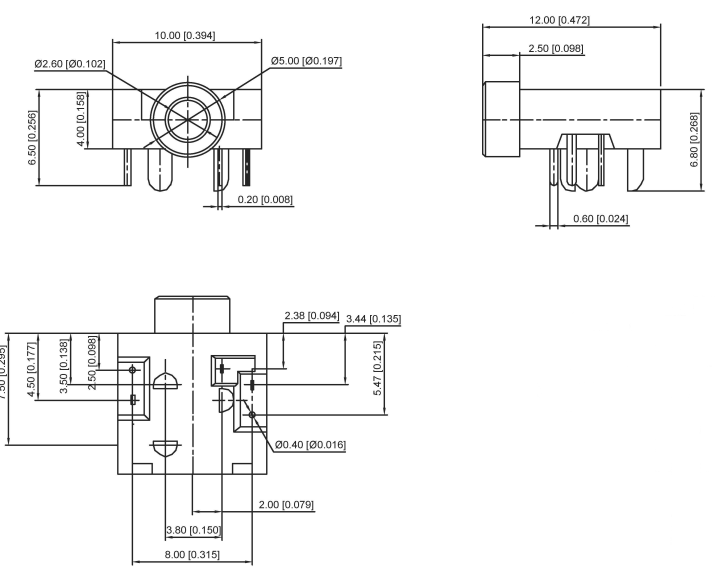

Footprint:
Applications:
- Audio equipment.
- Headphone connections.
- Communication devices.
- Portable electronic products.
- Embedded systems.
- DIY audio projects.
- Intercom systems.
- Audio amplifiers.
- Instrumentation equipment.
- PCB repair and replacement.
Package Includes:
- 1 × PJ-204 2.5mm Audio Jack Connector TH 5 Pin.
