Polyester Capacitor 1.5µF 400V Pitch 20mm
Polyester Capacitor 1.5µF 400V Pitch 20mm is a high-quality radial film capacitor designed for reliable performance in filtering, coupling, bypassing, timing, and DC blocking applications. With a capacitance of 1.5µF, a rated voltage of 400V, and a compact epoxy-coated rectangular package, it offers excellent electrical stability, low dielectric loss, and long service life. Its 20mm lead pitch allows easy through-hole PCB mounting, making it suitable for power supplies, audio equipment, industrial electronics, lighting circuits, and general electronic designs.
Features
- High capacitance of 1.5µF.
- Rated operating voltage of 400V.
- Polyester film dielectric for stable electrical performance.
- Low dielectric loss and excellent insulation resistance.
- Non-polarized construction for easy installation.
- Compact epoxy-coated rectangular package.
- Through-hole radial lead design.
- High reliability and long operational life.
- Suitable for high-voltage electronic circuits.
- Ideal for filtering, coupling, and DC blocking applications.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Polyester Capacitor |
| Capacitance | 1.5µF |
| Rated Voltage | 400V |
| Capacitor Type | Non Polarized |
| Dielectric Material | Polyester Film |
| Mounting Type | Through Hole |
| Lead Style | Radial |
| Lead Pitch | 20mm |
| Body Width | 21mm |
| Body Height | 12.5mm |
| Body Thickness | 6.5mm |
| Package Shape | Rectangular Epoxy Case |
| Dissipation Factor | ≤0.1% |
| Insulation Resistance | ≥10,000MΩ·µF |
| Operating Temperature | -40°C to +105°C |
| Application | Filtering Coupling Bypassing DC Blocking |

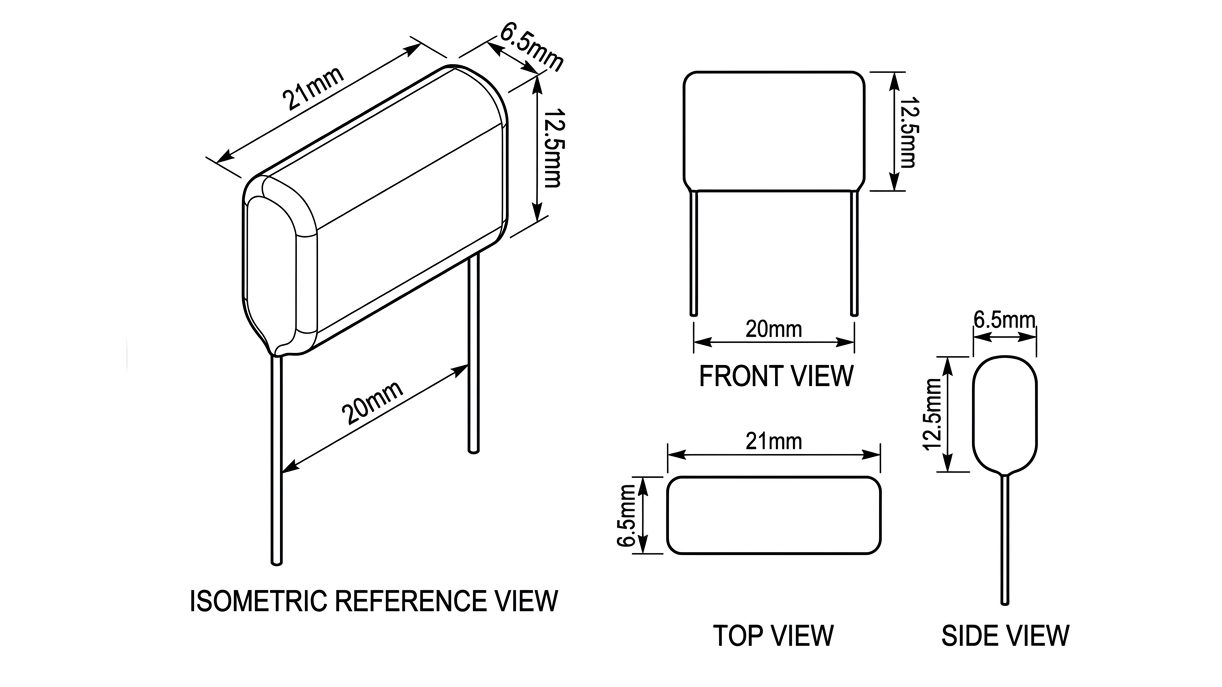

Dimensions
Pinout Diagram
Footprint
Applications
- AC filtering circuits.
- DC blocking circuits.
- Signal coupling circuits.
- Power supply filtering.
- Snubber circuits.
- Timing circuits.
- Audio crossover networks.
- Motor control circuits.
- Industrial electronic equipment.
- Consumer electronic products.
- LED driver circuits.
- General-purpose PCB designs.
Package Contents
- 1 x Polyester Capacitor 1.5µF 400V Pitch 20mm
