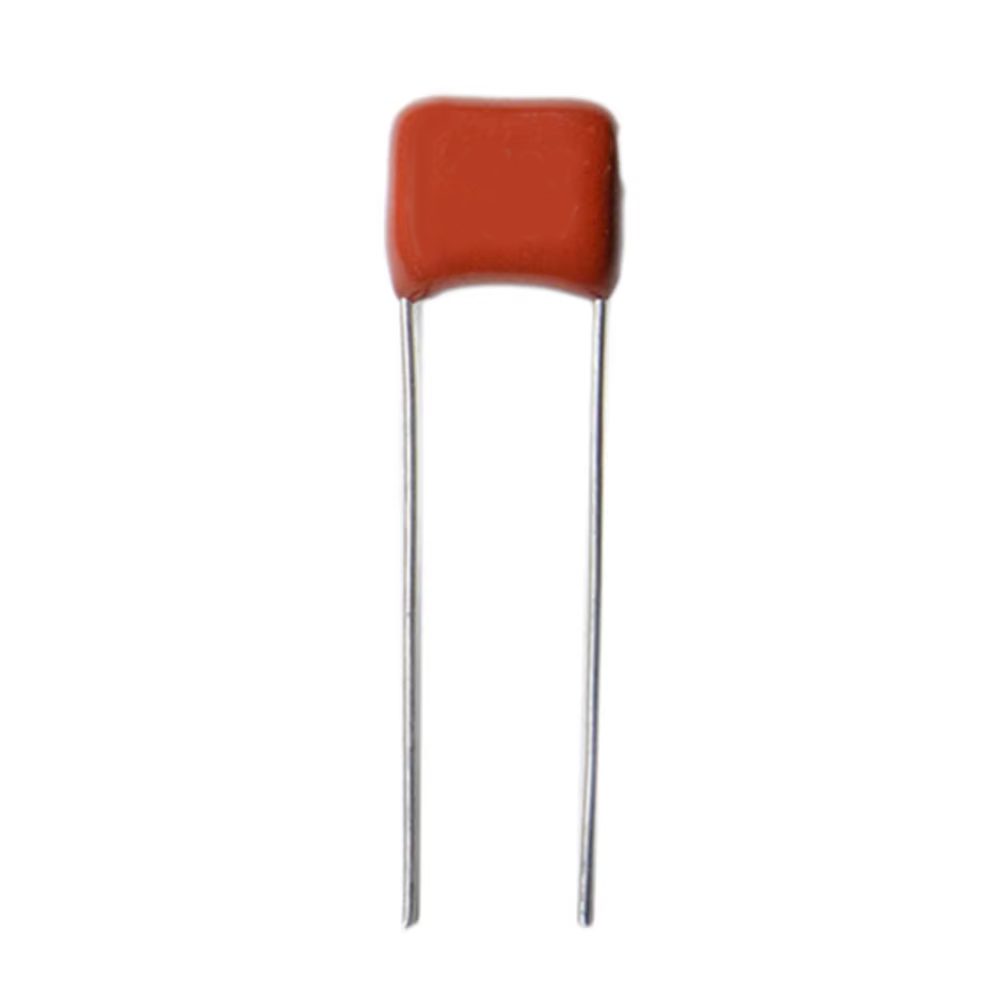

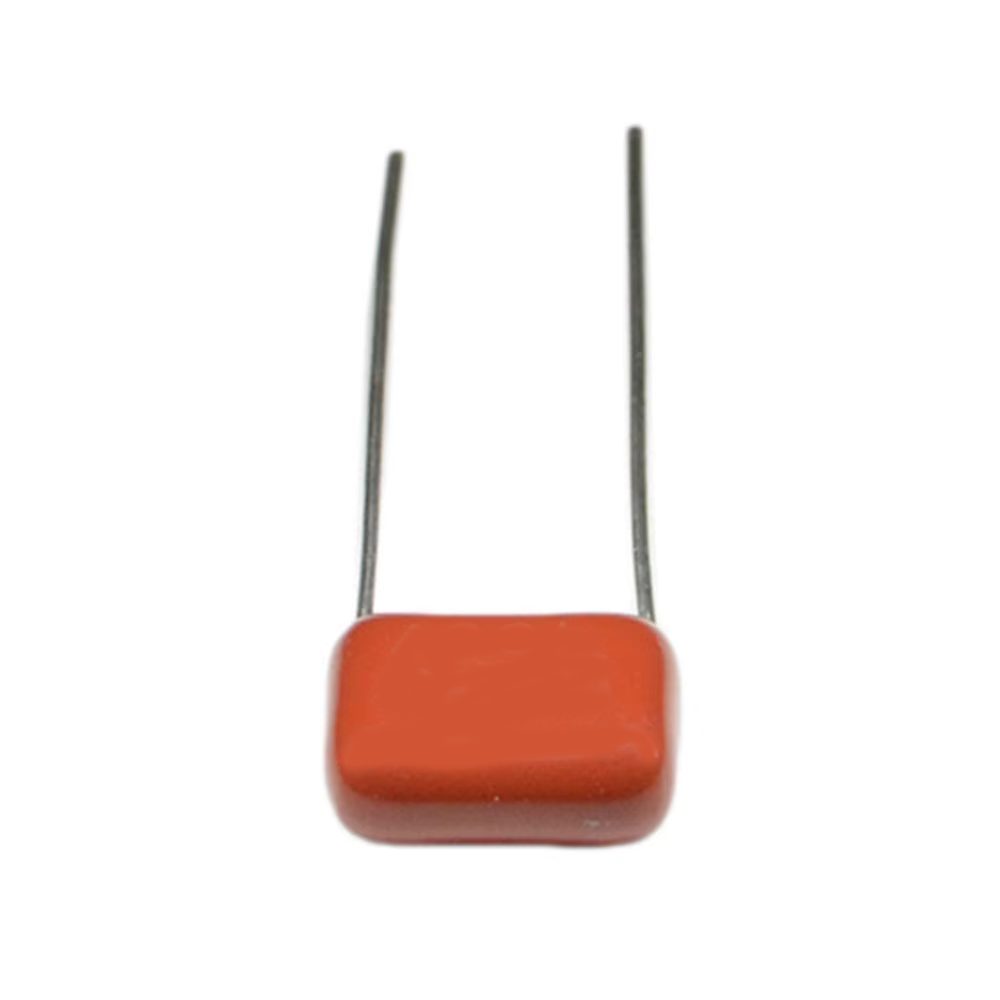

Polyester Capacitor 22nF 50V
The Polyester Capacitor 22nF 50V is a compact, reliable, and cost-effective film capacitor designed for use in general electronic circuits. It features a stable polyester dielectric that provides consistent capacitance over a wide range of temperatures and frequencies. With a capacitance value of 22 nano-farads and a voltage rating of 50V, this capacitor is ideal for coupling, decoupling, filtering, and timing applications. Its low ESR and good insulation resistance ensure dependable performance, while its lightweight, non-polarized design allows easy integration into various PCB layouts. Suitable for consumer electronics, audio equipment, and industrial control circuits, it delivers long-lasting and stable operation.
Features
- Capacitance value: 22nF for versatile circuit applications.
- Rated voltage: 50V for low to medium voltage designs.
- Polyester (Mylar) dielectric for stable performance.
- Non-polarized design for easy circuit integration.
- Good insulation resistance and low dielectric absorption.
- Compact and lightweight for space-saving PCB mounting.
- Reliable operation over a wide temperature range.
- Suitable for coupling, decoupling, filtering, and timing circuits.
Specifications
| Parameter | Value |
| Category | Polyester Capacitor |
| Datasheet | Polyester Capacitor 22nF 50V |
| Capacitance | 22nF (0.022µF) |
| Rated Voltage | 50VDC |
| Dielectric Material | Polyester |
| Tolerance | ±5% to ±10% |
| Operating Temperature | -40°C to +85°C |
| Dielectric Type | Film |
| Mounting Type | Through Hole |
| Insulation Resistance | ≥30,000 MΩ·µF |
| ESR (Equivalent Series Resistance) | Low |
| Lead Spacing | 3.5mm-5mm |
Applications
- Power supply filtering and decoupling.
- Signal coupling and bypass in audio and RF circuits.
- Noise suppression in digital and analog devices.
- Timing and oscillator circuits.
- Smoothing in DC-DC converters and regulators.
- Energy storage for transient load changes.
- Filtering in communication and measurement equipment.
- General-purpose use in consumer electronics, industrial controls, and automotive systems.
Package Contents
- 1 X Polyester Capacitor 22nF 50V
