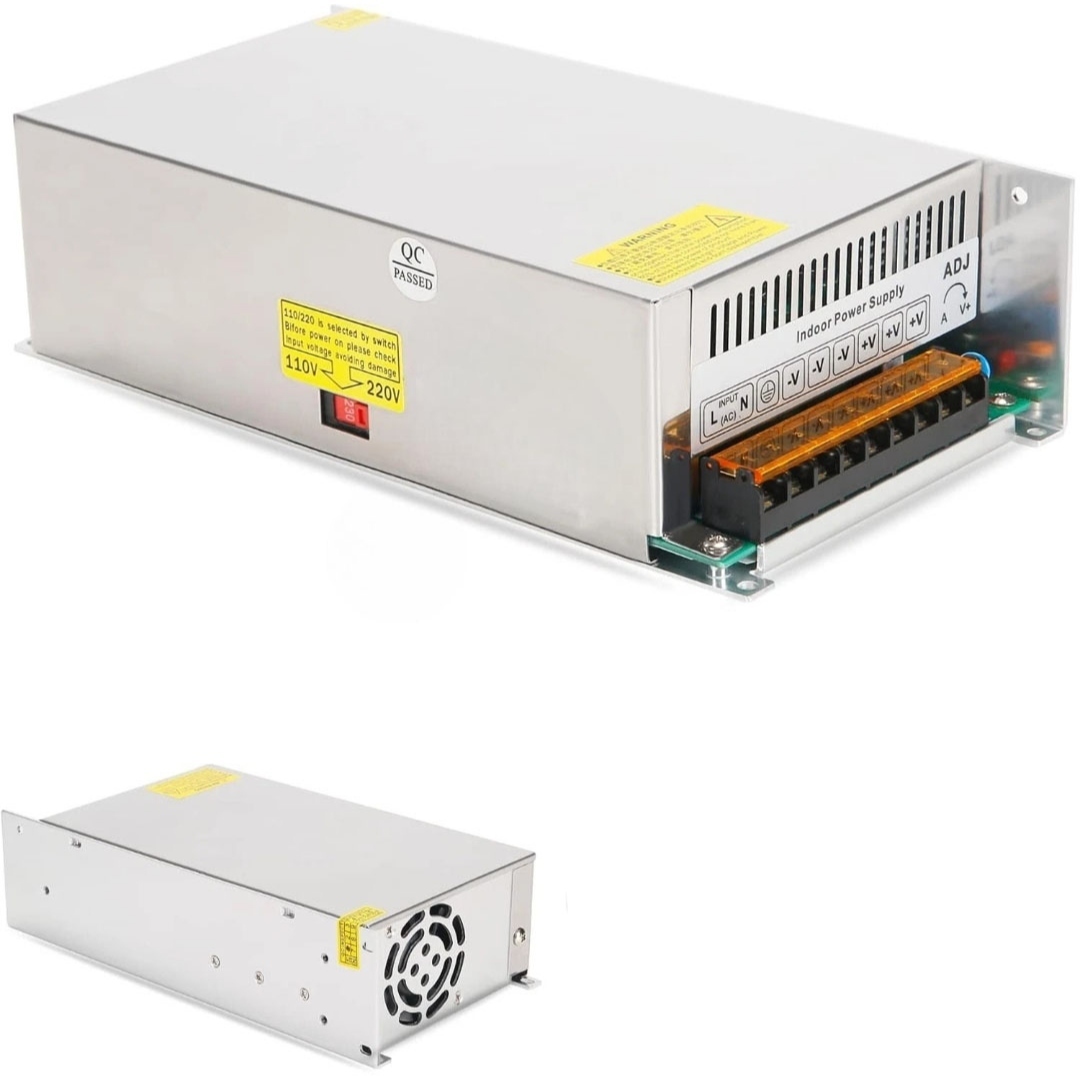

Power Supply 12V 100A
The Power Supply 12V 100A 1200W Switching (S-1200-12 Type) is a high-performance AC to DC converter designed for demanding applications requiring high current and stable voltage output. Delivering a regulated 12V DC output with a maximum current of 100A, this unit provides up to 1200W of continuous power, making it ideal for industrial systems, LED installations, and automation equipment.
Features:
- High output power of 1200W with stable 12V DC output.
- Maximum output current up to 100A.
- Dual input voltage 110V/220VAC selectable via switch.
- Built-in cooling fan for efficient thermal management.
- Adjustable output voltage (±10%) for precision control.
Specifications:
| Parameter | Value |
|---|---|
| Model Type | S-1200-12 |
| Output Voltage | 12VDC |
| Output Current | 100A |
| Output Power | 1200W |
| Input Voltage | 110/220VAC Switch Selectable |
| Input Voltage Range | 90-132VAC / 176-264VAC |
| Input Frequency | 47-63Hz |
| Voltage Adjustment Range | ±10% |
| Efficiency | Up to83% |
| Ripple & Noise | ≤120mVp-p |
| Overload Protection | 105%-140% Auto Recovery |
| Overvoltage Protection | 115%-150% |
| Cooling Method | Fan Cooling |
| Operating Temperature | -20°Cto+60°C |
| Dimensions (L×W×H) | 240×125×65mm |
Configuration:
Applications:
- LED lighting and large signage systems.
- CCTV and security installations.
- Industrial automation and control systems.
- CNC machines and robotics.
- Telecommunications equipment.
- High-power DC systems and battery charging.
Package Include:
1x Power Supply 12V 100A 1200W (S-1200-12 Type).
