Power Supply 12V 50A

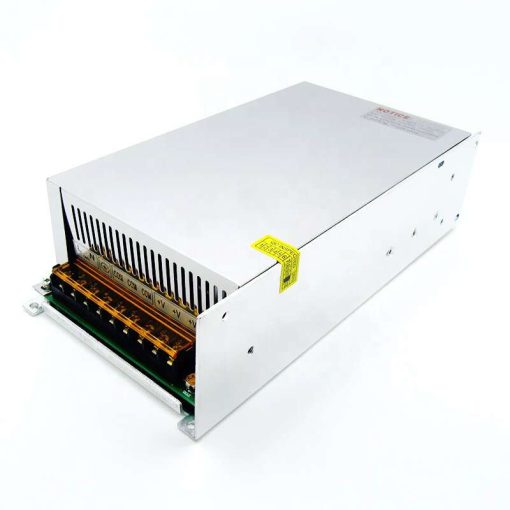

The Power Supply 12V 50A is a robust and reliable enclosed switching power supply designed to deliver consistent and stable DC output for high-current applications. With a total output power of 600W, it provides a regulated 12VDC output at up to 50A, making it suitable for powering demanding electronic systems such as LED lighting arrays, CNC machines, and industrial automation equipment.
Features:
- High output power up to 600W.
- Stable 12VDC output with up to 50A current.
- Wide input voltage range of 110/220VAC ±15%, 50/60Hz.
- Built-in cooling fan for efficient heat dissipation.
- Adjustable output voltage via V ADJ control.
Specifications:
| Parameter | Value |
|---|---|
| Model | S-600-12 |
| Input Voltage | 110/220VAC±15% |
| Input Frequency | 50/60Hz |
| Output Voltage | 12VDC |
| Output Current | 50A |
| Output Power | 600W |
| Voltage Adjustment Range | ±10% |
| Efficiency | ≥85% |
| Cooling Method | Fan cooling |
| Protection | Overload, Over voltage |
| Dimensions (L×W×H) | 241×125×67mm |
Applications:
- LED strips and display systems.
- CCTV and security systems.
- CNC machines and 3D printers.
- Industrial automation systems.
- Communication equipment.
- DC motor and robotics systems.
- Battery charging applications.
Package Include:
1x Power-Supply 12V 50A.
