RAA2230214GSP#HA1 SOIC-7 AC/DC Switching Buck Regulator with Ultra-low Standby Power SMD IC
The RAA2230214GSP#HA1 SOIC-7 AC/DC Switching Buck Regulator with Ultra-low Standby Power SMD IC is an advanced integrated circuit designed for non-isolated offline power conversion applications. It incorporates a high-voltage 700V MOSFET, enabling efficient buck topology operation directly from universal AC mains input. This device excels in delivering regulated DC output with minimal standby power consumption, making it suitable for energy-efficient designs in IoT, appliances, and industrial systems.
Features:
- Integrated 700V MOSFET for direct AC mains operation.
- Ultra-low standby power consumption below 20mW.
- Low quiescent current under 80µA.
- Programmable PFM for optimized light-load efficiency.
- Frequency dithering for reduced EMI.
Specifications:
| Parameter | Value |
|---|---|
| Topology | Buck |
| Input Voltage | 85VAC to 265VAC |
| Output Power | 8W |
| Standby Power | <20mW |
| Switching Frequency | 43kHz |
| Start-Up Voltage | 5.9V |
| Supply Voltage | 6.5V |
| Breakdown Voltage | 700V |
| Operating Temperature | -40°C to +85°C |
| Package | SOIC-7 |

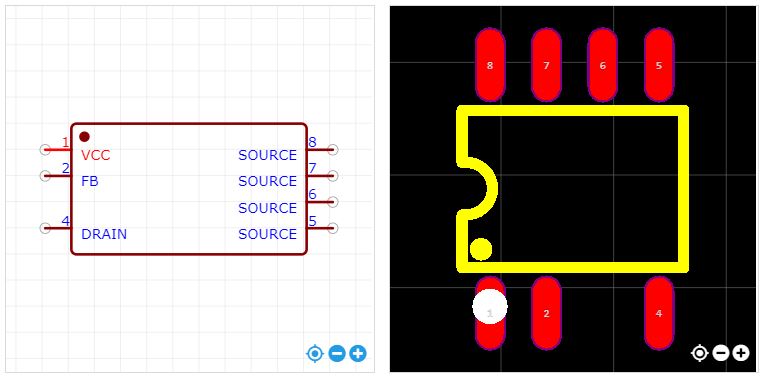

Pin Configuration:
Foot print:
Applications:
- Home appliances such as rice cookers, coffee makers, and washing machines.
- Smart home devices, IoT sensors, and smoke alarms.
- Industrial controls and metering systems.
- Auxiliary and bias power supplies for high-power systems.
- White goods and consumer electronics.
Package Include:
1x RAA2230214GSP#HA1 SOIC-7 AC/DC Switching Buck Regulator with Ultra-low Standby Power SMD IC
