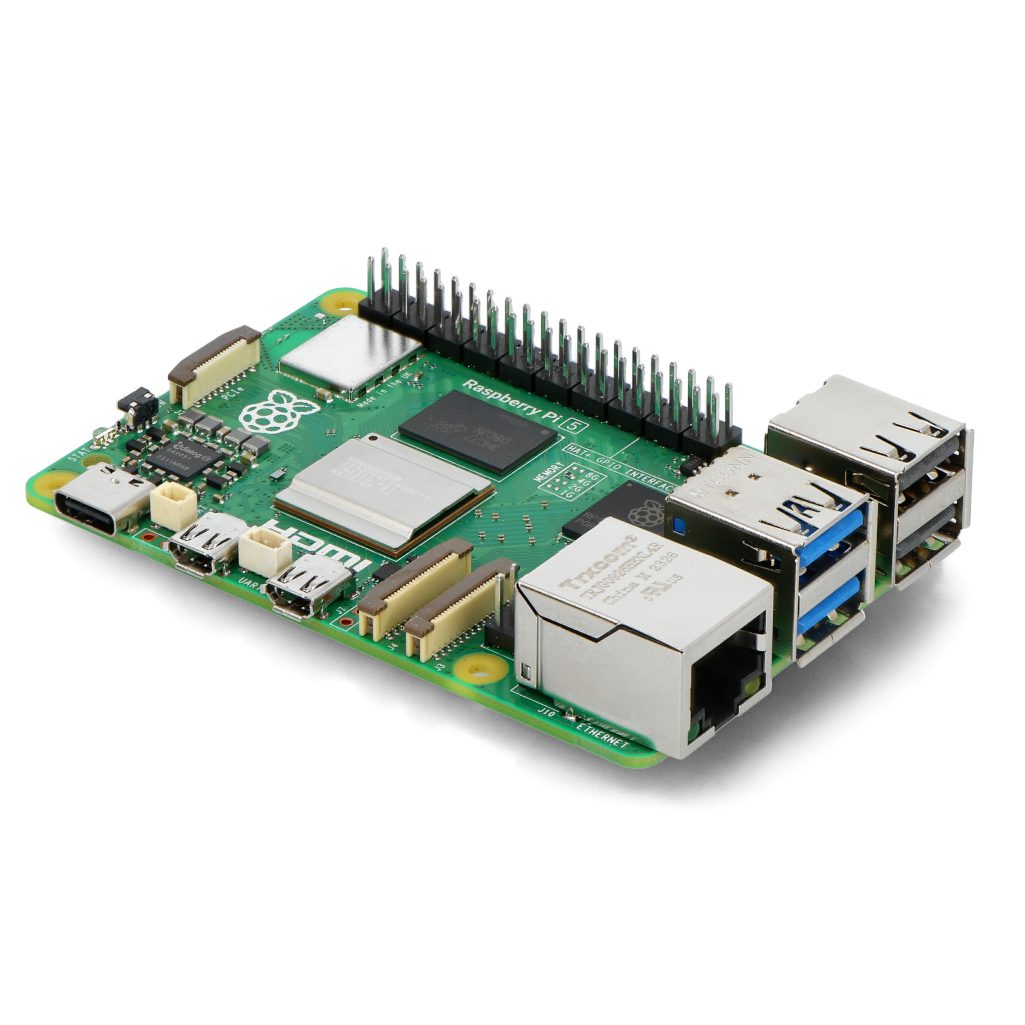

Raspberry Pi 5 Computer Model B – 4GB RAM – Made in UK
The Raspberry Pi 5 Computer Model B – 4GB RAM – Made in UK is powered by a quad-core Broadcom BCM2712 ARM Cortex-A76 64-bit processor clocked at 2.4 GHz, which is 2-3 times more efficient than its predecessor in Raspberry Pi 4. The fifth edition of this iconic series includes two micro HDMI connectors, two USB 3.0 ports, two USB 2.0 and a USB C power connector. The device is also equipped with two interfaces for a camera and a MIPI DSI/CSI display, a PCI Express 2.0 connector, and space for a fan. , UART connector, space for the RTC battery, and a dedicated power button. The Raspberry Pi 5 also has dual-band WiFi (2.4 GHz and 5 GHz), Bluetooth 5 BLE, and a fast 1000 Mb/h Ethernet port with the option of powering via PoE using the PoE+ HAT overlay. The board retains the standard 40-pin GPIO connector (2×20 pin, 2.54 mm pitch) and a slot for a microSD memory card with the operating system. Additionally, next to the typical mounting holes, there are holes intended for installing an official radiator with a fan.
Features:
- Quad-core ARM Cortex-A76 processor (higher performance than Pi 4).
- 4GB LPDDR4X RAM.
- Dual 4K display support via micro-HDMI.
- Improved USB and I/O performance.
- PCIe interface for high-speed expansion.
- Gigabit Ethernet and wireless connectivity.
- Bluetooth support.
- 40-pin GPIO header (backward compatible).
- Camera and display interfaces (CSI/DSI).
- Enhanced power management and efficiency.
Specifications:
| BASIC INFORMATION | |
| Model | Raspberry Pi 5 |
| TECHNICAL SPECIFICATIONS | |
| Processor chipset | Broadcom BCM2712 64-bit |
| Core | Quad-Core ARM Cortex-A76 |
| Operating Systems | Raspberry Pi OS |
| Timing | 2.4GHz |
| Architecture | ARMv8-A |
| RAM | 4GB LPDDR4 |
| Memory | microSD card |
| GPIO socket | 40-pin connector (2×20 pin) 2.54 mm raster |
| Power supply | · 5.0V/5A via USB C· 5V via GPIO· PoE using additional overlay |
| Plate dimensions | 85 x 56 x 17 mm |
| INTERFACES | |
| USB interface | 2x USB 2.0 – type A socket 2x USB 3.0 – type A socket |
| Network interface | Ethernet port 100/1000 Mbps |
| WiFi interface | Dual Band 2.4 GHz and 5 GHz 802.11 b/g/n/ac |
| Bluetooth | Low Energy, BLE 5 |
| Camera | 2x 4-line MIPI CSI/DSI slot |
| Touch display | 2x 4-line MIPI CSI/DSI slot |
| Video | 2 x micro HDMI H.265 4K 60 fps H.264 1080p 30 fps OpenGLES 1.1, 2.0, 3.0 |
| Communication | UART, SPI, I2C, GPIO |
Pinout:
Layout of components in Raspberry Pi 5
Layout and Description of components on the Raspberry Pi 5 board
- Model designation
- Broadcom BCM2712 processor
- PCI Express 2.0 interface
- ON/OFF button
- Power management system
- Active cooling/radiator mounting holes
- RTC battery connector
- UART connector
- Raspberry Pi RP1 I/O controller
- Fan connector
- Ethernet and USB ports (inverted from Raspberry Pi 4)
- PoE HAT connector
- 2x 4-line MIPI DSI/CSI connectors
Changes in Raspberry Pi 5
| CHARACTERISTIC | DESCRIPTION |
|---|---|
| Several versions | Raspberry Pi 5 is available in the amount of RAM: 4 GB. |
| BCM2712 processor | The Broadcom BMC2712 Quad-Core ARM Cortex-A76 64-bit chip clocked at 2.4 GHz is 60% faster than its predecessor. |
| PCIe 2.0 connector | The fifth version of Raspberry Pi is equipped with a fast PCI Express 2.0 connector, allowing you to connect peripherals with fast data transfer. |
| RTC battery connector | A dedicated connector allows you to connect a real-time battery (RTC) to maintain the current date and time. |
| UART connector | There is a UART connector on the board to which you can connect a debugger. |
| Two CSI/DSI connectors | Raspberry Pi 5 is equipped with two 4-line MIPI CSI / DSI connectors in the mini 22-pin format in a 0.5 mm pitch, to which you can connect a camera and a display or two cameras / two displays. |
| ON/OFF button | The Raspberry Pi minicomputer can now be turned on/off using the power button. The button can also be used to wake the Raspberry from deep sleep mode. Holding the button for a long time cuts off the power to the minicomputer. |
| Raspberry Pi RP1 chip | The RP1 chip was designed specifically by the Raspberry Pi Foundation to support I/O interfaces, relieving the minicomputer’s main processor, and making Raspberry Pi 5 significantly more efficient than its older predecessors. |
| Layout of joints | The outline of the board remains the same as in previous versions, but the layout of the interfaces has changed. |
Raspberry Pi 5 without an audio connector.
Interfaces in Raspberry Pi 5.
Raspberry Pi 5 GPIO connector.Applications:
- Advanced embedded systems.
- AI and edge computing projects.
- IoT and smart automation.
- Desktop computing (light use).
- Robotics and control systems.
- Media centers and 4K streaming.
- Industrial monitoring and control.
Package Include:
- 1x Raspberry Pi 5 Computer Model B – 4GB RAM.
