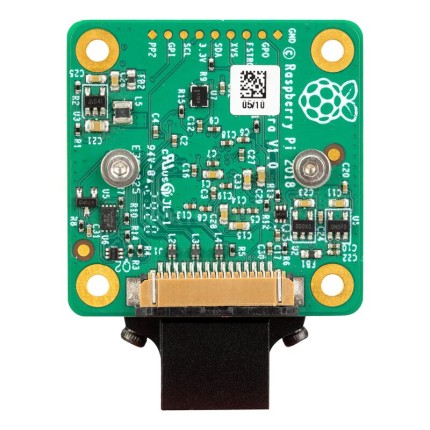

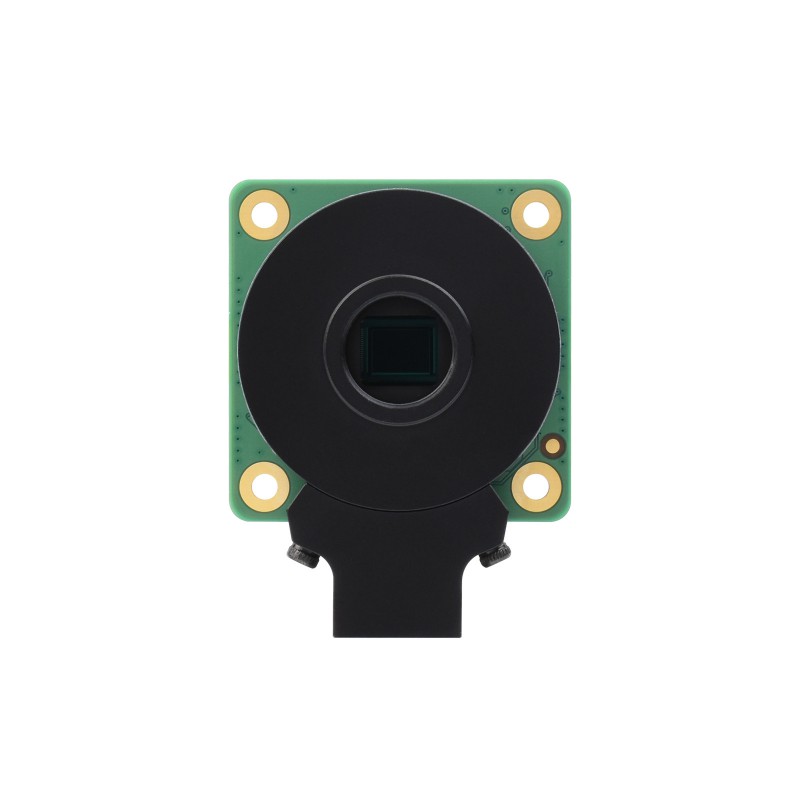

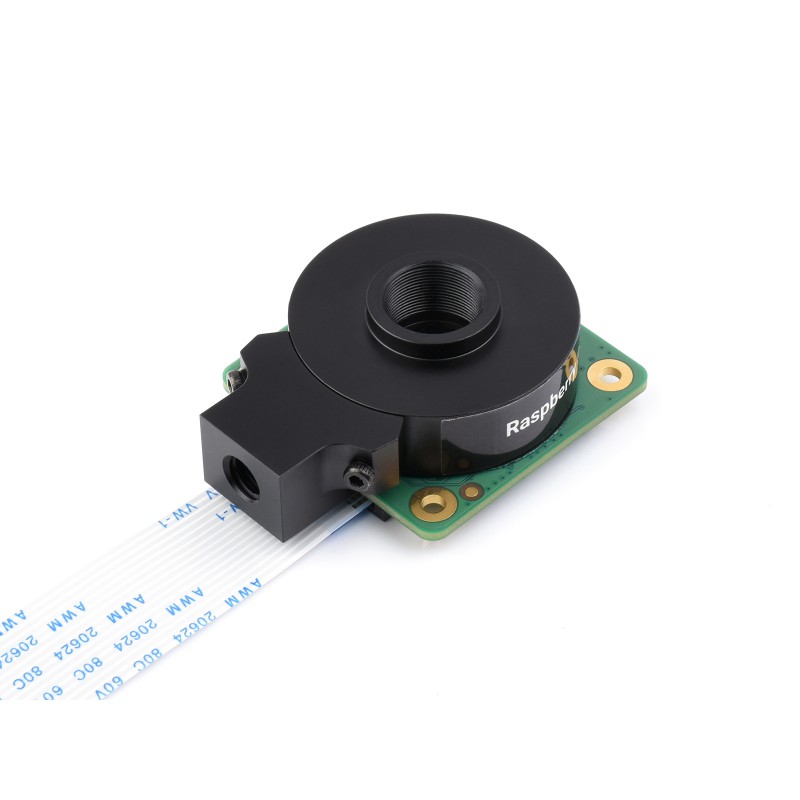

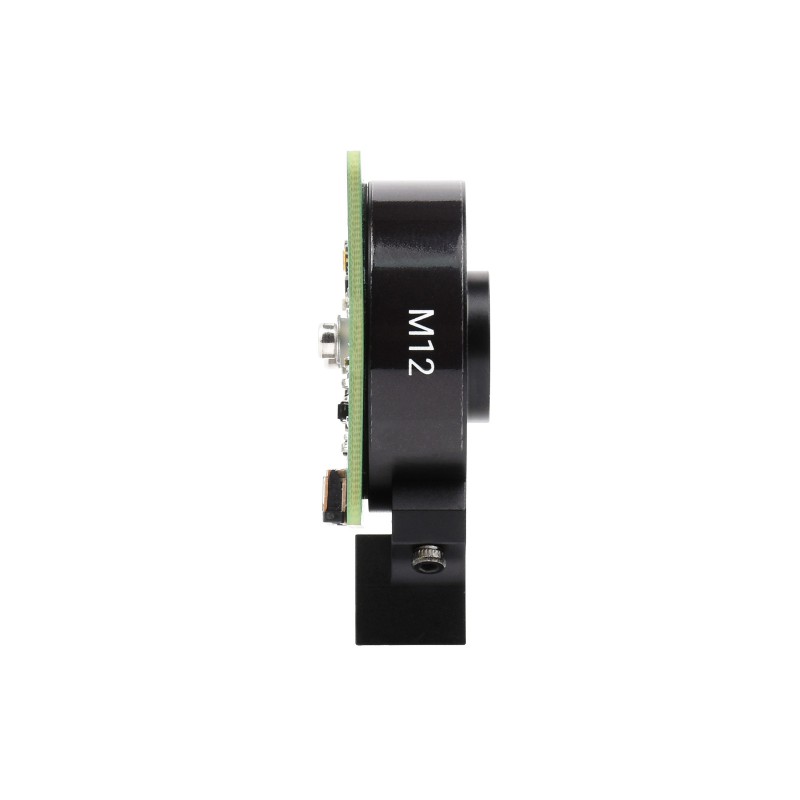

Raspberry Pi HQ Camera 12.3MP IMX477 M12 Lens Mount
The Raspberry Pi HQ Camera with the Sony IMX477 12.3MP image sensor delivers exceptional image quality, making it ideal for applications requiring high-resolution still images and detailed video capture. Unlike the standard Raspberry Pi Camera Modules, the HQ Camera features an interchangeable lens system, allowing users to select the most suitable M12 lens for their application. The back-illuminated IMX477 sensor provides improved sensitivity, excellent low-light performance, and reduced image noise.

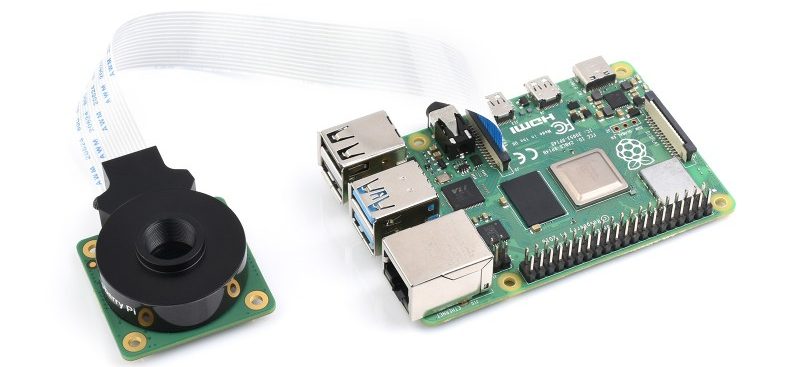

The M12 Lens Mount version is compact and lightweight, making it an excellent choice for embedded vision systems, drones, robotics, surveillance, AI vision, and industrial automation. It connects directly to the Raspberry Pi CSI camera interface and is fully supported by Raspberry Pi OS and the libcamera software stack. The camera supports RAW image output, hardware synchronization, and high-speed video modes for professional imaging projects.

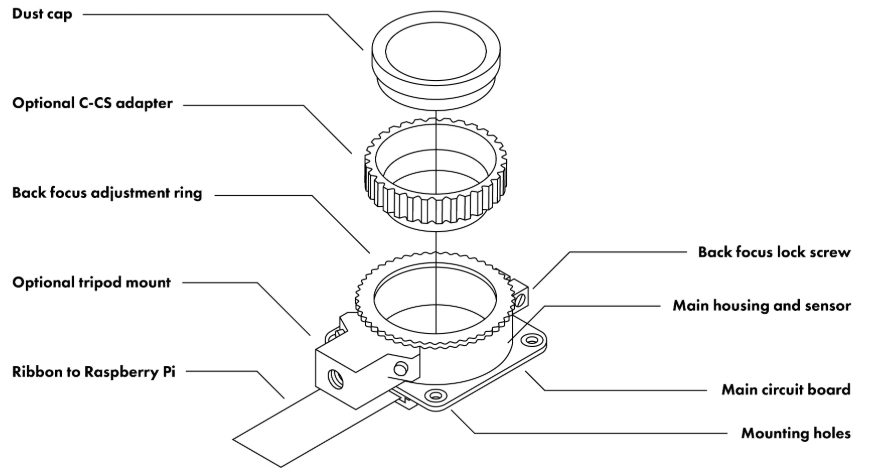

The High Quality Camera CS Mount variant is designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses. The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses.
Features:
- Original Raspberry Pi High Quality Camera.
- Sony IMX477 back-illuminated CMOS image sensor.
- High-resolution 12.3MP image capture.
- M12 interchangeable lens mount.
- Excellent low-light performance.
- Supports RAW image output.
- Integrated IR-cut filter.
- Adjustable back focus.
- Compatible with Raspberry Pi CSI interface.
- Hardware trigger support for synchronized imaging.
- Suitable for AI, OpenCV, and machine vision applications.
- Compatible with Raspberry Pi libcamera software.
- Compact aluminum lens mount.
- Standard tripod mounting point.
Specifications:
| Parameter | Value |
|---|---|
| Sensor | |
| Sensor Type | Sony IMX477R stacked, back‑illuminated CMOS |
| Resolution | 12.3 Megapixels |
| Effective Resolution | 4056 × 3040 Pixels |
| Sensor Size | 1/2.3 inch (7.9 mm diagonal) |
| Pixel Size | 1.55 × 1.55 μm |
| Image Output | RAW12 / RAW10 / RAW8 |
| IR Cut Filter | Integrated |
| Lens | |
| Lens Mount | M12 (M12 Mount variant) / CS Mount (CS Mount variant) |
| Lens Compatibility | M12 Lenses |
| Lens Sensor Format | 1/2.3” (7.9 mm) or larger |
| Back Focus Length (M12) | 2.6 – 11.8 mm |
| Back Focus Length (CS Mount) | 12.5 – 22.4 mm |
| Video | |
| Video Modes | 1080p @ 50 fps, 720p @ 120 fps |
| Interface & Connectivity | |
| Interface | MIPI CSI‑2 |
| Ribbon Cable Length | 200 mm |
| Tripod Mount | 1/4″‑20 UNC |
| Compatibility | |
| Compatible Boards | Raspberry Pi 1 (B+), 2, 3, 4, 5, CM Series, Zero (with adapter cable) |
Applications:
- Machine Vision.
- Artificial Intelligence.
- Computer Vision.
- Robotics.
- Industrial Inspection.
- Object Recognition.
- Smart Surveillance.
- OCR Systems.
- Scientific Imaging.
- Time-lapse Photography.
- Wildlife Monitoring.
- Drone Vision Systems.
- Barcode and QR Code Readers.

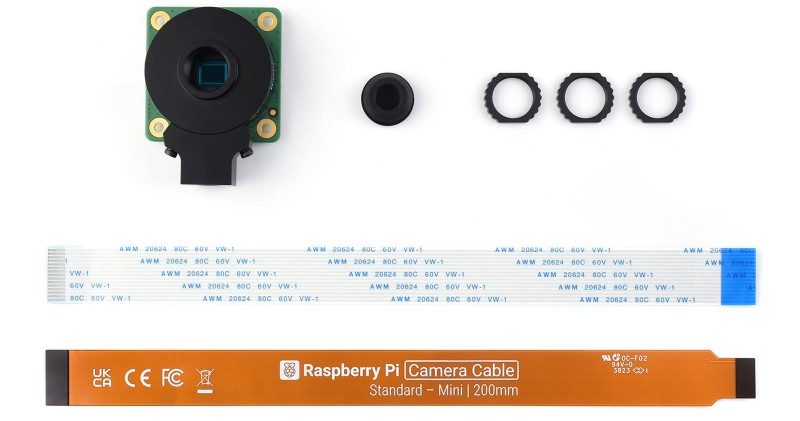

Package Includes:

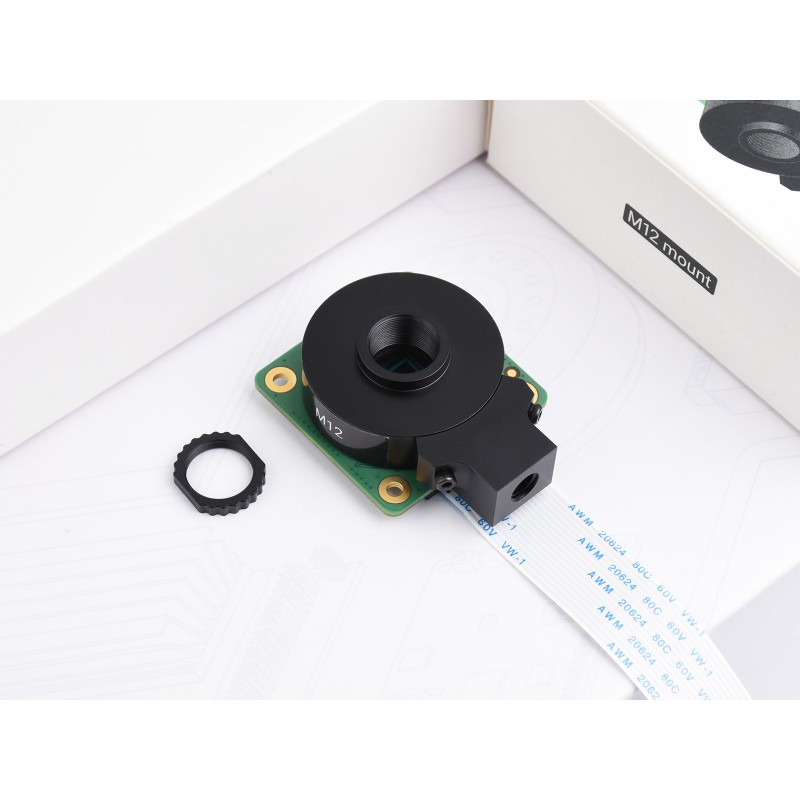

- 1 × Raspberry Pi HQ Camera 12.3MP IMX477 M12 Lens Mount.
- 1 × CSI Ribbon Cable.
- 3 × M12 Lens Locking Rings.
Documents:
- Raspberry Pi High Quality Camera product brief.
- Raspberry Pi High Quality Camera CS Mount mechanical drawing.
- Raspberry Pi High Quality Camera M12 Mount mechanical drawing.
- Example fitting instructions for a typical C-mount lens.
- Example fitting instructions for a typical CS-mount lens.
- Raspberry Pi High Quality Camera documentation.
