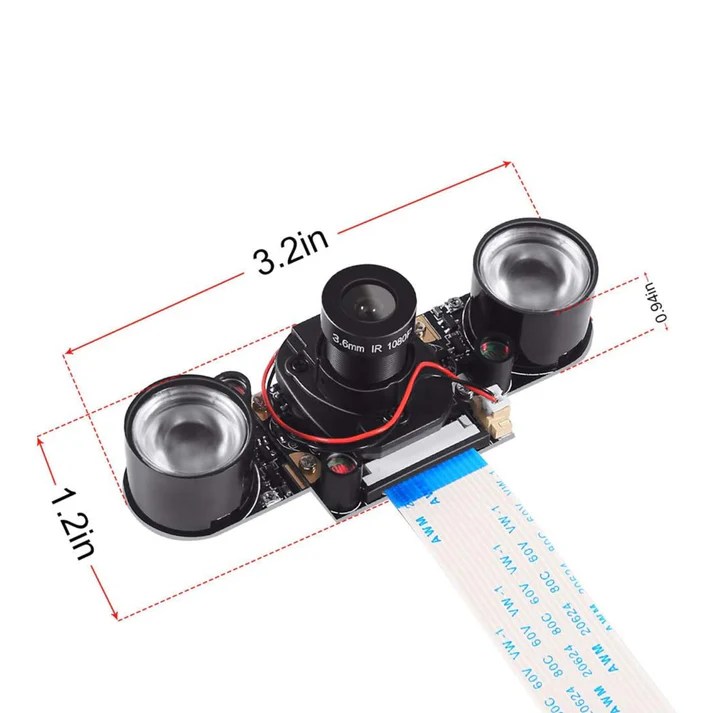

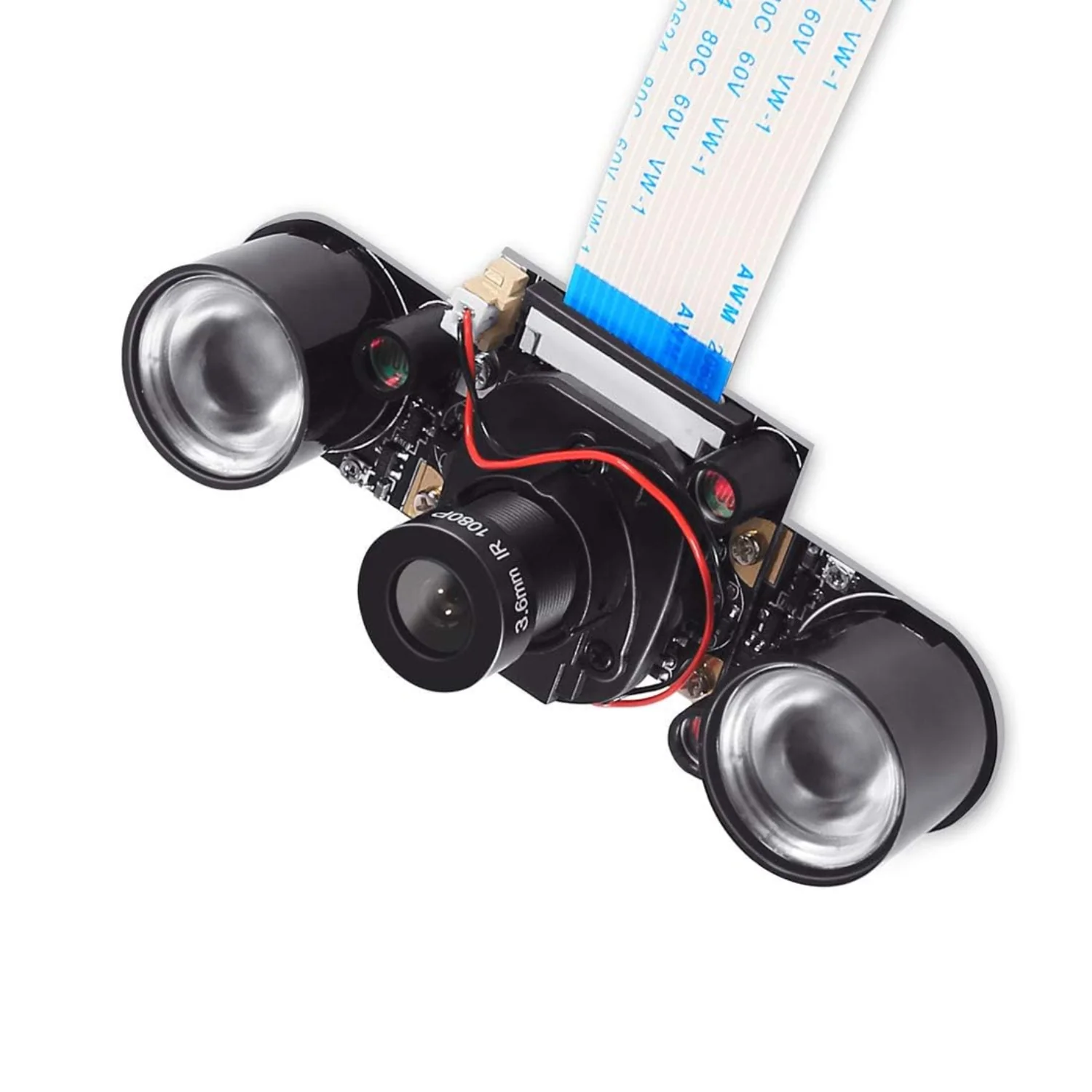

Raspberry Pi Infrared Night Vision Camera (5MP – 160°FOV)
The Raspberry Pi Infrared Night Vision Camera is a professional-grade 5-megapixel camera module designed for use with Raspberry Pi models. Featuring the OmniVision OV5647 sensor, this camera excels in capturing high-quality images and videos in both day and night environments. Its wide 160° field of view (FOV) is complemented by infrared capabilities, enabling clear night vision performance in low-light or completely dark conditions. The module supports 1080p HD video recording, making it ideal for surveillance, robotics, and other embedded vision applications requiring reliable imaging around the clock.
Features:
- 5-megapixel OV5647 CMOS image sensor with OmniBSI technology.
- Wide 160° field of view lens for broad scene coverage.
- Infrared night vision capability with multiple IR LEDs.
- Supports 2592×1944 resolution at 15 fps and 1080p at 30 fps.

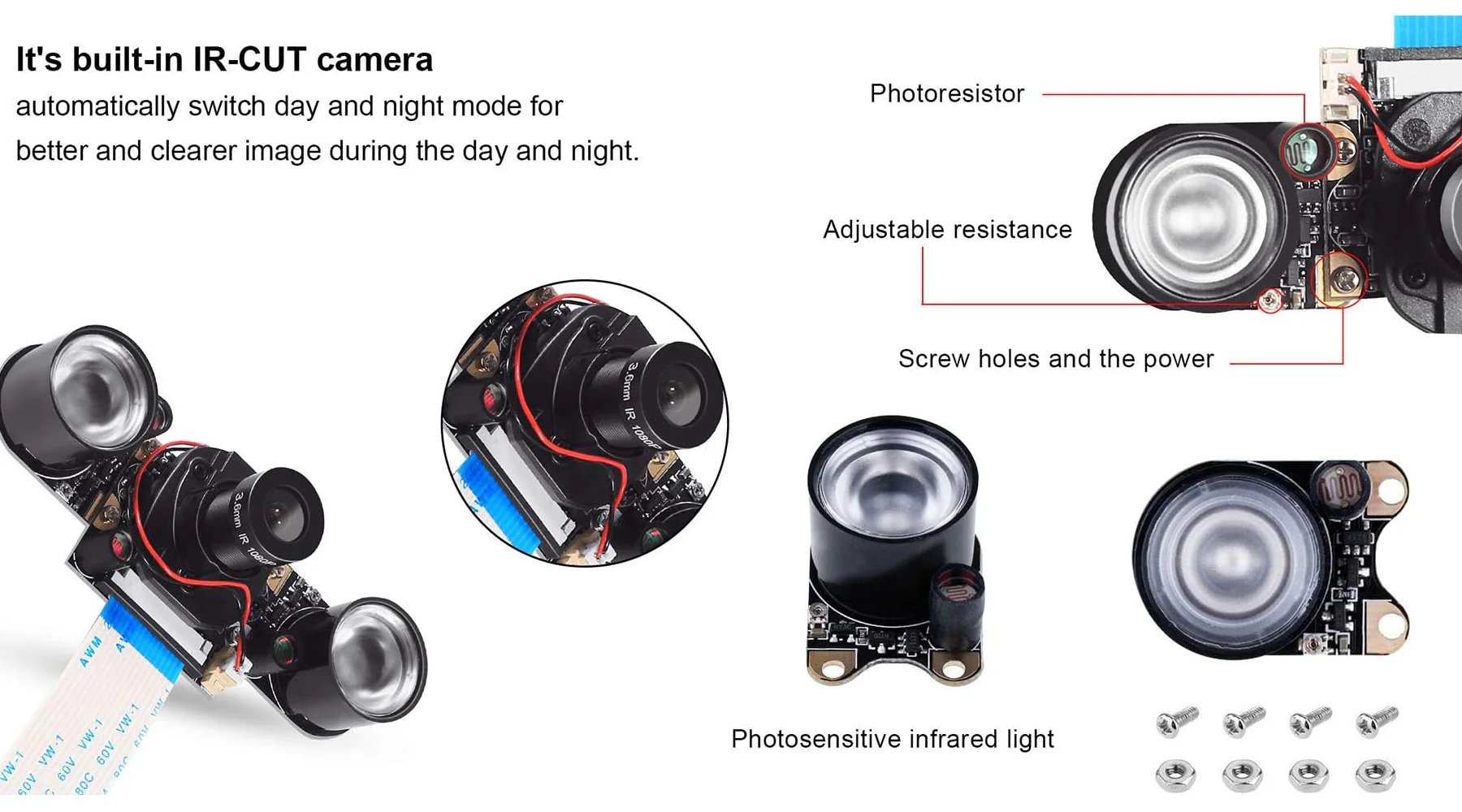

- Day/night mode with IR cut filter switching.
Specifications:
| Parameter | Value |
|---|---|
| Sensor | OV5647 |
| Resolution | 2592×1944 |
| VideoModes | 1080p30fps,720p60fps,640x48090fps |
| OpticalSize | 1/4inch |
| PixelSize | 1.4µmx1.4µm |
| Sensitivity | 680mV/lux-sec |
| SN Ratio | 36dB |
| Dynamic Range | 68dB |
| Field Of View | 160degrees |
| Lens Type | Fisheye |
| Focus Type | Adjustable |
| Operating Voltage | 3.3VDC |
| Current Consumption | 250mA |
| Interface | CSI |
| Operating Temperature | -20°Cto60°C |
Configuration:
Applications:
- Night‑vision monitoring and surveillance using Raspberry Pi.
- Wide‑angle vision systems — e.g., room monitoring, baby‑monitor, pet camera.

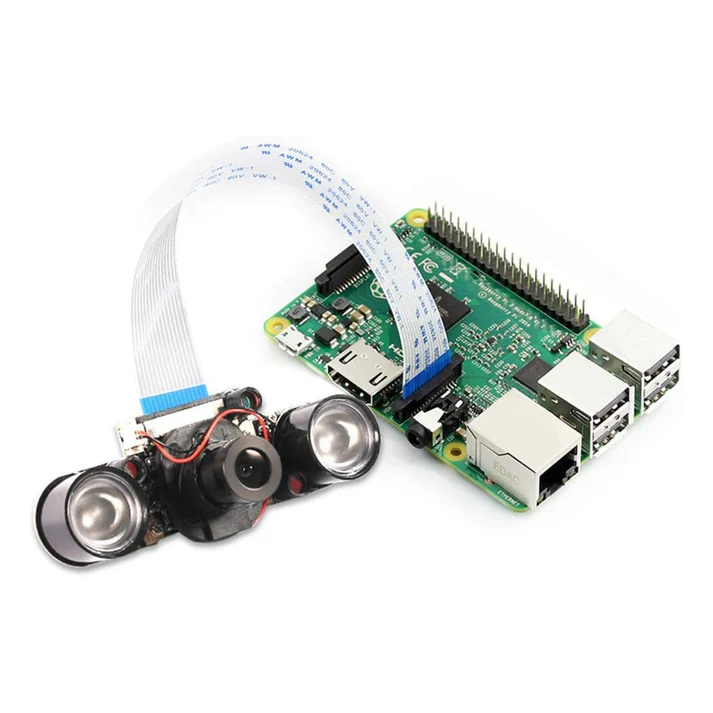

- DIY embedded vision projects, home automation systems with Raspberry Pi.
- Robotics or vehicle‑mounted cameras requiring broad field of view.
- Educational and hobbyist projects needing day/night visual capture.
Package Include:
1x Raspberry Pi Infrared Night Vision Camera (5MP – 160° FOV)
