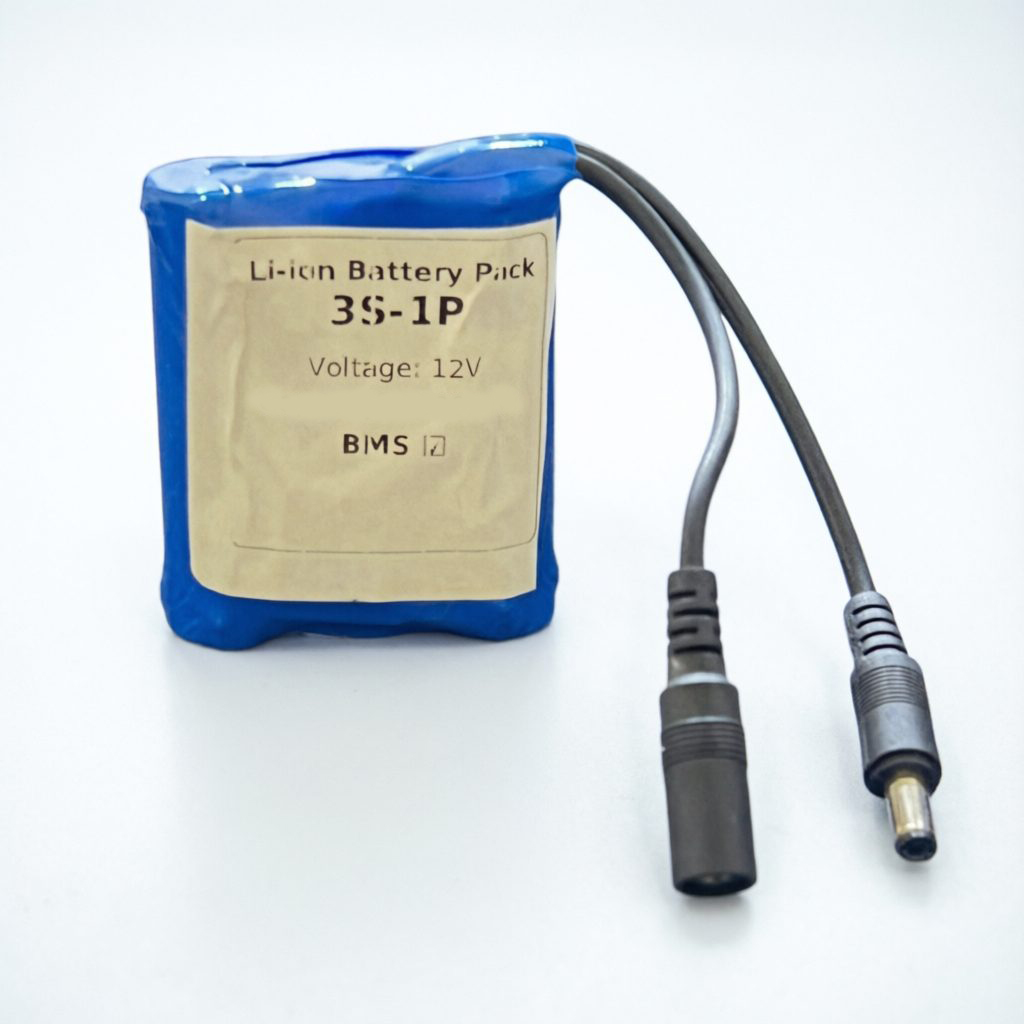

Rechargeable Li-ion Battery Pack -18650 12V 3S-1P+BMS 3350mAh (Panasonic Cell)
The Rechargeable Li-ion Battery Pack 18650 3S-1P uses three Panasonic 18650 lithium-ion cells connected in series to provide a nominal voltage of 10.8V, commonly marketed as a 12V battery pack. With a capacity of 3350mAh, it offers approximately 36.18Wh of energy for compatible electronic equipment, portable devices, and low-voltage power systems.
The integrated Battery Management System (BMS) helps protect the battery pack against electrical conditions such as overcharging, over-discharging, and excessive current, depending on the protection circuit design. The pack must be charged using a compatible lithium-ion charger with a maximum charging voltage of 12.6V. Check the BMS current rating, wiring, connector, and physical dimensions before installation to ensure compatibility with your device.
Features:
- Rechargeable lithium-ion battery technology.
- Uses Panasonic 18650 cells
- Three-cell series configuration
- Integrated Battery Management System (BMS)
- Suitable for portable and embedded power applications
- Compact battery-pack format
- Designed for compatible 12V-class electronic equipment
Specifications:
| Specification | Value |
|---|---|
| Battery Type | Rechargeable Lithium-ion |
| Cell Format | 18650 |
| Cell Manufacturer | Panasonic |
| Battery Configuration | 3S-1P |
| Number of Cells | 3 |
| Nominal Voltage | 10.8V |
| Product Voltage Class | 12V |
| Charging Voltage | 12.6V |
| Capacity | 3350mAh |
| Energy Capacity | 36.18Wh |
| Battery Management System | Integrated BMS |
Applications:
- Portable electronic equipment.
- Embedded electronics and control systems.
- DIY battery-powered projects.
- Low-voltage DC equipment compatible with a 3S lithium-ion pack.
- Portable lighting and compatible instruments.
- Backup power for suitable electronic devices.
Package Included:
- 1 × Rechargeable Li-ion Battery Pack 18650 3S-1P 3350mAh with BMS.
