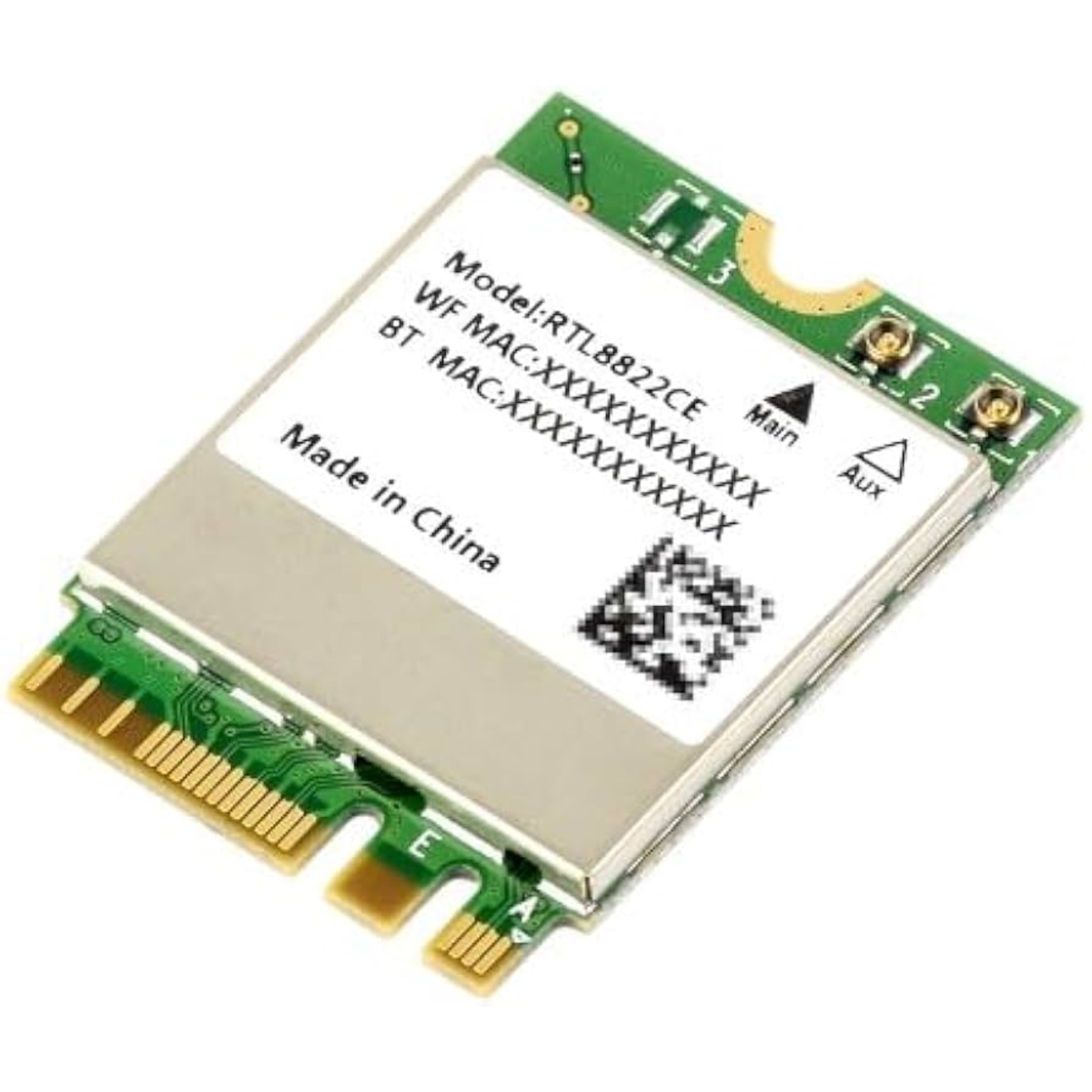

RTL8822CE Dual Band Wireless WLAN Card 2.4G/5.8G, M.2 E/A Key Connector, 3.3V 655mA
The RTL8822CE Wireless WLAN Card 2.4G/5.8G DUAL BANDCE is a highly integrated dual-band wireless communication module based on the Realtek RTL8822CE chipset. It combines IEEE 802.11ac Wi-Fi and Bluetooth 5.0 functionality in a compact M.2 Key A/E form factor, making it ideal for upgrading or adding wireless networking capabilities to modern computing platforms. The module supports both 2.4GHz and 5.8GHz frequency bands, providing stable connectivity, improved network performance, and reduced interference in crowded wireless environments.

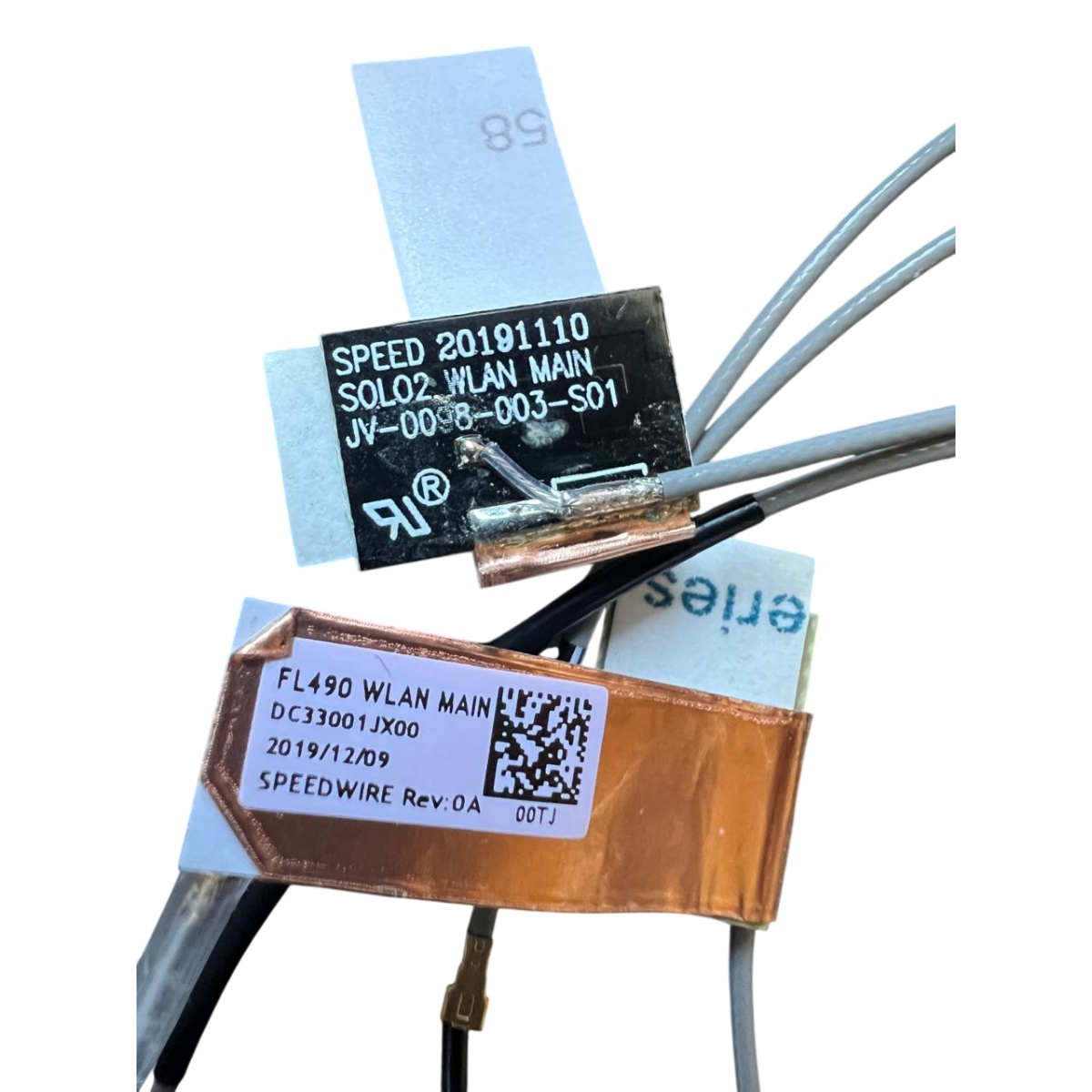

Designed with a PCIe interface for Wi-Fi and a USB interface for Bluetooth communication, the RTL8822CE delivers reliable wireless performance for laptops, industrial computers, embedded systems, and IoT applications. The module supports advanced wireless technologies including MIMO and MU-MIMO, enabling efficient data transmission and improved network capacity. External Flexible Antenna can be connected through MHF4 connectors for enhanced signal coverage and reception.
Features:
- Compatible with IPEX4 (MHF4) antenna cables and antennas.
- Dual-band Wi-Fi operation on 2.4GHz and 5.8GHz bands.
- Integrated Bluetooth 5.0 functionality.
- Compact M.2 Key A/E form factor.
- Supports IEEE 802.11a/b/g/n/ac wireless standards.
- PCIe interface for WLAN communication.
- USB interface for Bluetooth communication.
- Supports 2T2R MIMO technology.
- Supports MU-MIMO wireless networking.
- External antenna connectivity through MHF4 connectors.
- High-speed wireless data transmission.
- Reliable long-range wireless connectivity.
- Suitable for embedded and industrial applications.
- Low-profile and lightweight design.
- Wide operating temperature range.
Specifications:
| Parameter | Value |
|---|---|
| Module Name | RTL8822CE |
| Chipset | RTL8822CE-CG |
| Module Type | WLAN + Bluetooth Combo Module |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac |
| Bluetooth Version | Bluetooth 5.0 |
| Frequency Bands | 2.4GHz / 5.8GHz |
| Host Interface (Wi-Fi) | PCIe |
| Host Interface (Bluetooth) | USB 2.0 |
| Maximum Wi-Fi Data Rate | 867 Mbps |
| Antenna Interface | MHF4 External Antenna Connectors |
| Form Factor (Key Option) | M.2 2230 Key A/E |

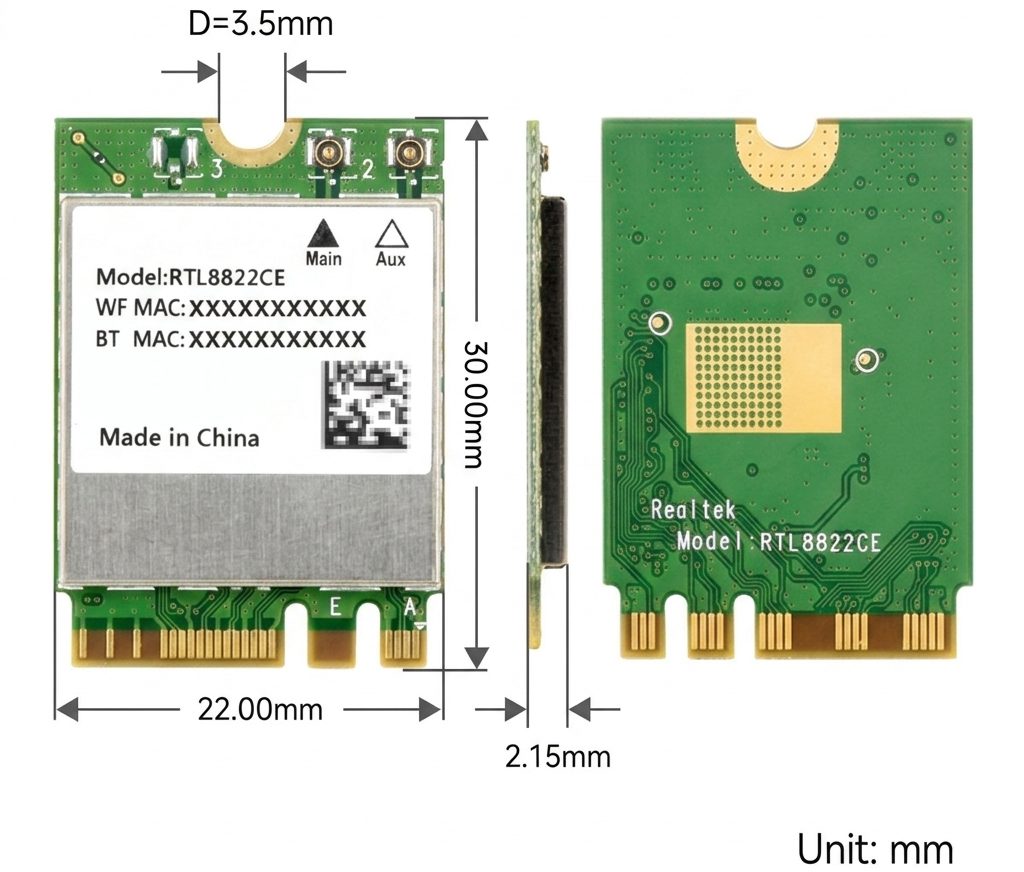

| Dimensions | 30 × 22 × 2.15 mm |
| Flexible Antenna Length | 60mm |
| Supply Voltage | 3.3V ± 0.2V |
| Maximum Current Consumption | 655 mA |
| Operating Temperature | -40°C to +85°C |
| Operating Humidity | 10% to 95% RH (Non-Condensing) |
Applications:
- Laptop Wi-Fi upgrades.
- Mini PC wireless networking.
- Industrial embedded computers.
- IoT gateways.
- Smart home hubs.
- Wireless data terminals.
- Edge computing devices.
- Single-board computer expansions.
- Network appliances.
- Bluetooth-enabled systems.
- Wireless monitoring equipment.
- Industrial automation systems.

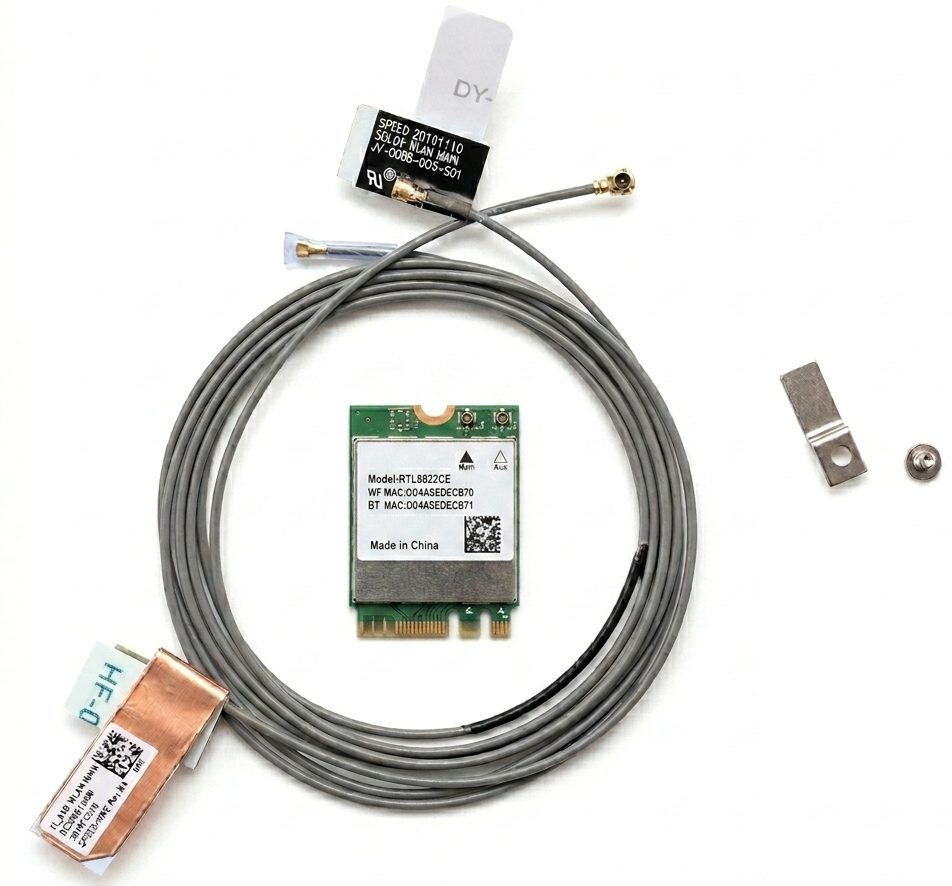

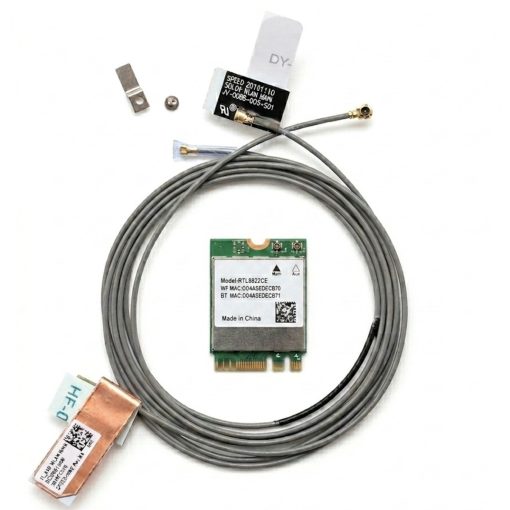

Package Includes:
