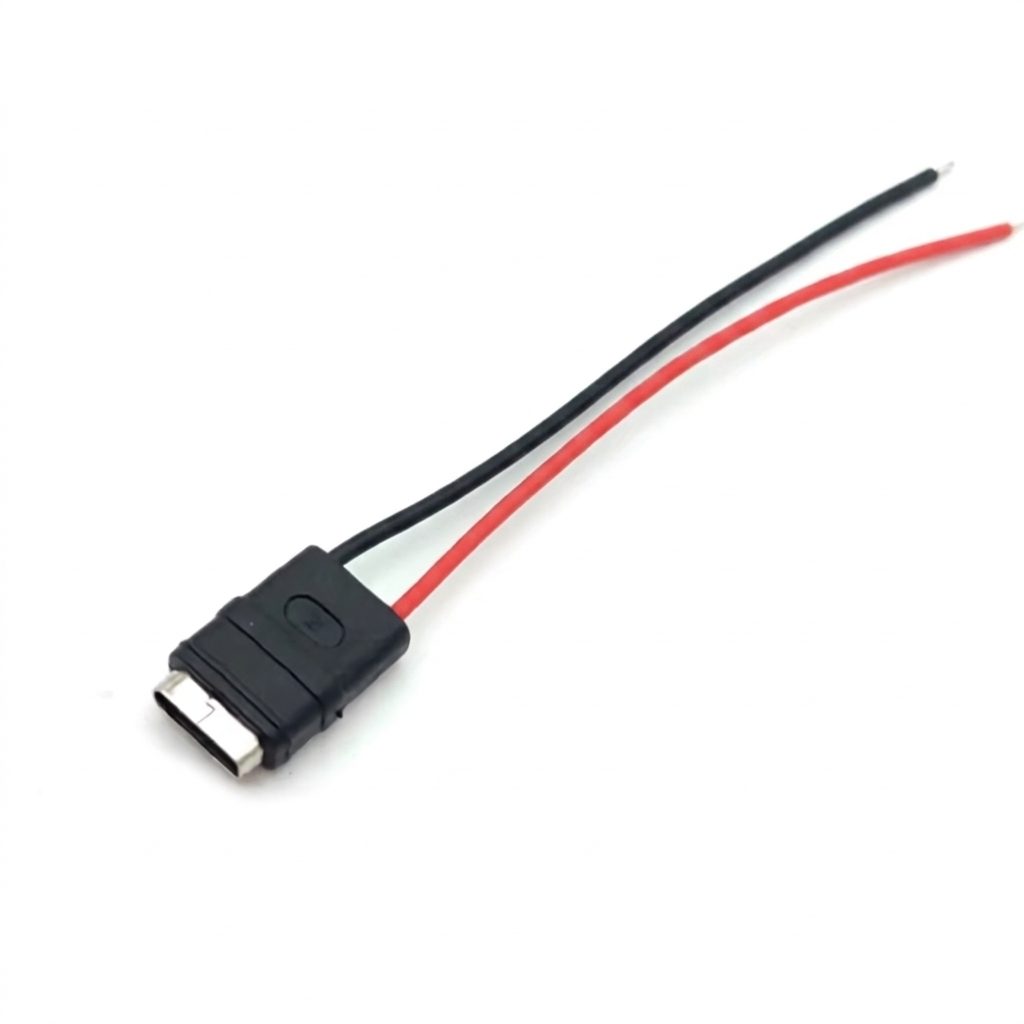

Rubber Ring Female USB Type-C Socket Connector with 2-Wire 6cm IPX6 (BLACK)
The Rubber Ring Female USB Type-C Socket Connector is a compact USB-C connector designed for power and charging applications requiring additional environmental protection. It features a rubber sealing ring that helps create a protected connection when installed in a suitable panel or enclosure. The black design provides a clean appearance for portable devices and custom electronic projects.
The connector includes a 6cm 2-wire cable for simple connection to power circuits. Its IPX6 protection rating makes it suitable for applications where resistance to powerful water splashes or jets is required under proper installation conditions. The compact pre-wired design reduces installation time and is useful for DIY projects, battery-powered equipment, and custom charging systems.
Features:
- USB Type-C female socket.
- Rubber sealing ring design.
- IPX6 water resistance rating.
- Pre-wired 2-wire connection.
- Compact construction.
- Suitable for power and charging applications.
- Easy installation.
- Black housing.
- Suitable for electronic enclosures.
- Reduces direct soldering requirements.
Specifications:
| Specification | Value |
|---|---|
| Product Type | USB Type-C Female Socket Connector |
| Connector Type | USB Type-C Female |
| Number of Wires | 2 |
| Cable Length | 6cm |
| Protection Rating | IPX6 |
| Sealing Method | Rubber Ring |
| Color | Black |
| Primary Function | Power Connection / Charging |

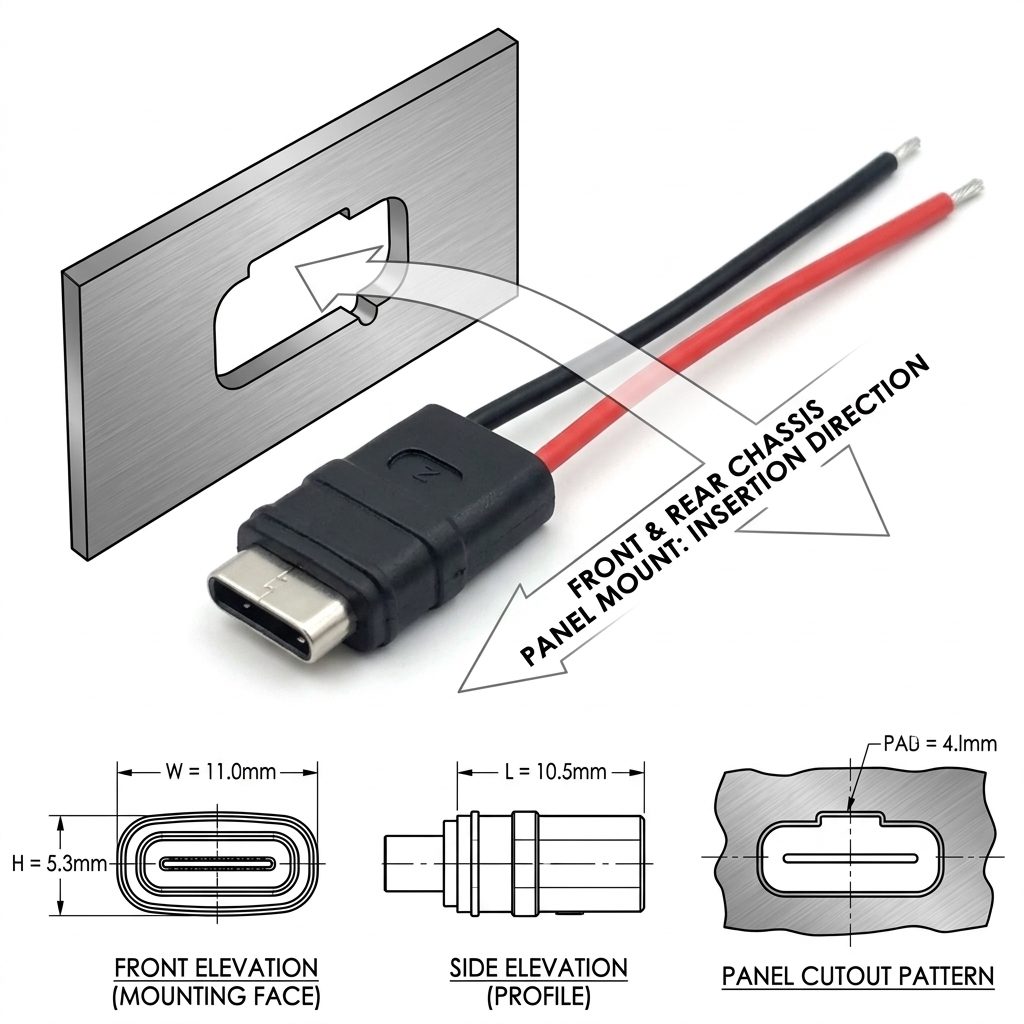

| Installation Type | Panel / Enclosure Mount |
Pinout:
| Wire | Function |
|---|---|
| Positive Wire | Power (+) |
| Negative Wire | Power (-) |
Applications:
- DIY electronic projects.
- Waterproof electronic enclosures.
- USB Type-C power inputs.
- Portable devices.
- Battery-powered equipment.
- Charging projects.
- Outdoor electronic equipment.
- Custom project boxes.
- USB-C charging ports.
- Replacement power connectors.
Package Included:
- 1x Rubber Ring Female USB Type-C Socket Connector with 2-Wire 6cm IPX6 (BLACK).
