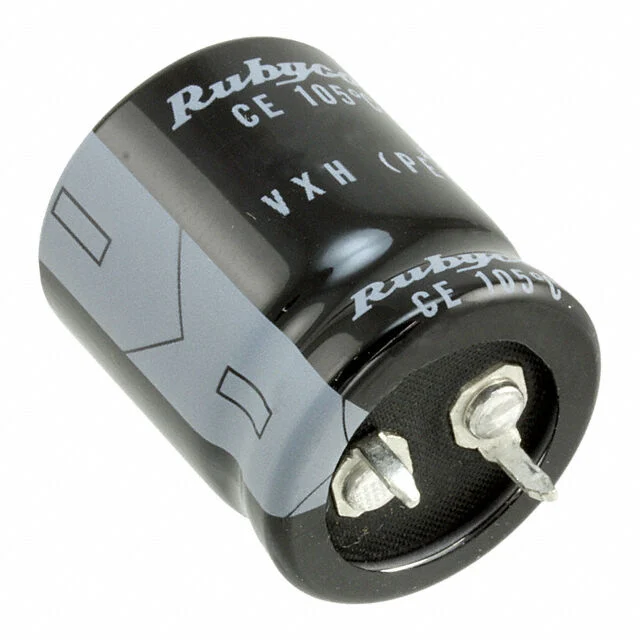

Rubycon Aluminum Electrolytic Capacitor 330uF 450V Snap-In 35x35mm Made in Japan
High-quality snap-in aluminum electrolytic capacitor, 330µF 450V, 35x35mm can size, 105°C rated, 5000-hour life, made in Japan by Rubycon.
50.00 EGP
Buy NowRubycon Aluminum Electrolytic Capacitor 330uF 450V Snap-In 35x35mm Made in Japan
The Rubycon Aluminum Electrolytic Capacitor 330uF 450V 35x35mm Made in Japan is a premium-quality snap-in electrolytic-capacitor designed for demanding power electronics and industrial applications. Manufactured by Rubycon, one of the world’s leading capacitor manufacturers, this capacitor offers excellent reliability, long service life, and stable electrical performance under high-voltage operating conditions.
Features:
- Aluminum electrolytic capacitor.
- Snap-in terminal design.
- 330uF capacitance.
- 450VDC rated voltage.
- 105°C maximum operating temperature.
- Manufactured in Japan.
- Compact 35mm diameter package.
- 35mm height for space-saving designs.

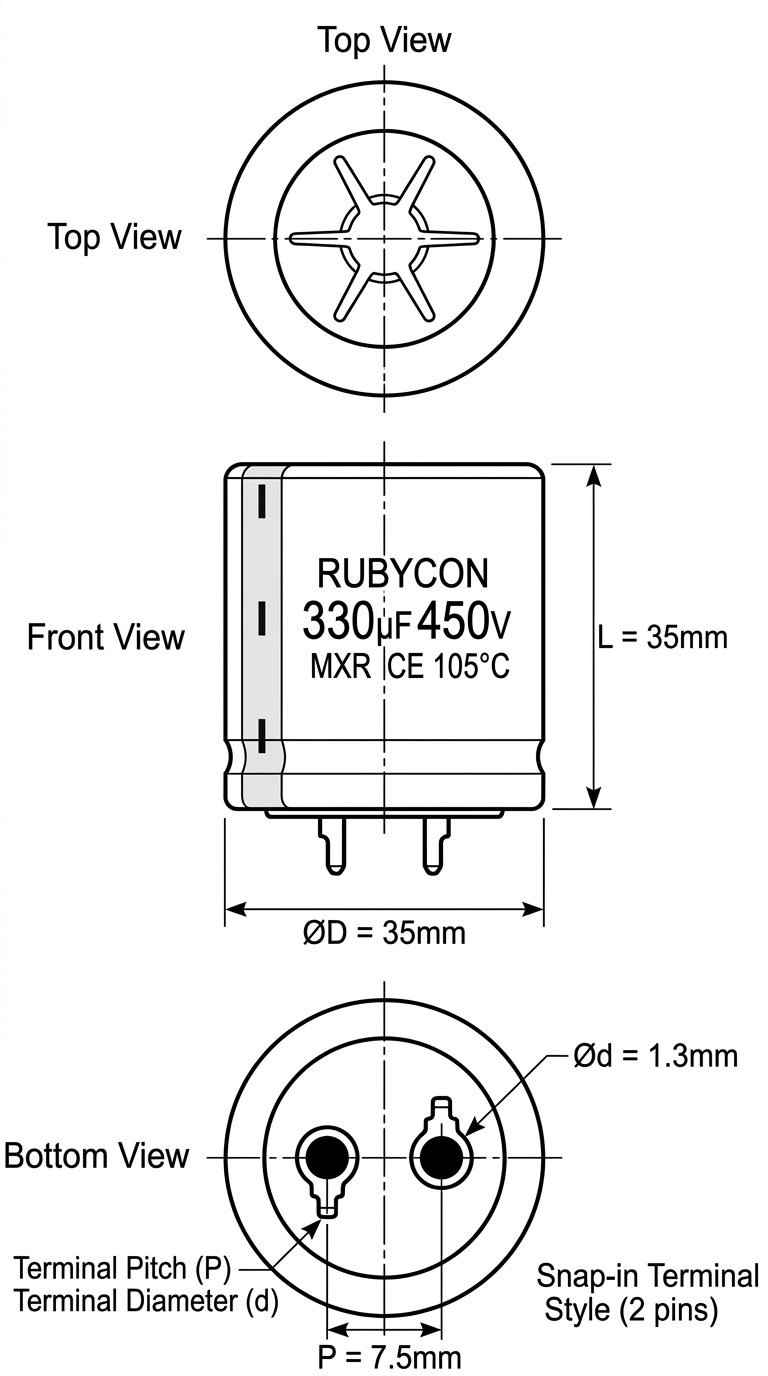

Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Rubycon |
| Capacitance | 330µF |
| Capacitance Tolerance | ±20% |
| Rated Voltage | 450VDC |
| Category Temperature Range | -40°C~+105°C |
| Rated Life | 5000Hrs@105°C |
| Mounting Type | Snap-InThroughHole |
| Terminal Lead Spacing | 7.5mm |
| Body Diameter | 35mm |
| Body Height | 35mm |
| Polarization | Polar |
Applications:
- Switching power supplies.
- UPS systems.
- Inverter circuits.
- Motor drives.
- Industrial control equipment.
- Audio amplifiers.
- DC bus filtering.
- Renewable energy systems.
- Battery chargers.
- High-voltage power converters.
Package Include:
1x Rubycon Aluminum Electrolytic-Capacitor 330uF 450V 35x35mm Made in Japan
