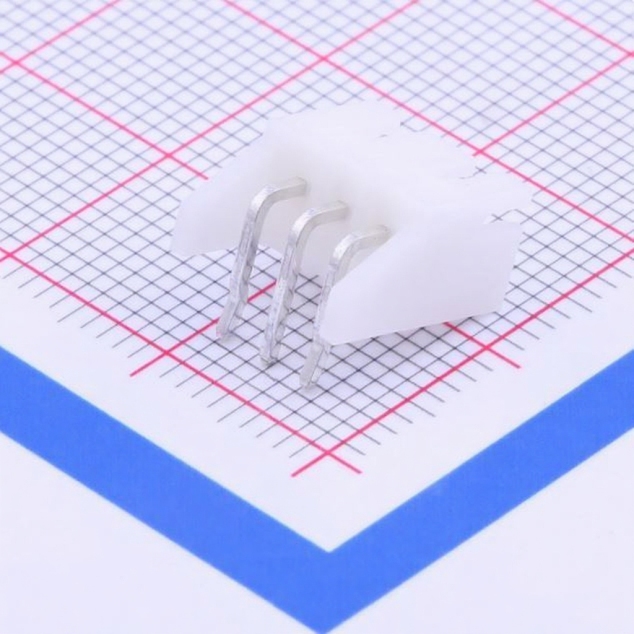

S3B-XH-A JST XH Data Terminal Angle Male 3 Pin Connector Header 2.5mm
The S3B-XH-A JST XH Data Terminal Angle Male 3 Pin Connector Header 2.5mm is a reliable and compact connector designed for use in a variety of electronic applications. This connector features a 2.5mm pitch and is ideal for board-to-board connections where space constraints are important. The S3B-XH-A model offers a high level of durability and ease of use, making it suitable for both low- and medium-power applications. It is RoHS compliant, ensuring it meets global environmental standards.
Features:
- 3-pin male header connector with 2.5mm pitch for compact PCB applications.
- Right-angle through-hole mount for space-saving PCB layout.
- Rated 3A current and 250V AC/DC voltage for versatile usage.
- Low contact resistance (10mΩ initial, 20mΩ max after testing).
- High insulation resistance of minimum 1,000MΩ for electrical safety.
Specifications:
Footprint:
Applications:
- Automotive electronics.
- Consumer electronics devices.
- Industrial machinery and equipment.
- LED lighting systems and power supplies.
- PCB assembly and repair.
Package Include:
1x S3B-XH-A JST XH Data Terminal Angle Male 3 Pin Connector Header 2.5mm
