S8050 J3Y SMD NPN Transistor 25V 0.5A 300mW 200@50mA 1V@500mA SOT-23
The SMD Transistor S8050 J3Y is a general-purpose NPN bipolar junction transistor designed for switching, amplification, driver, and control applications. It provides a collector-emitter voltage rating of 25V and a maximum collector current of 500mA, making it suitable for low-power electronic circuits requiring a compact NPN transistor.
Features:
- NPN bipolar junction transistor.
- S8050 transistor type.
- J3Y marking.
- 25V collector-emitter voltage rating.
- 500mA collector current.
- 300mW power dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | NPN Bipolar Junction Transistor |
| Transistor Type | NPN |
| Model Number | S8050 J3Y |
| Collector-Emitter Voltage VCEO | 25V |
| Collector Current IC | 500mA |
| Power Dissipation PD | 300mW |
| DC Current Gain hFE | 200 at 50mA |
| Collector-Emitter Saturation Voltage VCE(sat) | 1V at 500mA |
| Emitter-Base Voltage VEBO | 5V |
| Transition Frequency fT | 150MHz |
| Package | SOT-23 |
| Number of Transistors | 1 NPN |
| Mounting Type | Surface Mount |

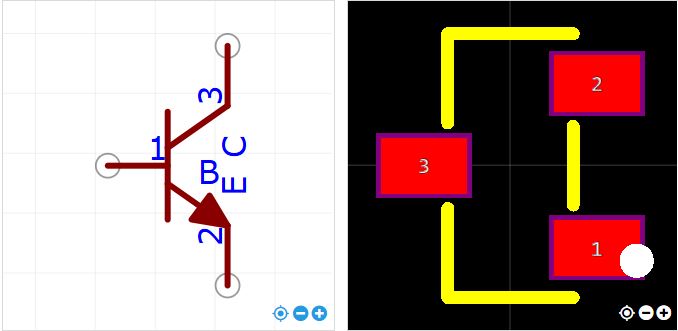

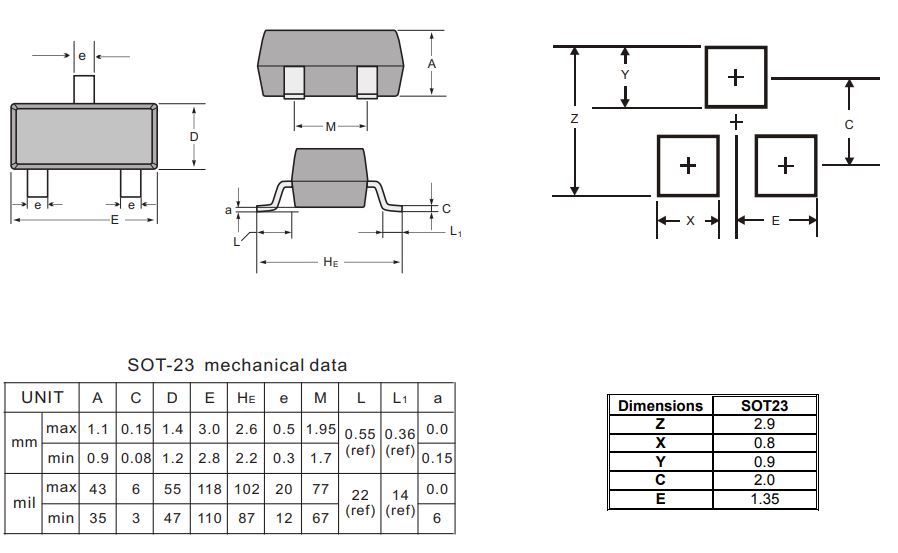

Foot Print:
Applications:
- General-purpose transistor switching.
- Low-power switching circuits.
- Signal amplification.
- Audio-frequency driver stages.
- Transistor driver circuits.
- Signal-processing circuits.
- Interface circuits.
- Control circuits.
- Embedded electronic systems.
- Consumer electronic equipment.
- LED driver circuits.
- Compact surface-mount PCB designs.
Package Include:
1x S8050 J3Y SMD NPN Transistor 25V 0.5A 300mW 200@50mA 1V@500mA SOT-23.
