SAB0600 Three-Tone Chime Generator IC DIP-8
SAB0600 Three-Tone Chime Generator IC DIP-8 is a bipolar integrated circuit designed to generate a pleasant three-tone chime sequence for doorbells, alarms, and signaling applications. The IC produces three harmonically tuned frequencies switched in succession with individually controlled decay, creating a natural chime effect. Tone characteristics can be adjusted using an external RC network, while the integrated output stage directly drives an 8Ω loudspeaker through a coupling capacitor. Requiring only a few external components and offering very low standby current, the SAB0600 is an excellent choice for compact electronic chime and notification systems.
Features
- Generates a pleasant three-tone chime sequence.
- Requires only a few external components.
- Integrated output stage for driving an 8Ω loudspeaker.
- Tone color adjustable using an external RC network.
- Very low standby current (<1µA).
- Bipolar IC technology.
- Simple and compact circuit implementation.
- Standard DIP-8 through-hole package.
- Suitable for electronic door chimes and audible indicators.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Three-Tone Chime Generator IC |
| Part Number | SAB0600 |
| Technology | Bipolar IC |
| Output Type | Three-Tone Chime |
| Supply Type | DC Supply |
| Speaker Support | 8Ω Loudspeaker |
| Output Stage | Integrated |
| Tone Adjustment | External RC Network (R1, C1, C2) |
| Standby Current | <1µA |
| External Components | Few Required |
| Package | P-DIP-8 |

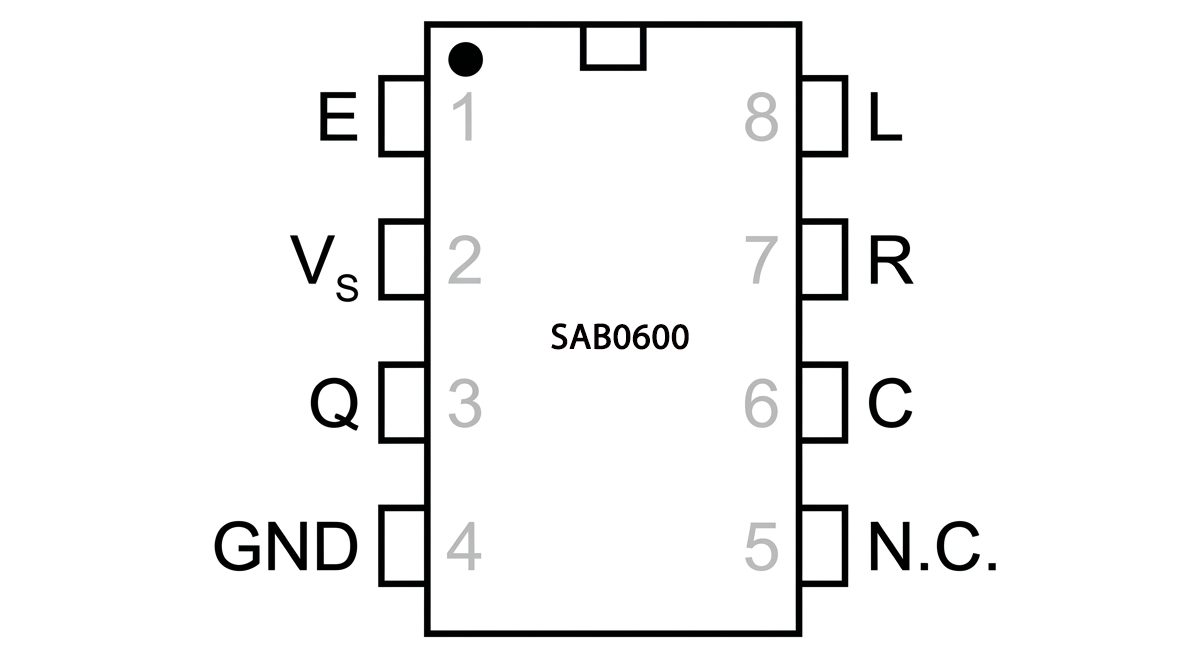

Pin Configuration
| Pin Number | Pin Name | Function / Description |
|---|---|---|
| 1 | E | Trigger Input. |
| 2 | VS | Supply Voltage Input. |
| 3 | Q | Chime Output. |
| 4 | GND | Ground (0V). |
| 5 | N.C. | Not Connected. |
| 6 | C | Oscillator Connection. |
| 7 | R | Reference Connection. |
| 8 | L | Compensation Connection. |
Applications
- Electronic door chimes.
- Doorbell systems.
- Alarm notification circuits.
- Access control systems.
- Entry signaling devices.
- Security systems.
- Home automation projects.
- Industrial audible indicators.
- Consumer electronic sound generators.
- DIY electronic chime projects.
Package Contents
- 1 x SAB0600 Three-Tone Chime Generator IC DIP-8
