SAMWHA Aluminum Electrolytic Capacitor 2200uF 25V 12.5x25mm Made in South Korea
The SAMWHA is a miniature, radial-leaded aluminum electrolytic capacitor designed for high-density mounting and general-purpose applications. This specific 2200μF model features a high CV (capacitance-voltage) value and is engineered to operate reliably across a wide temperature range from −55∘C to 85∘C.
Features
- High CV Value
- Wide Temperature Range
- Enhanced Safety
- Durable Construction
- Environmental Compliance
Specifications
| Specification | Value |
|---|---|
| Capacitance | 2200µF |
| Rated Voltage | 25V DC |
| Operating Temperature | -55°C to +85°C |
| Capacitance Tolerance | ±20% |

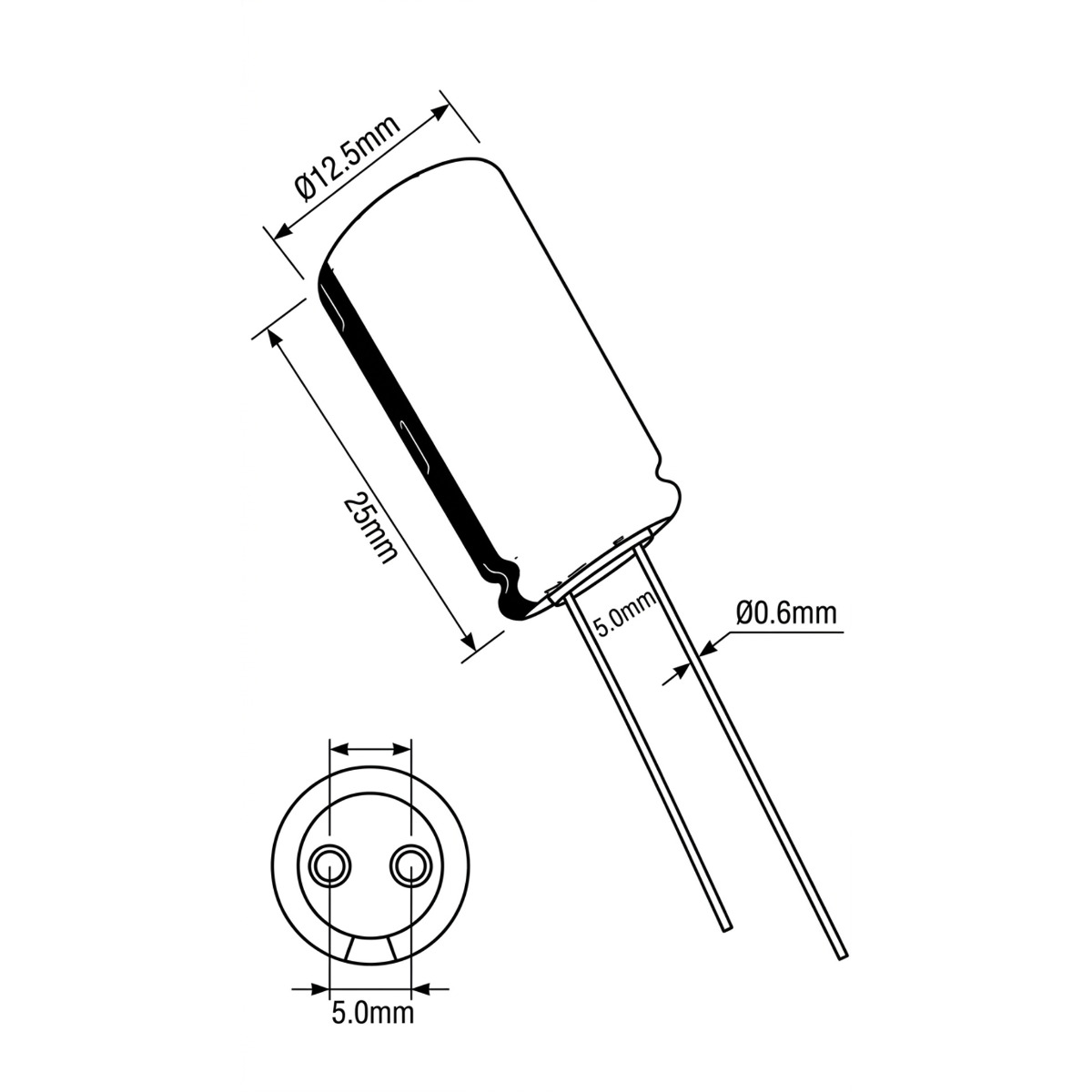

| Case Dimensions | 12.5mm × 25mm (D × L) |
| Lead Spacing | 5.0mm ± 0.5 |
| Lead Diameter | 0.6mm ± 0.05 |
Applications
- General Purpose Electronics
- Power Supply Filtering
- Industrial Controls
- Consumer Appliances
Package Content
- 1 x SAMWHA Aluminum Electrolytic Capacitor 2200uF 25V 12.5x25mm Made in South Korea
