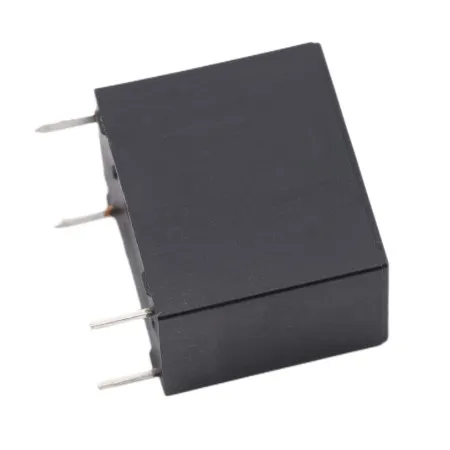

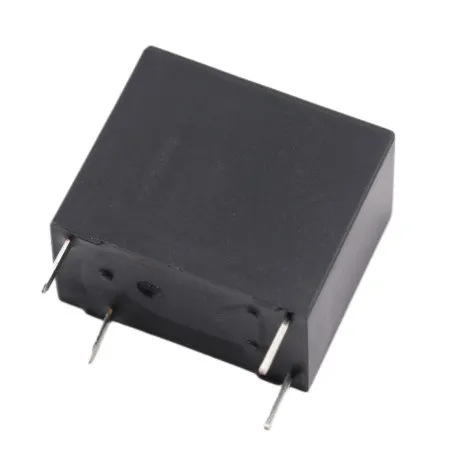

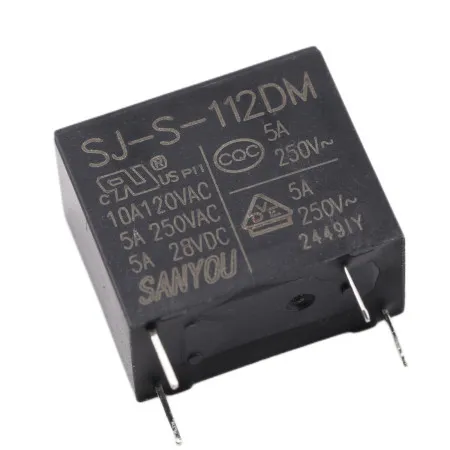

SANYOU SJ-S-112DM Relay 12V 4pin 5A
The SANYOU SJ-S-112D-M is a compact electromechanical power relay designed to switch electrical loads using a 12VDC control signal. It features a single normally open contact configuration (SPST-NO), allowing the controlled circuit to close when the relay coil is energized and open when the coil is de-energized. With a maximum switching current of 5A, it is suitable for compatible low- and medium-power switching applications.
Features:
- Electromechanical power relay with a 12VDC coil.
- Single normally open contact configuration (SPST-NO).
- Maximum switching current of 5A.
- Maximum switching voltage of 277VAC or 30VDC.
- Rated coil power of 0.45W.
Specifications:
|
Parameter
|
Value
|
|---|---|
|
Model Number
|
SJ-S-112DM
|
|
Manufacturer
|
SANYOU
|
|
Contact Type
|
SPST-NO
|
|
Number of Pins
|
4
|
|
Coil Voltage
|
12VDC
|
|
Coil Resistance
|
320Ω
|
|
Power Consumption
|
0.45W
|
|
Max Switching Current
|
5A
|
|
Max Switching Voltage
|
277VAC/30VDC
|
|
Waterproof Grade
|
IP65
|
|
Dimensions
|
18.4×10.2×15.5mm
|
|
Construction
|
Fully Encapsulated
|
|
Termination
|
Through-Hole PCB
|
Applications:
- Electronic control boards.
- Household electrical equipment.
- Automation and control circuits.
- PCB-based load switching.
- Lighting and resistive-load control.
- Compatible electrical switching applications.
Package Include:
1x SANYOU SJ-S-112DM Relay 12V 4pin 5A.
