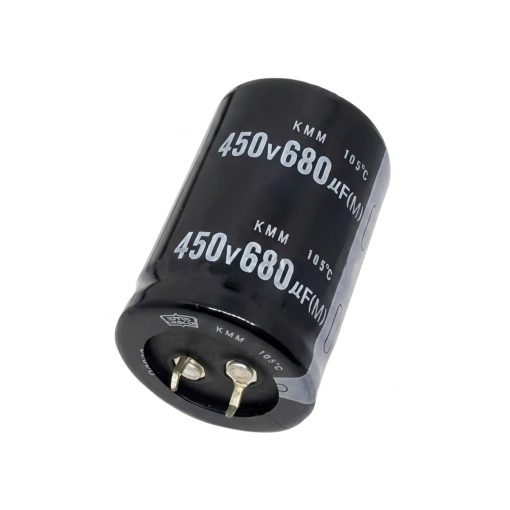

SHDR Aluminum Electrolytic Capacitor 680uF 450V Snap-In 35x50mm
The SHDR Aluminum Electrolytic Capacitor 680uF 450V Snap-In 35×50mm is a high-performance polarized capacitor designed for demanding high-voltage applications. Featuring a 680µF capacitance and a 450V DC rated voltage, it provides excellent energy storage, ripple current handling, and voltage smoothing in switching power supplies, motor drives, UPS systems, and industrial power equipment. The snap-in terminal design offers secure PCB mounting and improved mechanical stability for high-power applications.
Built with durable aluminum electrolytic technology, this capacitor delivers reliable long-term performance under continuous operation. It effectively reduces voltage ripple, filters high-frequency noise, and stabilizes DC bus voltages, making it an ideal choice for power conversion systems, renewable energy equipment, welding machines, and other high-voltage electronic circuits.
Features:
- High-voltage aluminum electrolytic capacitor.
- Large capacitance for bulk energy storage.
- Snap-in terminal design for secure PCB mounting.
- Excellent ripple current capability.
- Reliable voltage filtering and smoothing.
- Polarized construction.
- Low ESR design for efficient operation.
- Long service life.
- Suitable for high-power electronic equipment.
- Ideal for industrial and commercial applications.
Specifications:
| Specification | Value |
|---|---|
| Brand | SHDR |
| Capacitor Type | Aluminum Electrolytic Capacitor |
| Capacitance | 680µF |
| Rated Voltage | 450V DC |
| Tolerance | ±20% |
| Mounting Type | Snap-In Through-Hole |
| Polarity | Polarized |
| Terminal Type | Snap-In |
| Body Diameter | 35mm |
| Body Height | 51mm |
| Case Material | Aluminum |
| Operating Temperature | -40°C to +105°C (series dependent) |

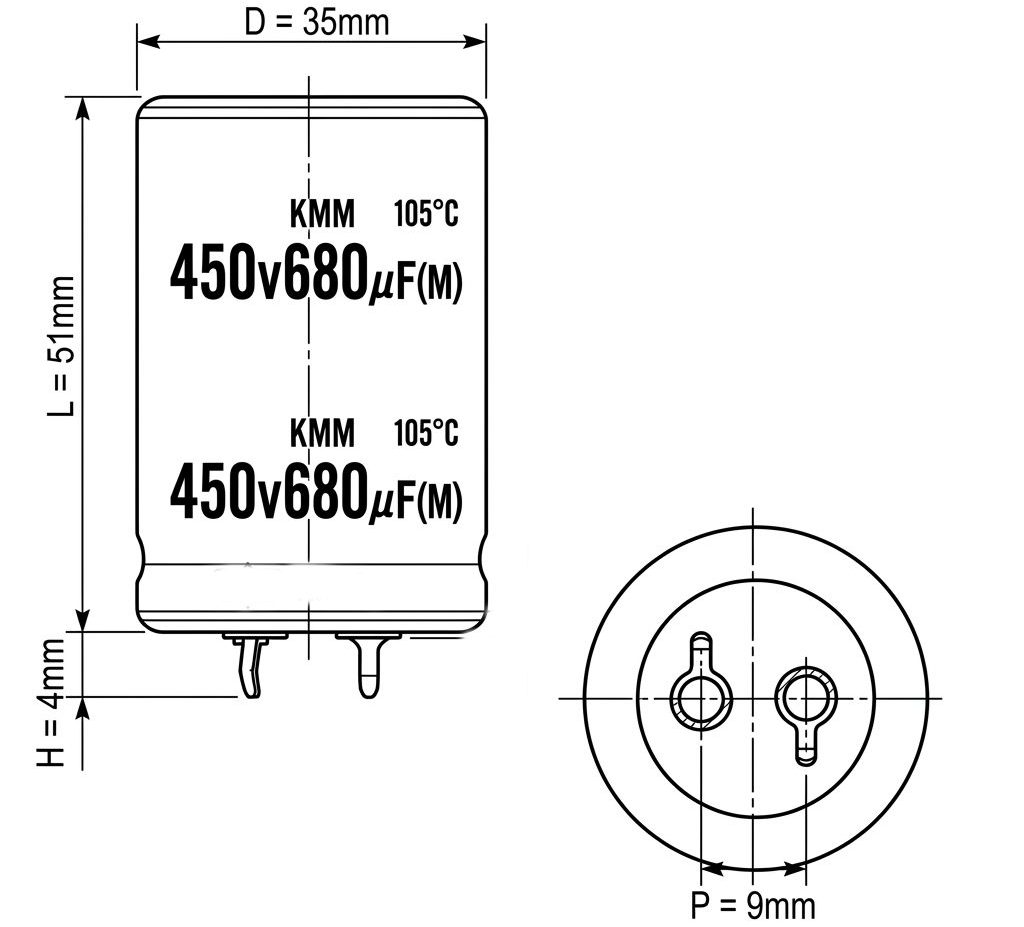

Mechanical Drawing:
Applications:
- Switching power supplies (SMPS).
- Industrial power supplies.
- DC bus filtering.
- Variable frequency drives (VFDs).
- UPS systems.
- Solar power inverters.
- Motor controllers.
- Welding equipment.
- High-power LED drivers.
- Battery charging systems.
- Renewable energy systems.
- Industrial automation equipment.
Package Includes:
- 1x SHDR Aluminum Electrolytic Capacitor 680uF 450V Snap-In 35x50mm.
