SHDR Aluminum Electrolytic Capacitor 2200UF 100V 22x40mm
SHDR Aluminum Electrolytic Capacitor 2200UF 100V 22x40mm is a radial lead polarized capacitor developed for use in power electronics, industrial control systems, audio equipment, and DC power supply applications. Its high capacitance value enables efficient energy storage and ripple suppression, making it an essential component in filtering and smoothing circuits.
Features:
- High-capacitance aluminum electrolytic capacitor.
- 2200µF capacitance value.
- 100VDC rated voltage.
- Radial through-hole mounting.
- Compact 22x40mm package size.
- Operating temperature up to 105°C

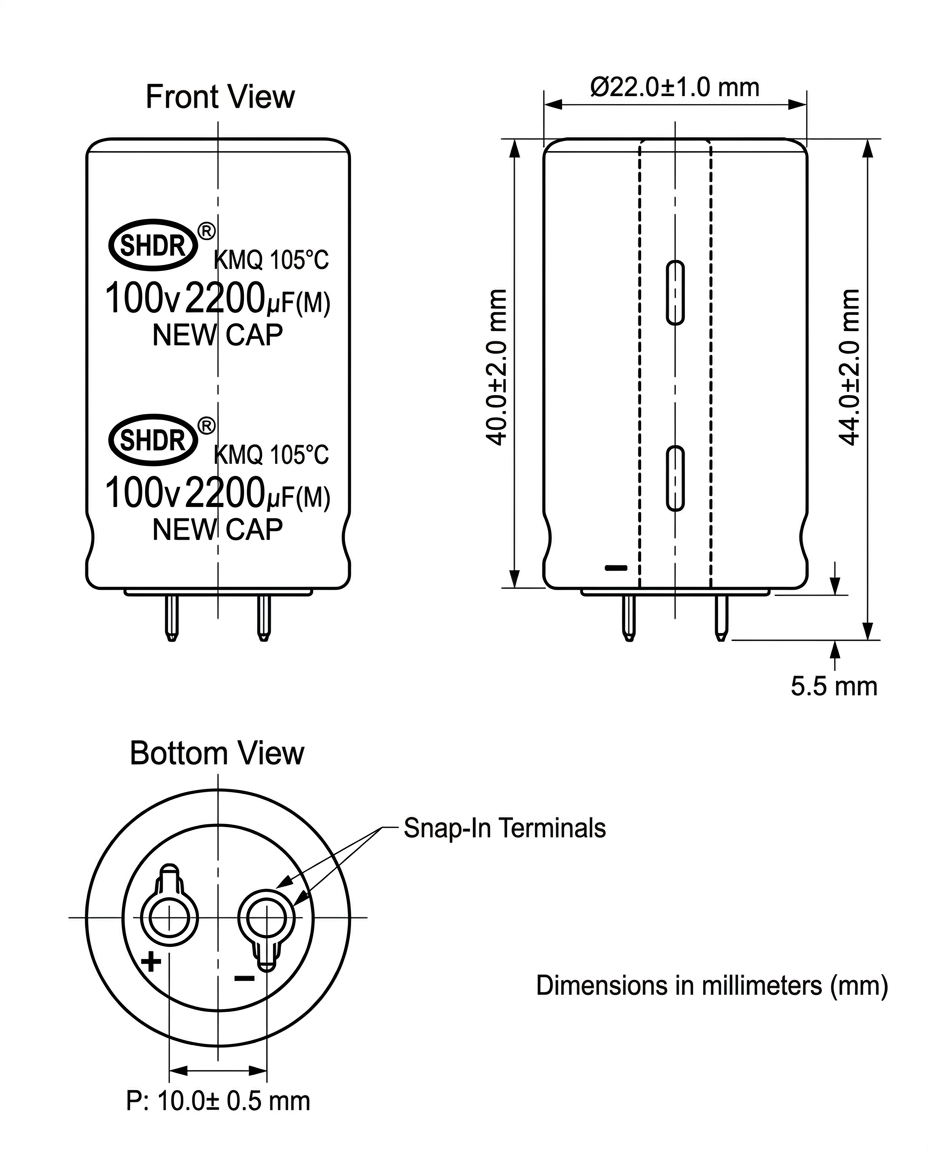

Specifications:
| Parameter | Value |
|---|---|
| Capacitance | 2200μF |
| Rated Voltage | 100VDC |
| Capacitance Tolerance | ±20% |
| Construction | Radial Can |
| Mounting Type | Snap In |
| Can Diameter | 22mm |
| Can Height | 40mm |
| Lead Spacing | Standard Radial Pitch |
| Polarity | Polar |
| Temperature Rating | 105°C |
| Series | KMQ |
| Brand | SHDR |
Applications:
- Switching power supplies.
- DC voltage filtering circuits.
- Industrial control equipment.
- Audio amplifier power stages.
- Inverter systems.
- Motor control circuits.
- LED driver power supplies.
- Energy storage applications.
- Electronic repair and maintenance.
- General-purpose electronic projects.
- Power conversion systems.
- Embedded electronic equipment.
Package Include:
1x SHDR Aluminum Electrolytic-Capacitor 2200UF 100V 22x40mm
