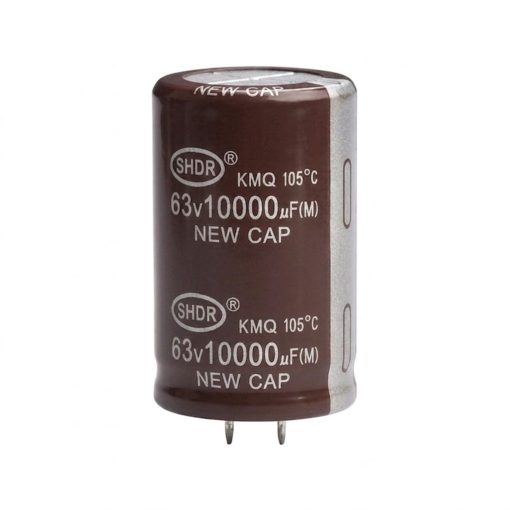

SHDR Aluminum Electrolytic Capacitor 10000uF 63V 30x51mm
The SHDR KMQ Series 10000µF 63V Aluminum Electrolytic Capacitor is a high-capacity, high-reliability component designed for power filtering and energy storage in demanding electronic environments. Belonging to the KMQ series, it is specifically engineered to withstand high operating temperatures (105°C) while maintaining stable performance.This capacitor features a Snap-In terminal design, making it ideal for secure PCB mounting in industrial and consumer power applications.
Features
- High Thermal Stability
- High Capacitance-to-Volume Ratio
- Snap-In Terminals
- Low ESR Performance
- Polarized Construction
Specifications
| Brand | SHDR |
|---|---|
| Series | KMQ |
| Capacitance | 10,000 μF |
| Voltage Rating | 63V DC |
| Tolerance | ± 20% |
| Max Operating Temp | 105°C |

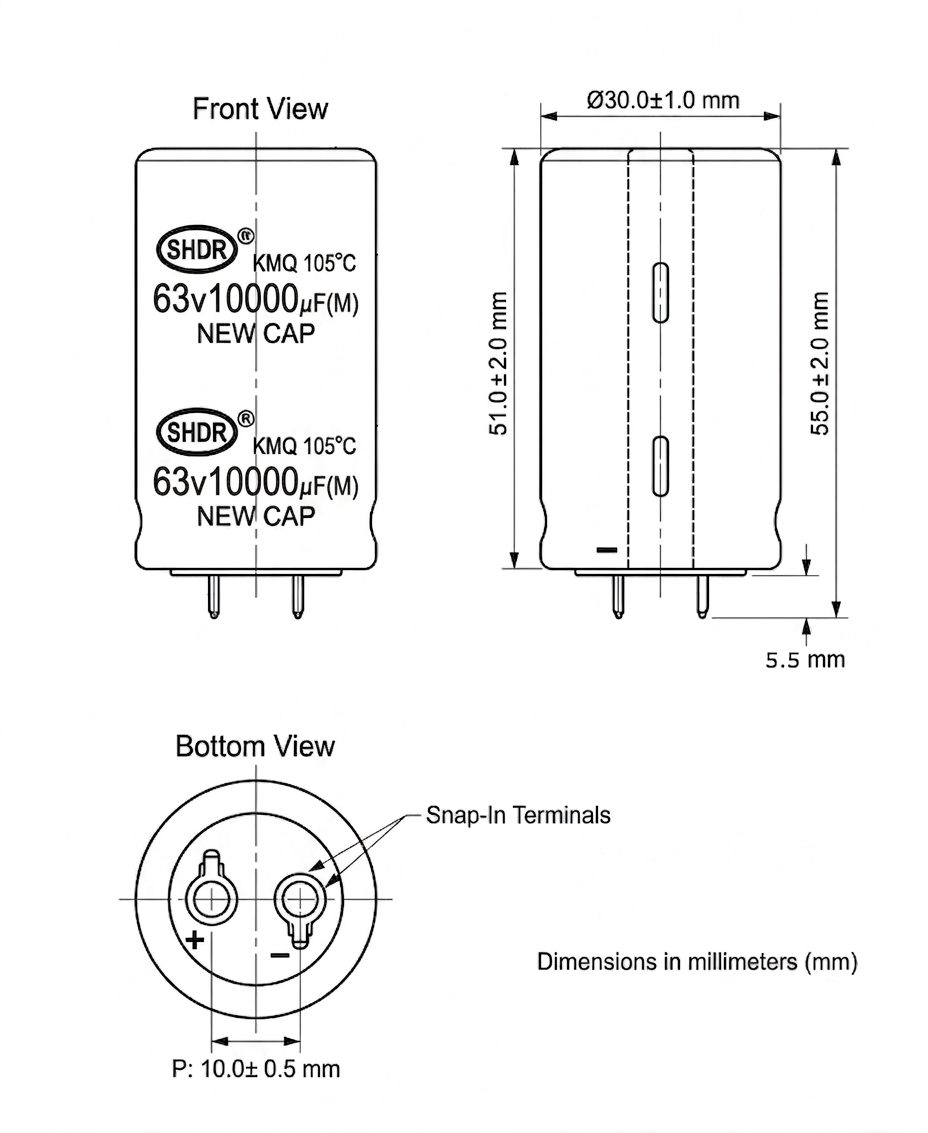

| Dimensions | 30mm x 51mm (D x L) |
| Terminal Type | Snap-In (2-Pin) |
| Lead Pitch | 10mm (Standard) |
Applications
- Power Supplies
- Audio Equipment
- Renewable Energy
- Industrial Automation
- Consumer Electronics
Package Content
- 1 x SHDR Aluminum Electrolytic Capacitor 10000uF 63V 30x51mm
