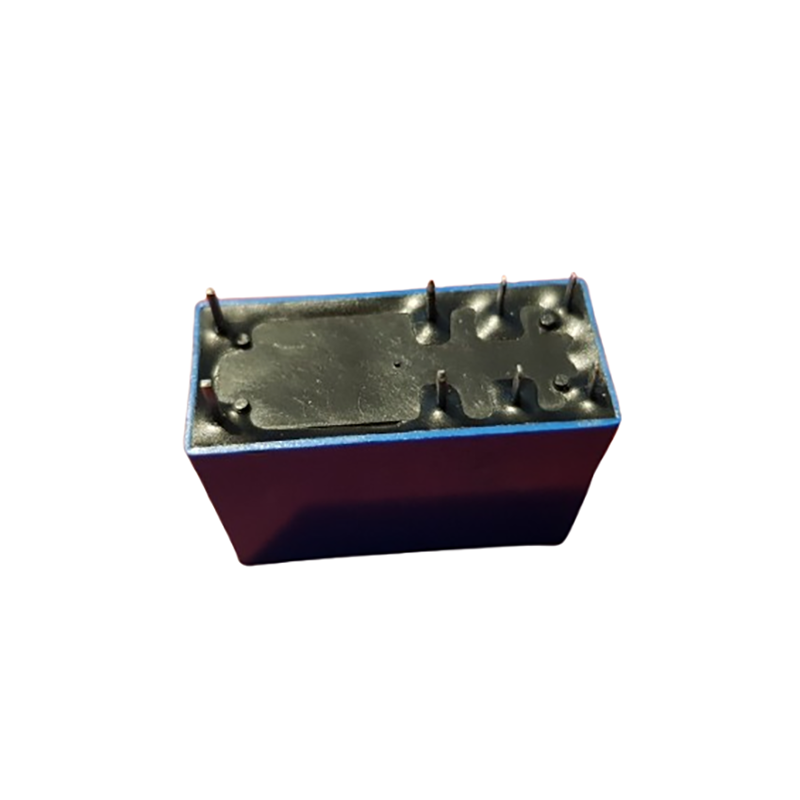

SIEMENS Relay V23100-B2012-A401 12VDC
The SIEMENS Relay V23100-B2012-A401 12 VDC is an electromechanical switching device, crafted to provide precise and reliable circuit control. Encased in a compact and robust housing, its design reflects SIEMENS’ longstanding commitment to integrating quality materials with refined engineering. Its clean lines and functional shape signal both activation integrity and ease of integration into tightly packed control systems.
Internally, the relay comprises a coil actuated at 12 volts DC, which translates electrical input into mechanical movement. This motion bridges or interrupts the internal contact, serving as a bridge between two distinct electrical domains. Whether inserted on a control board or embedded within industrial assemblies, the relay acts as a discreet yet dependable mediator in electrical orchestration.
From its thoughtful layout to its tactile responsiveness, the SIEMENS V23100-B2012-A401 evokes the legacy of purposeful industrial craftsmanship. It stands as a silent sentinel within the circuitry, stepping into action only when summoned, yet standing firm against noise, wear, or errant electrical transients. Its understated presence ensures it never overshadows the selectivity and precision it brings to any installation.
Features:
- High reliability and repeatable actuation, ensuring consistent switching operations
- Compact and space-saving form factor, suitable for dense PCB layouts
- Durable construction, built to withstand prolonged use and environmental stress
- Low-noise mechanical switching, minimizing electrical interference and wear
Specifications:
| Specification | Typical Value (from V23100-V4 series) |
|---|---|
| Coil Voltage: | 12 VDC |
| Contact Arrangement: | 1 form A (1 NO) or variations depending on variant |
| Maximum Switching Voltage: | ~175 VDC / 200 VDC/VAC peak |
| Max. Continuous Current: | ~1.2 A |
| Switching Times: | Operate ≤ 0.75 ms, Release ≤ 1.6 ms |
| Contact Resistance: | ≤ 150 mΩ |
| Insulation between coil & contact: | ~1500 VDC |
Applications:
- Telecom Signal Switching.
- Measuring and Control Systems.
- Alarm and Security Equipment.
- In-Circuit Testers.
Package Contents:
- 1x SIEMENS Relay V23100-B2012-A401 12VDC
