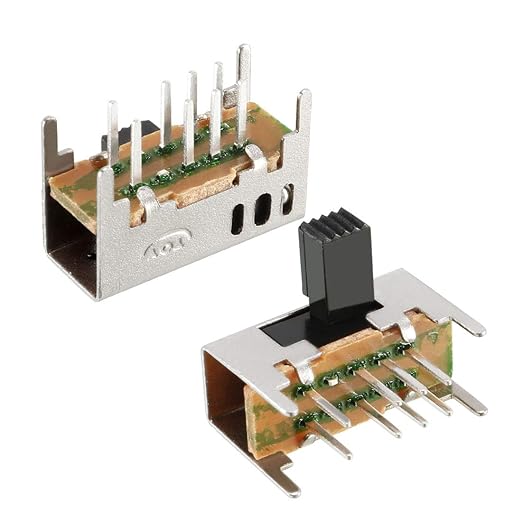

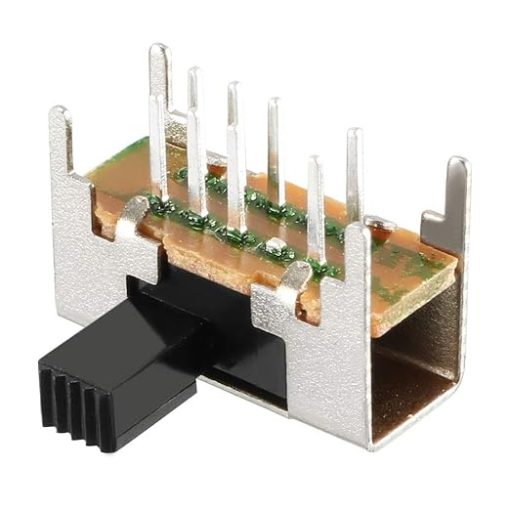

SK23D04G8 Slide Switch Right-Angle SPDT For PCB 3 Position 8 Pin
This miniature right-angle slide switch is designed for PCB mounting and features a 3-position, 8-pin configuration. This SPDT switch enables to select between three states. Ideal for compact, reliable circuit selection, this switch suits applications like mode switching in electronic devices or signal routing in audio equipment.
Features :
- 3-Position Switching.
- 8-Pin Configuration.
- Miniature Size: Compact design suitable for small electronic devices.
- Latching Mechanism: Ensures secure positioning in each state.
- Durable Construction: Steel housing enhances longevity and reliability.
Specifications :
| Parameter | Value |
|---|---|
| Product Name: | Horizontal Slide Switch |
| Position: | 3 |
| Pins Design: | 8 Pins |
| Pin Width: | 0.5 mm |
| Rating: | 50 VDC, 0.5A |
| Overall Size: | 14 mm x 14.5 mm x 6.5 mm |
| Material: | Plastic and Metal |
| Color: | As picture shown |
Applications :
- Mode Selection
- Signal Routing
- Function Selection
- Power Switching
- Configuration Settings
Package Content :
- 1x SK23D04G8 Slide Switch Right-Angle SPDT For PCB 3 Position 8 Pin
