Speaker 4Ω 3W 53×32.5mm
The Speaker 4Ω 3W 53×32.5mm is a compact dynamic speaker driver designed to convert electrical audio signals into sound. Featuring an oval diaphragm, a square mounting frame, and a double-magnet assembly, this speaker is suitable for electronic projects and equipment requiring a small-format audio output component.
Features:
- Nominal impedance of 4Ω.
- Rated power of 3W.
- Compact oval speaker driver design.

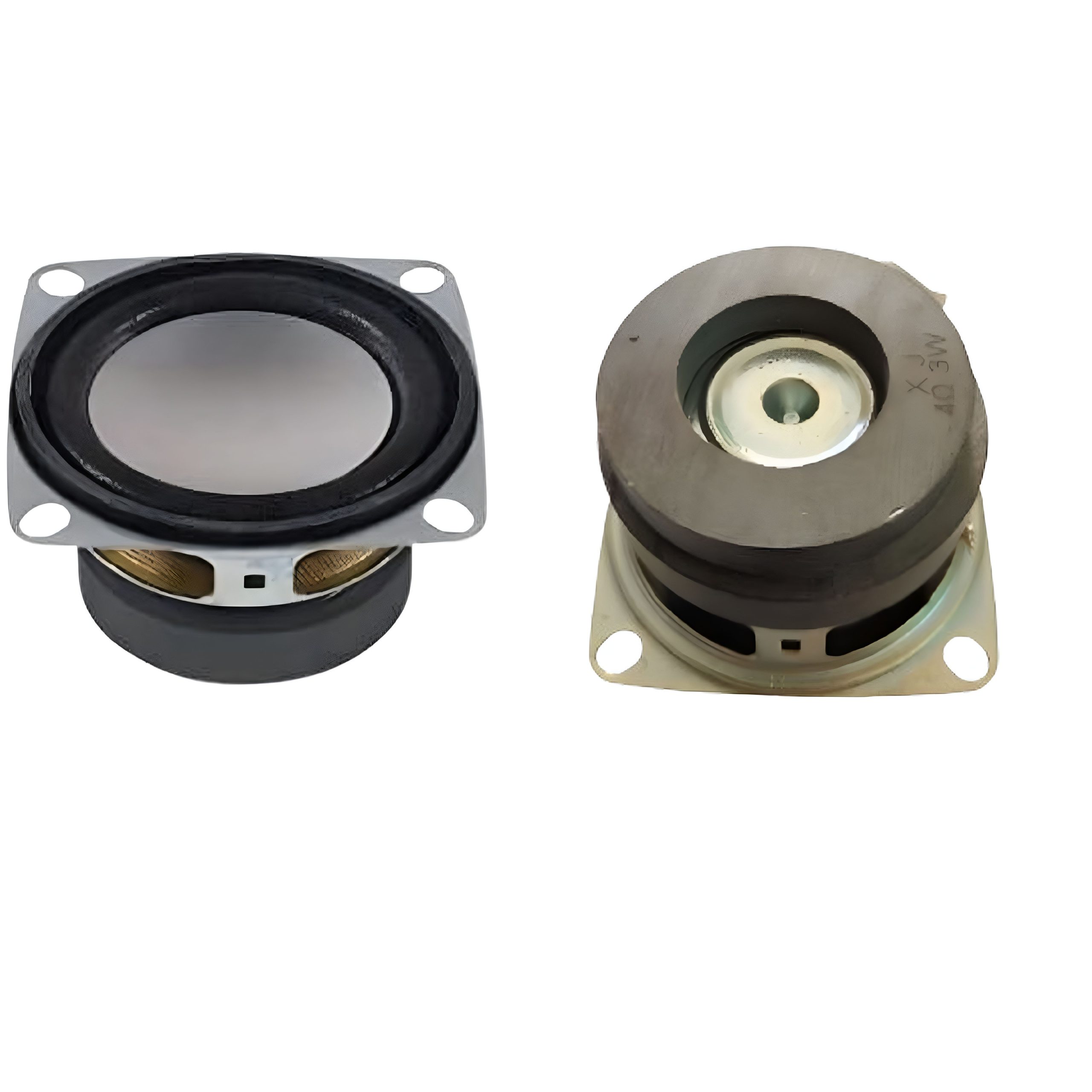

- Double-magnet assembly, as shown in the product image.
- Square mounting frame with four corner mounting holes.
- Designed for use with compatible low-power audio amplifiers.
- Suitable for compact electronic equipment and custom audio enclosures.
- Space-conscious design for embedded audio applications.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Dynamic speaker driver |
| Nominal Impedance | 4Ω |
| Rated Power | 3W |
| Dimensions | 53 × 32.5mm |
| Diaphragm Shape | Oval |
| Magnet Configuration | Double magnet |
| Mounting Frame | Square frame |
| Mounting Holes | 4 |
| Frequency Response |
0.23kHz – 20kHz |
| Sensitivity | 85dB/W |
Applications:
- Compact audio amplifier projects.
- Embedded sound output in electronic equipment.
- Educational electronics and DIY audio projects.
- Custom audio enclosures.
- Compatible replacement speaker applications.
- Small electronic devices requiring audio output.
- Prototyping and experimental sound systems.
Package Include:
1x Speaker-4Ω 3W 53×32.5mm.
