SS23D32G7 Miniature ON-OFF-ON Slide Switch DPDT 3 Position 6 Pin

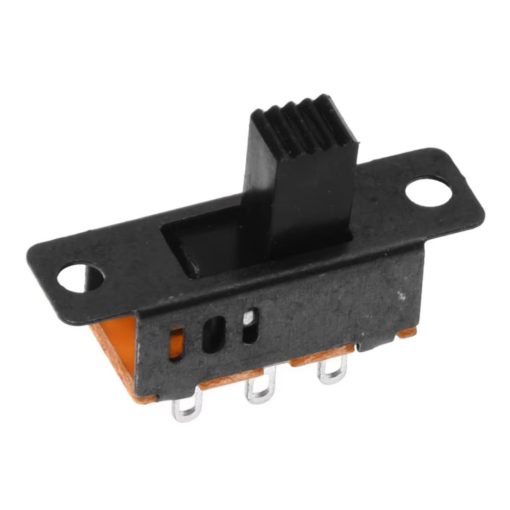

The SS23D32G7 Miniature ON-OFF-ON Slide Switch is a compact electronic switching component designed to provide precise manual control within small circuits and devices. Its miniature size makes it highly suitable for tight spaces, allowing seamless integration into compact electronic assemblies. The sliding actuator offers a smooth and controlled movement, giving a clear tactile response when shifting between positions. Built with a durable combination of plastic housing and metal contacts, it ensures stable performance and long-term usability even in frequently operated systems.
This slide switch is engineered with a dual-pole structure that allows it to manage multiple electrical paths efficiently. The three-position ON-OFF-ON configuration introduces a central neutral state, enabling more flexible control compared to standard switches. Its internal contact design supports consistent electrical connection while minimizing resistance and wear over time. Thanks to its precise construction, the switch maintains reliable operation across repeated use, making it suitable for both prototyping environments and finalized electronic products.
Features:
- DPDT configuration: Offers three positions for flexible circuit control.
- Compact size: Easy to integrate into small devices.
- Solder tag terminals: Allows for reliable connections.
- Durable construction: Ensures long-lasting performance.
Specifications:
| Parameter | Value |
|---|---|
| Part No: | SS23D32G7 |
| Material: | Plastic and Metal |
| Product Name: | Slide Switch |
| Contact Type: | DPDT |
| Voltage Max: | 50V |
| Current Max: | 0.5A |
| Position: | 3 |
| Terminal Pins: | 6 |
| Contact Resistance: | 30M |
| Color: | Black |
| Pin Center Distance: | 4 mm |
| Length: | 23.3 mm |
| Width: | 7.1 mm |
| Height of The Body: | 7 mm |
| Height Above The Rocker To The pins: | 17.1 mm |
| Dimensions Of the Mounting Hole: | 15.5 (L) x 7.2 (W) |

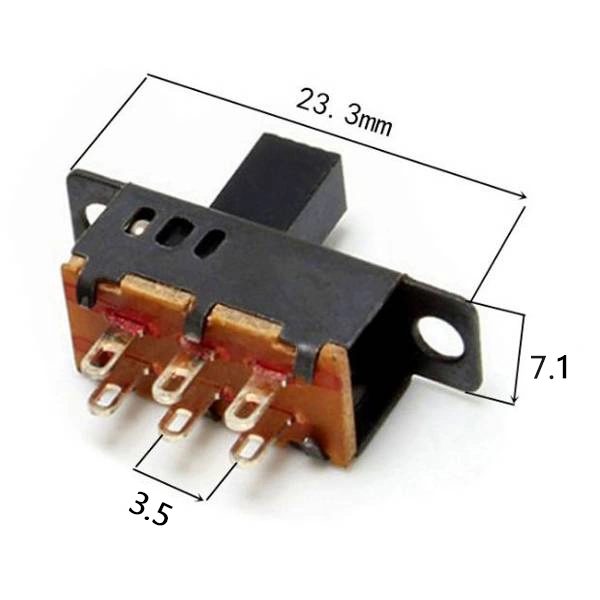

Drawing and Dimensions:
Applications:
- Power Mode Selection.
- Signal Path Switching.
- Audio Source Selection.
- Battery Switching Control.
- Circuit Testing and Prototyping.
- Device Function Selection.
- Embedded System Control.
- Lighting Mode Control.
- DIY Electronics Projects.
- Control Panel Switching.
Package Contents:
- 1x SS23D32G7 Miniature ON-OFF-ON Slide Switch DPDT 3 Position 6 Pin
