Specifications:
| Attribute | Value |
| Category | Connectors/Screw terminal |
| Datasheet | KF128-5-0-2P |
| RoHS | |
| Wire Gauge – mm? | 2.5 |
| Current Rating (Max) | 10A |
| Operating Temperature Range | -40℃~+105℃ |
| Voltage Rating (Max) | 300V |
| Color | Green |
| Mounting Style | Straight pin |
| Pitch | 5mm |
| Number of Rows | 1 |
| Wire Gauge – AWG | 12~22 |
| Number of PINs Per Row | 2 |

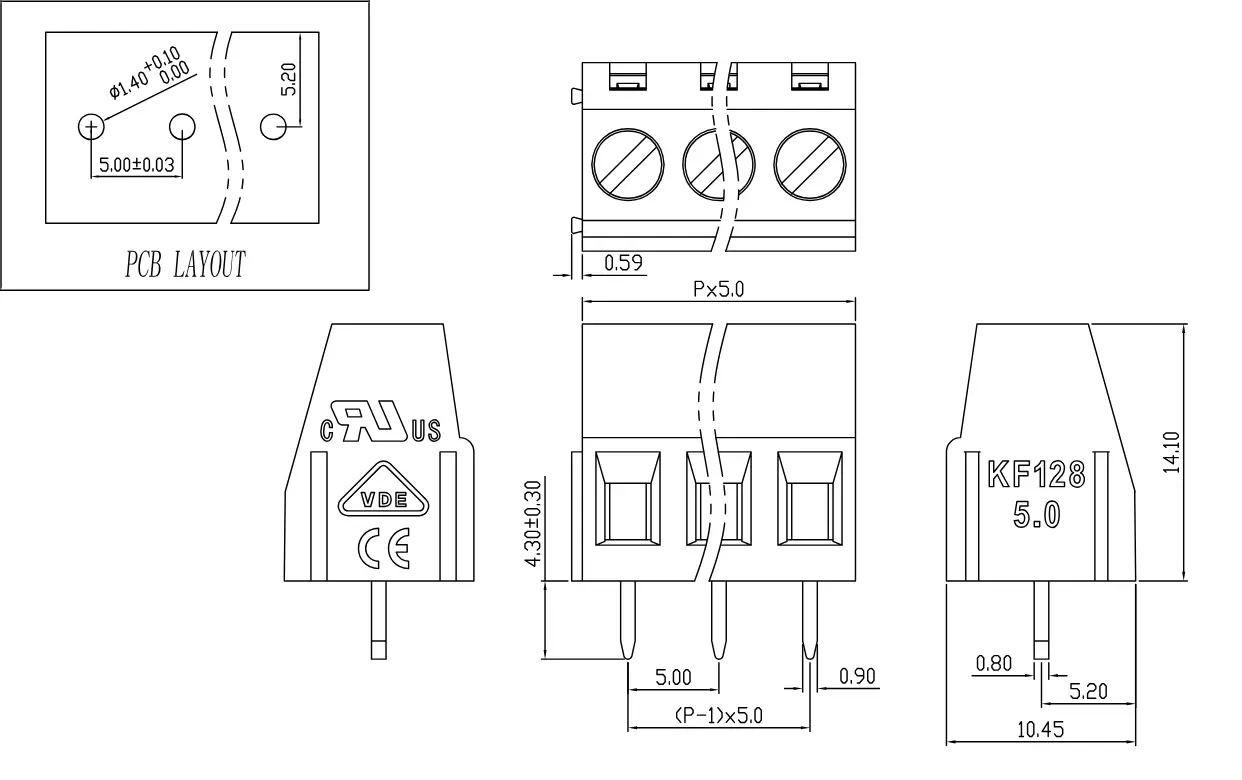

Drawing:
