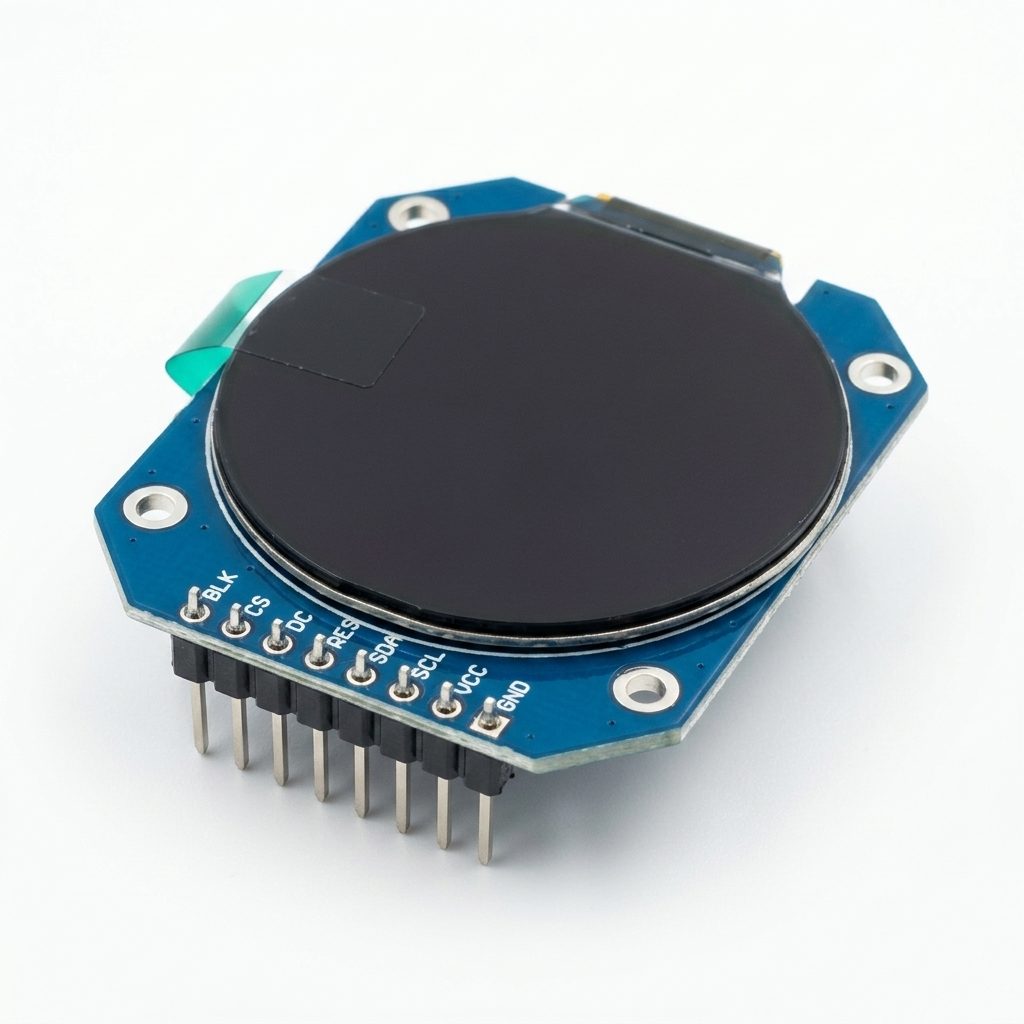

TFT SPI Interface LCD Module 1.28 inch Round Display RGB 240X240 8PIN
The 1.28 Inch Round TFT SPI LCD Module is a full-color IPS display featuring a 240 × 240 pixel RGB resolution and a GC9A01 display driver. Its circular design makes it an excellent choice for modern user interfaces such as smartwatches, smart home controllers, digital gauges, and portable instruments. The SPI communication interface minimizes the number of required GPIO pins, making it easy to interface with popular microcontrollers and development boards.
The module provides vibrant colors, wide viewing angles, and smooth graphics rendering thanks to its IPS display technology. It supports 3.3V and 5V systems on many breakout boards and includes an 8-pin header for straightforward wiring. The display is widely supported by Arduino, ESP32, STM32, and Raspberry Pi libraries, making it suitable for both beginners and professional embedded system developers.
Features:
- 1.28-inch round IPS TFT display.
- 240 × 240 RGB resolution.
- Full-color display with vivid image quality.
- SPI serial communication interface.
- Wide viewing angle.
- Compact circular design.
- GC9A01 display controller.
- Fast refresh rate.
- Low pin count for easy interfacing.
- Compatible with Arduino, ESP32, STM32, and Raspberry Pi.
- Breadboard-friendly pin header.
- Suitable for embedded graphical user interfaces.
Specifications:
| Specification | Value |
|---|---|
| Product Type | TFT SPI Interface LCD Display Module |
| Display Size | 1.28 Inch |
| Display Shape | Round |
| Resolution | 240 × 240 Pixels |
| Display Type | IPS TFT LCD |
| Display Colors | RGB, 65K Colors |
| Driver IC | GC9A01 |
| Interface | SPI |
| Number of Pins | 8 |
| Active Display Area | 32.4 × 32.4 mm |
| Viewing Angle | IPS Wide Viewing Angle |
| Operating Voltage | 3.3V–5V DC |
| PCB Mounting | 4 Mounting Holes |

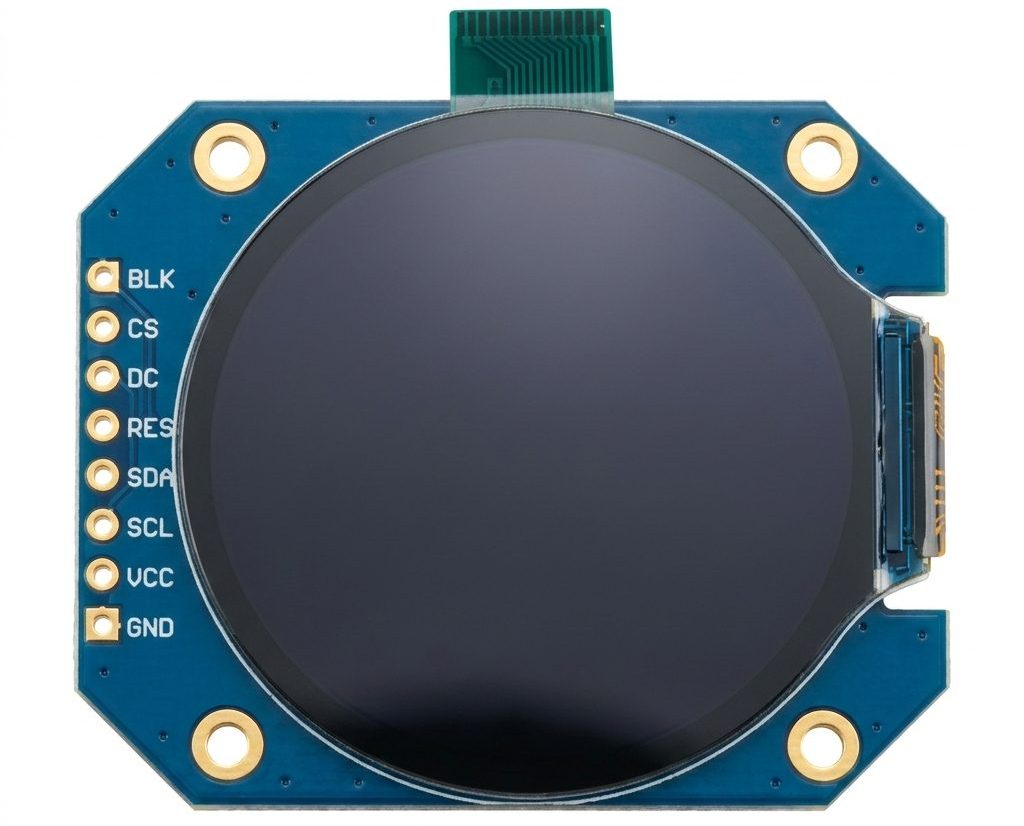

Pinout:
| Pin | Description |
|---|---|
| GND | Ground |
| VCC | Power Supply |
| SCL (CLK) | SPI Clock |
| SDA (DIN/MOSI) | SPI Data Input |
| RES | Display Reset |
| DC | Data / Command Select |
| CS | Chip Select |
| BLK | Backlight Control |
Applications:
- Smartwatch displays.
- ESP32 GUI projects.
- Arduino display projects.
- Raspberry Pi interfaces.
- STM32 embedded systems.
- Digital instruments.
- Smart home control panels.
- IoT devices.
- Industrial control displays.
- Portable measurement equipment.
- Wearable electronics.
- Custom graphical user interfaces.
Package Includes:
- 1x TFT SPI Interface LCD Module 1.28 Inch Round Display RGB 240×240 8 Pin.
- 1x Pin Header (8 Pin).
