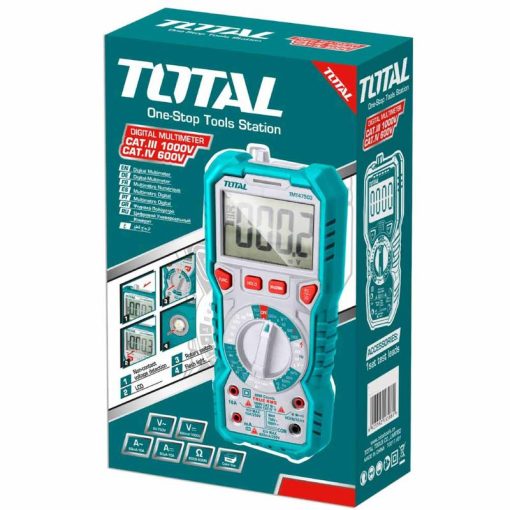

6000 digits RMS Digital Multimeter.
• DC voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.5% +3).
• AC voltage: 6V / 60V ± (0.8% + 3) 600V / 750V ± (1.0% + 10). DC current: 60μA / 60mA / 600mA ± (0.8% + 3) 10A ± (1.2% +3).
• AC current: 60mA / 600mA ± (1.0% + 3) 10A ± (1.5% +3).
• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ± (0.8% +3). 60MΩ ± (1.0% + 30).
• Capacitance: 10nf ± (4.0% + 30) 100nf / 1000nf / 10μF / 100μF / 1000μF ± (4.0% + 3) 10mf / 100mf ± (5.0% + 3).
• Frequency: 10Hz / 100Hz / 1000Hz / 10KHz / 100KHz / 1000KHz / 10MHz ± (1.0% + 3).
• Duty cycle: 1% ~ 95% ± (2.0% +3).
Data sheet
| *Name | Digital multimeter |
| Where to use it? | Automotive, Household / Workshop, General Manufacturing, Construction |
| Warning | Read all safety warnings and follow all instructions. |
| Storage | If you have data storage |
| Auto off | Yes |
| Quantity x Packaging | 1 |
| Capacity | Capacitance: 10nf ± (4.0% + 30) 100nf / 1000nf / 10μF / 100μF / 1000μF ± (4.0% + 3) 10mf / 100mf ± (5.0% + 3). |
| Capacity (F) | Non-contact Voltage Detection. |
| features | Industrial, Diode Test. |
| Certifications | EC |
| Work cycle | Duty cycle: 1% ~ 95% ± (2.0% +3). |
| Product code | TMT47503 |
| Colour | Turquoise |
| DC current (A) | 60μA / 6mA / 60mA / 600mA ± (0.8% + 3), 10A ± (1.2% + 3) |
| Frequency (Hz) | 10Hz / 100Hz / 1000Hz / 10KHz / 100KHz / 1000KHz / 10MHz ± (1.0% + 3). |
| Calibrator Group | Digital |
| Low battery indication | Yes |
| LED indicator | Yes |
| LCD backlight | Yes |
| Brand | TOTAL TOOLS |
| Material | Plastic – Metal |
| screen | LCD showing 6000 digits |
| Weight (Kg) | 0.614 Kg |
| Presentation | Color Box |
| Origin | Imported |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ± (0.8% + 3), 60MΩ ± (1.0% + 3) |
| Sold for | Unit |
| Type | Voltmeter / Multimeter |
| Applications | Building |
| AC voltage (V) | 6V / 60V / 600V / 750V ± (0.8% + 3) |
| DC voltage (V) | 600mV / 6V / 60V / 600V / 1000V ± (0.5% + 3) |
