Tr-11 Arduino advanced starter learning kit

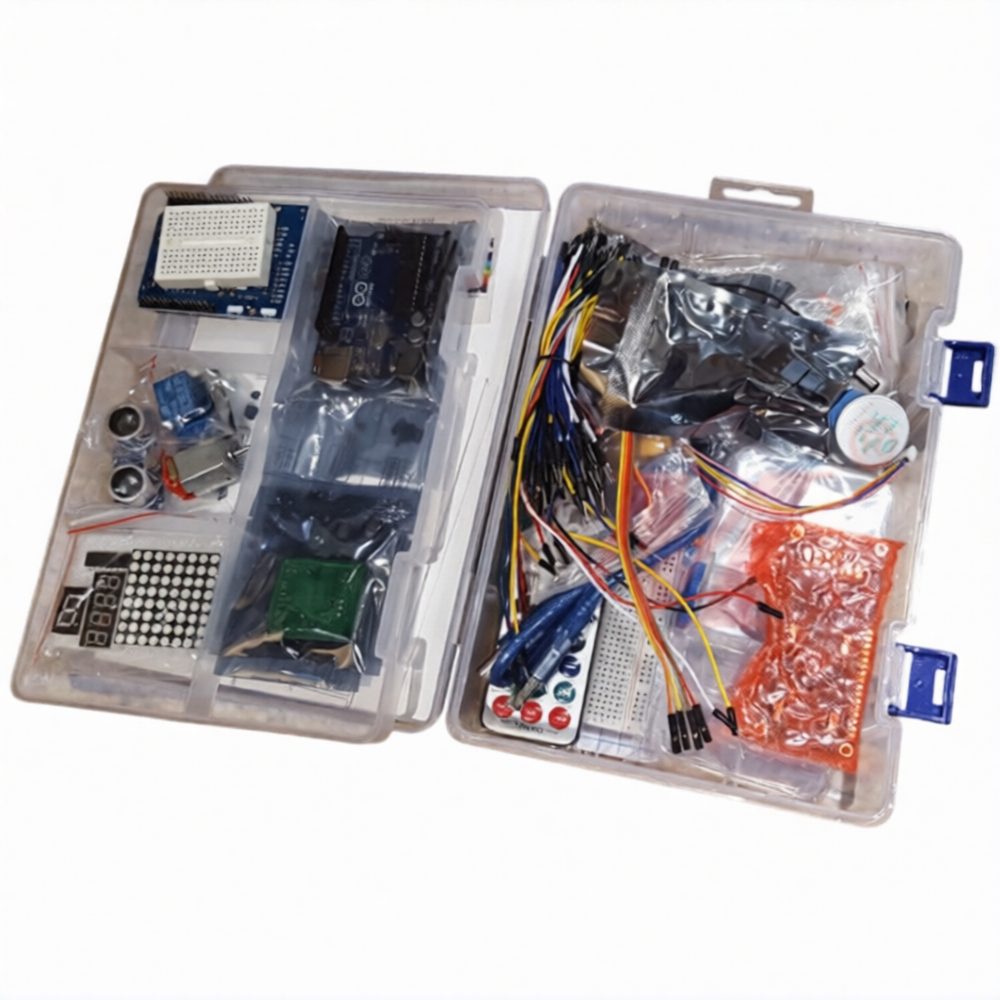

The Tr-11 Arduino Advanced Starter Learning Kit is an all-in-one package designed for beginners and intermediate learners who want to master Arduino programming and electronics. It includes the genuine Arduino Uno Rev3 board alongside a wide variety of input/output devices such as ultrasonic sensors, infrared remote control, RFID reader, MPU-6050 gyroscope/accelerometer, joystick module, and multiple motors (servo, stepper, DC). The kit also provides essential passive components like resistors, capacitors, LEDs, transistors, diodes, and a large breadboard for prototyping. Everything is organized in a durable double-layer clear plastic storage box.
With Tr-11 Arduino, you can build projects ranging from simple blinking LED circuits to complex robotics and sensor-based systems. The included 16×2 LCD, 8×8 LED matrix, 4-digit 7-segment display, and RGB LED allow you to create visual feedback interfaces. The stepper motor with ULN2003 driver, L293D motor driver, and SG90 servo enable motion control projects. Complete sets of male-to-female, female-to-female, and male-to-male jumper wires, along with a 9V battery and DC plug, ensure you have everything needed to start immediately. This kit is ideal for schools, hobbyists, and self-learners following online Arduino tutorials.
Features:
- All-in-one Arduino learning solution.
- Includes original Arduino Uno Rev3 compatible board.
- Wide variety of sensors for environmental and motion sensing.
- Multiple actuators: servo, stepper, DC motor, relay, buzzer.
- Visual output devices: LCD, LED matrix, 7-segment displays, RGB LED.
- Comprehensive set of resistors, capacitors, LEDs, transistors, and diodes.
- Large 400-point breadboard for circuit prototyping.
- Complete jumper wire set (MM, MF, FF) for flexible connections.
- Infrared remote control and receiver for wireless control projects.
- RFID module for identification and access control experiments.
- 6-axis IMU (MPU-6050) for orientation and motion sensing.
- Storage box included for organization.
- Step-by-step tutorial support (online resources).
Specifications:
| Parameter | Value |
|---|---|
| Kit Name | Tr-11 Arduino Advanced Starter Learning Kit |
| Main Controller | Arduino Uno Rev3 (compatible) |
| Total Components | 50+ pieces |
| Operating Voltage (Arduino) | 5V DC (via USB) or 7-12V (via DC jack) |
| Logic Level | 5V |
| Compatibility | Arduino IDE, C/C++ |
| Included Sensors | Ultrasonic (HC-SR04), IR receiver, RFID (MFRC522), MPU-6050 (6-axis), LDR, NTC thermistor |
| Included Actuators | SG90 servo, 28BYJ-48 stepper, F130 DC motor, 1-channel relay, magnetic buzzer |
| Display Modules | 16×2 LCD (blue), MAX7219 8×8 LED matrix, 0.56″ 4-digit 7-segment (common anode), single 7-segment (common cathode) |
| Passive Components | LEDs (blue, green, yellow, red, white, RGB), resistors (220Ω to 1MΩ), capacitors (22pF to 100μF), transistors (2N2222, BC547, BC557), diode (1N4007), potentiometer (10kΩ) |
| Breadboard | 400 points |
| Jumper Wires | 65-piece set (assorted) + 20 female-to-female + 20 male-to-female |
| Power Source | 9V PHILIPS battery + DC plug (included) |
| Storage Box | Double layer clear plastic, 230x160x60mm |
Applications:
- Learning Arduino programming and electronics fundamentals.
- Robotics projects (line following, obstacle avoidance, remote control).
- Home automation (relay control, sensor monitoring).
- Data logging and measurement systems.
- Interactive art and games using LEDs, displays, and joystick.
- RFID-based access control systems.
- Motion tracking and gesture recognition (MPU-6050).
- Educational demonstrations for STEM classes.

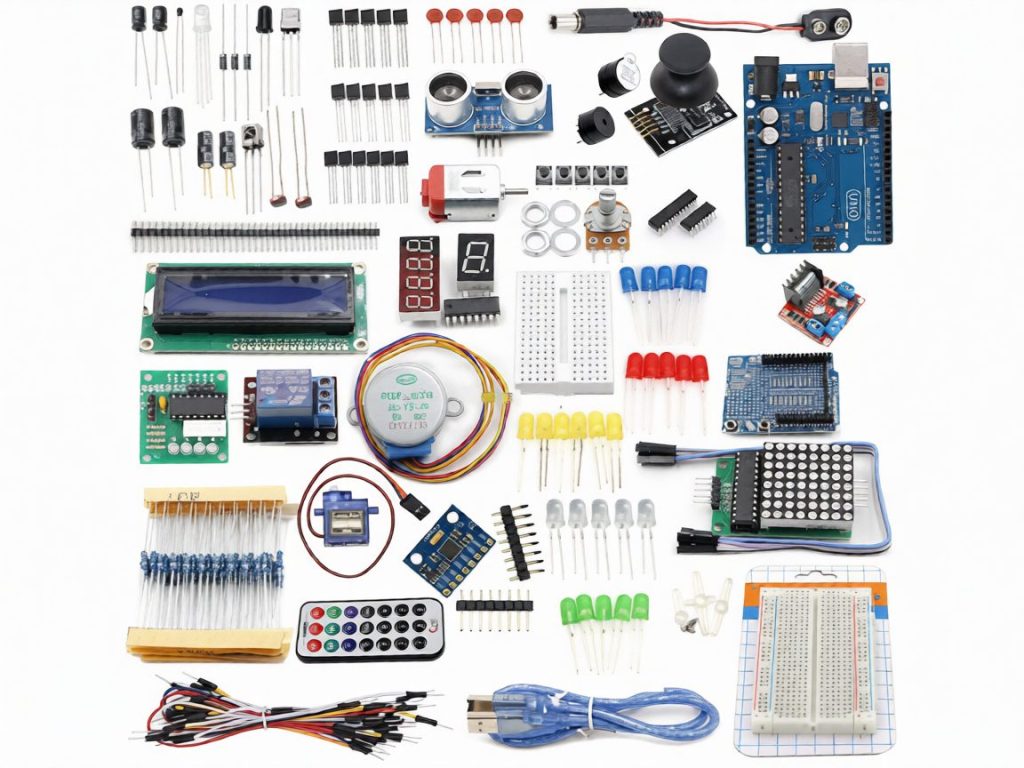

Packages Included:
- 1x Breadboard 400 points.
- 1x USB Cable A-Type to B-Type 1.2M.
- 1x Arduino Uno Rev3.
- 1x Infrared Remote Control and Receiver.
- 1x Jumper Wires for BreadBoard & Arduino (65) Pcs.
- 1x Micro Servo SG90 0:180 Degree.
- 1x F130 DC Motor 5V.
- 1x RFID module 13.56 MHz Card Reader MFRC522 Reader/Writer.
- 5x 2N2222 NPN Bipolar Transistor TO-92.
- 5x BC547 Bipolar Junction Transistors – BJT NPN 45V 100mA.
- 5x BC557 Bipolar Junction Transistors – BJT PNP 45V 100mA.
- 2x Photo Resistor Sensor LDR 5mm GL5528 8kΩ~20kΩ P=3.4mm.
- 5x 1N4007 General Purpose Diode 1A 1.1V@1A 1kV DO-41.
- 1x 28BYJ-48 Stepper Motor 5VDC 0.1A 0.03Nm.
- 1x Stepper Motor Driver Board ULN2003.
- 1x IC Shift 74595 Register 8-Bit Serial to Serial/Parallel.
- 1x L293D Quadruple Half-H Driver DIP-16.
- 1x Relay Module (1 Channel) Active High 5V.
- 1x Ultrasonic Wave Detector Sensor 3.3V~5V HC-SR04.
- 1x Character LCD Blue 16×2.
- 5x Blue Led 5mm ((Transparent)).
- 5x Green LED 5mm.
- 5x Yellow LED 5mm.
- 5x Red LED 5mm.
- 5x White Led 5mm.
- 1x RGB Clear LED Common Cathode 5mm.
- 1x Metal Potentiometer 10K Ohm 3-Pin.
- 1x NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950).
- 1x Magnetic Buzzer 5V 12mm 2 Pin.
- 5x Ceramic Capacitor 22pF 50V.
- 5x Ceramic Capacitor 100nF 50V.
- 2x Capacitor 10uF 50V.
- 2x Capacitor 100uF 50V.
- 5x Mini Push Button 2 pin 6x6x4.3mm.
- 10x Carbon Resistor 220Ω 0.25W Through Hole.
- 10x Carbon Resistor 330Ω 0.25W Through Hole.
- 10x Carbon Resistor 1kΩ 0.25W Through Hole.
- 10x Carbon Resistor 10kΩ 0.25W Through Hole.
- 10x Carbon Resistor 100kΩ 0.25W Through Hole.
- 10x Carbon Resistor 1MΩ 0.25W Through Hole.
- 1x Male Dc Plug to 9V Battery Cap.
- 1x PHILIPS Battery 6F22L1F/97 9V (PVC)Shrink.
- 10x Jumper Wire 20 cm (Female To Female)Pin.
- 10x Jumper Wire 20 cm (Male to Female) Pin.
- 1x MAX7219 8X8 Dot LED Matrix Display Module FC-16 Red solder.
- 1x Four Digit 7 Segment Red Led Display 0.56 inch 5461BS Common Anode.
- 1x Segment 0.56 inch-7 (Common Cathode -Red).
- 1x MPU-6050 IMU Sensor Module with 6-Axis (Gyroscope, Accelerometer).
- 1x Joystick Module X-Y.
- 1x Pin Headers Male 2.54mm : 40-Pin,Straight, Red, 11mm.

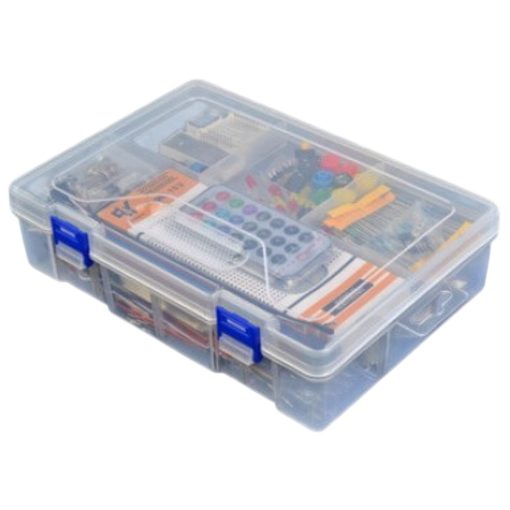

- 1x Double Layer Clear Plastic Box 230x160x60mm.
