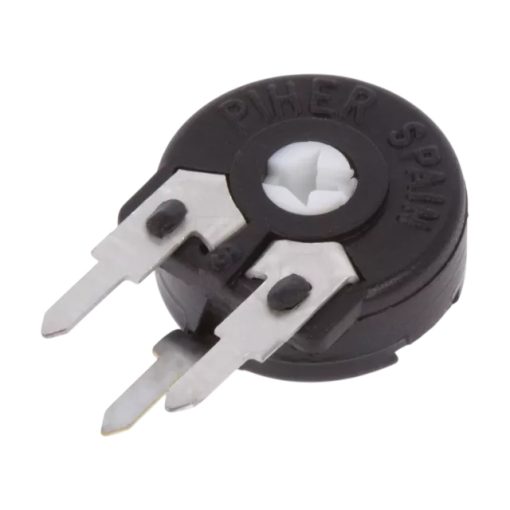

Trimmer Potentiometer PT10L-H2.5 10mm 22KΩ
Trimmer Potentiometer PT10L-H2.5 10mm 22KΩ is a precision through-hole variable resistor designed for reliable circuit tuning and calibration applications.
4.50 EGP
Buy NowTrimmer Potentiometer PT10L-H2.5 10mm 22KΩ
The Trimmer Potentiometer PT10L-H2.5 10mm 22KΩ is a high-quality adjustable resistor from the PT-10 series, designed for precise tuning and calibration in electronic circuits. Manufactured using a carbon resistive element, this potentiometer ensures stable electrical performance, cost efficiency, and reliable operation across a wide range of applications.
Features:
- Compact 10mm size for efficient PCB space utilization.
- Carbon resistive element for stable and reliable performance.
- Linear taper for smooth and predictable adjustment.
- Side adjustment design for easy calibration access.
Specifications
| Parameter | Value |
|---|---|
| Series | PT-10 |
| Resistance | 22KΩ |
| Tolerance | ±20% |
| Power Rating | 0.15W |
| Maximum Voltage | 200VDC |
| Taper | Linear |
| Mounting Type | Through Hole |
| Element Type | Carbon |
| Operating Temperature | -25°Cto+70°C |
| Mechanical Rotation | 235°±5° |
| Electrical Rotation | 220°±20° |
Applications:
- Precision calibration of analog circuits and sensor interfaces.
- Gain and offset adjustment in operational amplifier stages.
- Volume, tone, and balance control in audio equipment.
- Voltage regulation and fine-tuning in power supply modules.
- Frequency and signal adjustment in RF and communication devices.
- Calibration of measurement instruments and control systems.
