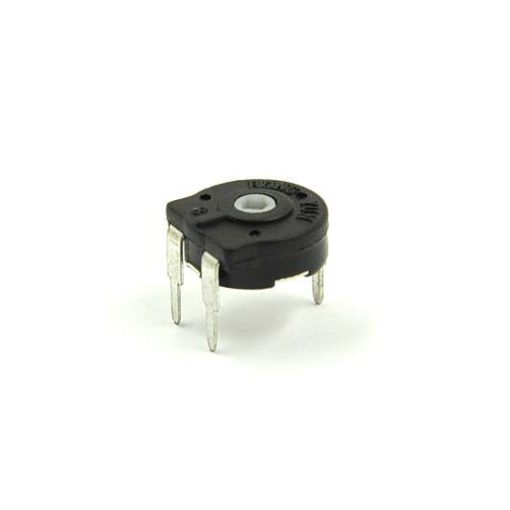

Trimmer Potentiometer PT10M-V10 10mm 5kΩ 3 Pins Through Hole
The Trimmer Potentiometer PT10M-V10 10mm 5kΩ 3 Pins Through Hole is a compact and reliable variable resistor designed for precision tuning and calibration in electronic circuits. Built with a carbon resistive element and a durable housing, this potentiometer provides stable performance and long operational life, making it ideal for both industrial and consumer electronics applications.
Features:
- Compact 10mm size suitable for PCB mounting applications.
- Through-hole design for secure and stable installation.
- 5kΩ resistance with linear taper for precise control.
- Carbon resistive element for reliable performance.
- Smooth rotational adjustment with low noise output.
Specifications:
| Parameter | Value |
|---|---|
| Model | PT10M-V10 |
| Resistance | 5kΩ |
| Resistance Tolerance | ±20% |
| Taper Type | Linear |
| Rated Power | 0.15W |
| Maximum Voltage | 200VDC |
| Residual Resistance | ≤20Ω |
| Electrical Rotation Angle | 220°±20° |
| Mechanical Rotation Angle | 235°±5° |
| Operating Temperature | -25°C~+70°C |
| Mounting Type | Through-hole |
| Number of Pins | 3 |
Applications:
- Precision calibration of analog circuits and sensor interfaces.
- Gain and offset adjustment in operational amplifier stages.
- Volume, tone, and balance control in audio equipment.
- Voltage regulation and fine-tuning in power supply modules.
- Frequency and signal adjustment in RF and communication devices.
- Calibration of measurement instruments and control systems.
Package Include:
1x Trimmer Potentiometer PT10M-V10 10mm 5kΩ 3 Pins Through Hole.
