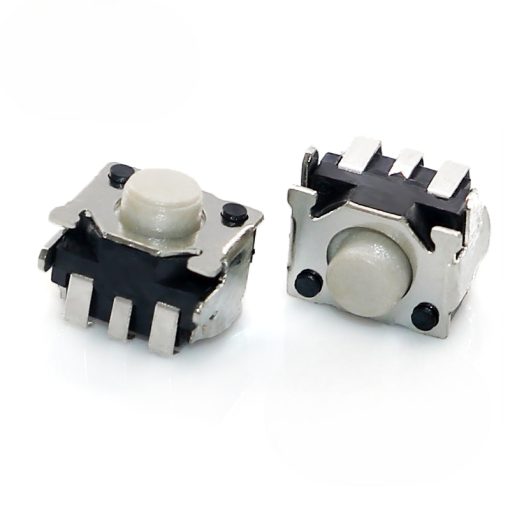

TS-3501 SMD Tactile Side Push Button 3x5mm
The TS-3501 SMD Tactile Side Push Button 3x5mm 12VDC 50mA is a compact surface-mount momentary switch designed for side-actuated input in space-constrained electronic applications. Its 3mm × 5mm footprint makes it ideal for compact PCB layouts, especially where vertical space is limited.
Features:
- Side push (right-angle) actuation design.
- Compact 3x5mm SMD footprint.
- Normally open (momentary) operation.
- Standard rating 12VDC 50mA.
- Reliable tactile feedback response.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | TS-3501 |
| Switch Type | Tactile Push Button (Side Actuated) |
| Mounting Type | SMD (Surface Mount) |
| Contact Type | Normally Open (NO) |
| Rated Voltage | 12VDC |
| Rated Current | 50mA |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥100MΩ |
| Operating Force | ~250±50gf |
| Mechanical Life | ≥30,000 cycles |
| Operating Temperature | -30°C to70°C |
Applications:
- Remote controls and keypads.
- IoT and smart devices.
- Consumer electronics interfaces.
- Automotive key systems and panels.
- Embedded systems and development boards.
- Portable electronic devices.
Package Include:
1x TS-3501 SMD Tactile Side Push Button 3x5mm
