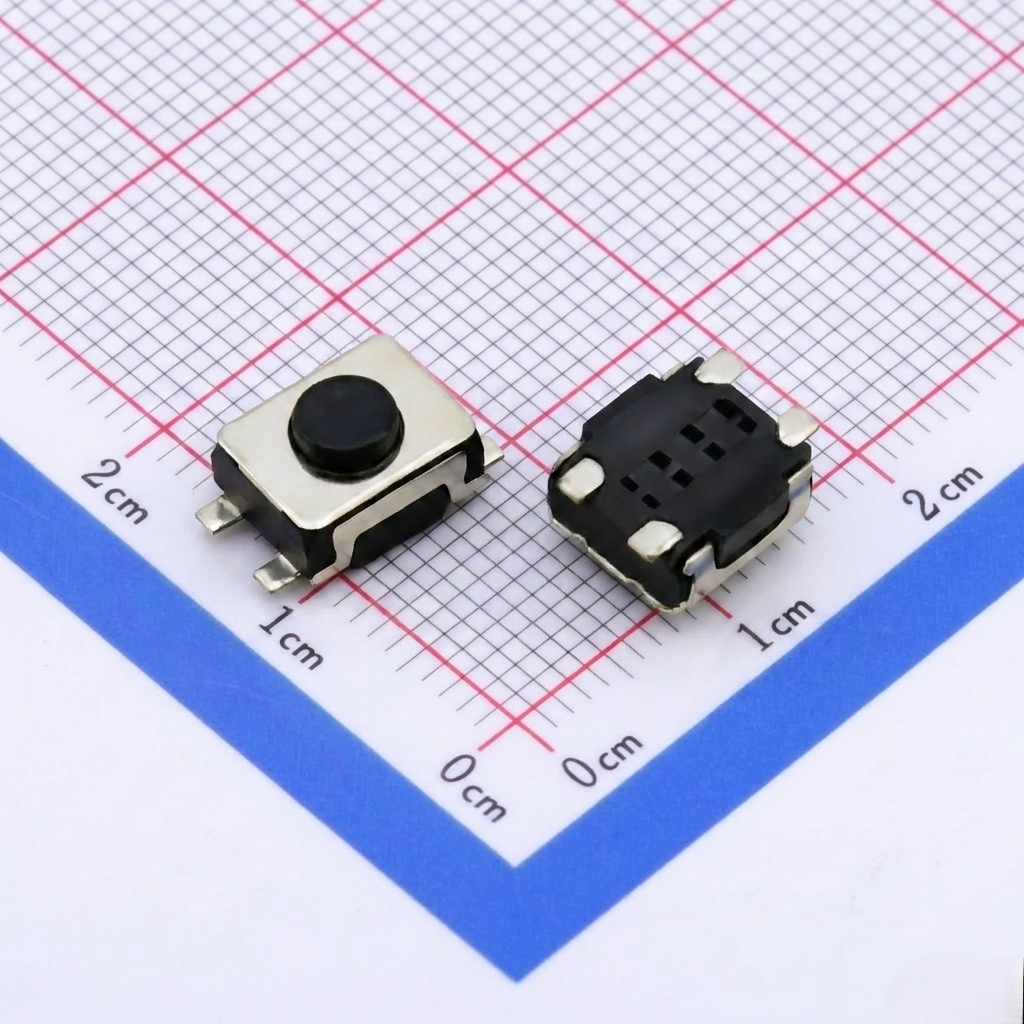

TS-3507H SMD Tactile Push Button 4 Pin 3x4x2mm
The TS-3507H SMD Tactile Push-Button 4 Pin 3x4x2mm 12VDC 50mA is a miniature surface-mount momentary switch designed for compact electronic circuits requiring reliable user input. With its small footprint of 3mm × 4mm and low profile height of 2mm, it is ideal for high-density PCB layouts and portable electronic devices.
Features:
- Compact SMD tactile push button design.
- 4-pin configuration for stable PCB mounting.
- Normally open (momentary) switching operation.
- Low profile height of 2mm.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | TS-3507H |
| Switch Type | Tactile Push Button (Momentary) |
| Mounting Type | SMD (Surface Mount) |
| Number of Pins | 4 |
| Contact Type | Normally Open (NO) |
| Rated Voltage | 12VDC |
| Rated Current | 50mA |
| Operating Force | ~160gf to260gf |
| Travel Distance | ~0.2mm |
| Mechanical Life | ≥100,000 cycles |
| Dimensions | 3mm × 4mm × 2mm |
Applications:
- Consumer electronics control buttons.
- Embedded systems and development boards.
- Remote controls and handheld devices.
- Industrial control panels.
- DIY electronics and prototyping.
- Wearable and compact devices.
Package Include:
1x TS-3507H SMD Tactile-Push Button 4 Pin 3x4x2mm.
