TS-400 4WD Metal Crawler Robot Tank Chassis Kit With Encoder Dc Motors
TS-400 4WD Metal Tank Chassis Tracked robot platform featuring shock-absorbing suspension and four 9V encoder motors. Ideal for advanced DIY robotics.
10,800.00 EGP
Buy NowTS-400 4WD Metal Crawler Robot Tank Chassis Kit With Encoder Dc Motors

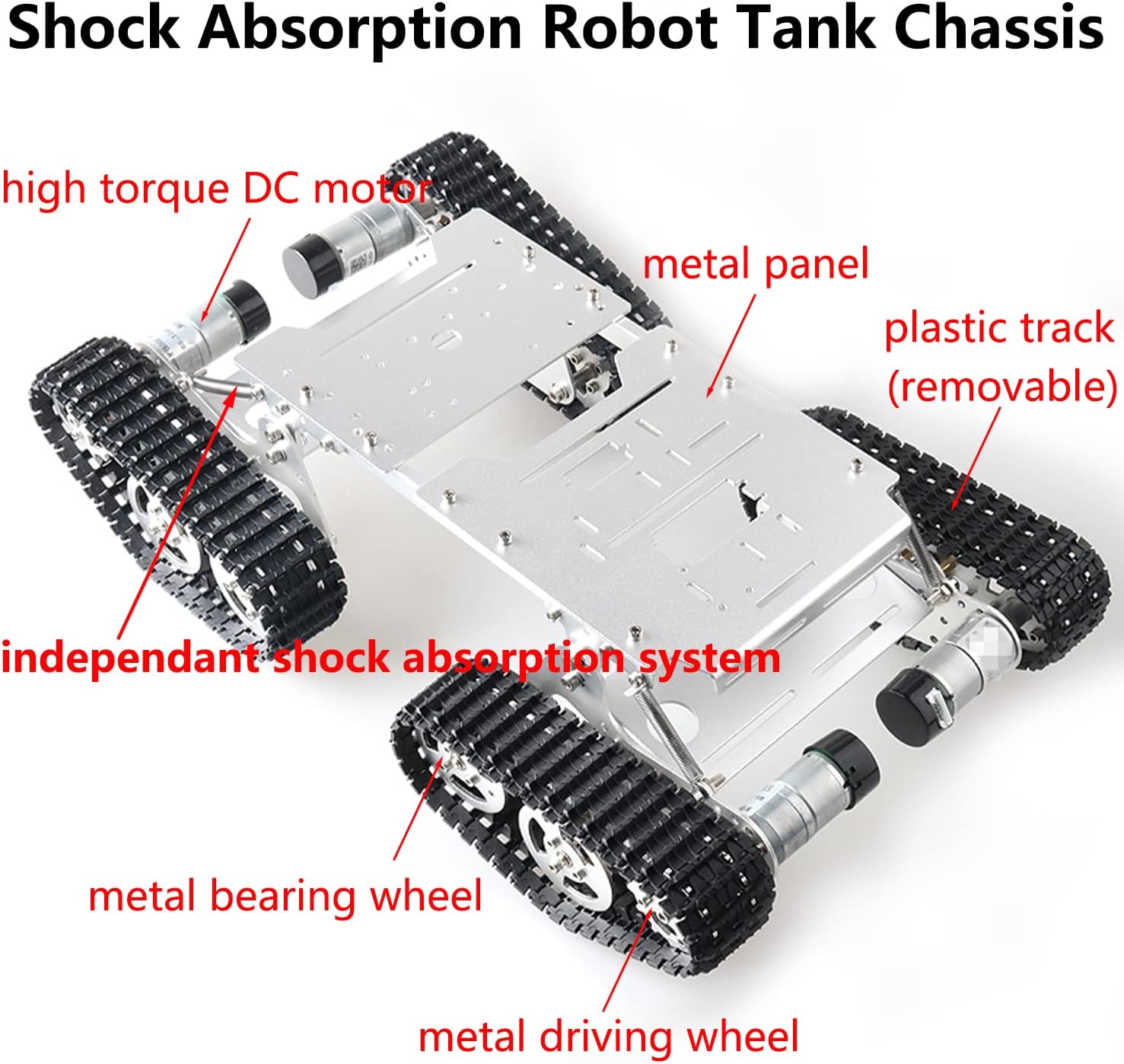

The TS-400 4WD Metal Crawler Robot Tank Chassis Kit is a heavy-duty robotic platform designed for makers, robotics enthusiasts, researchers, and educational institutions seeking a reliable base for advanced mobile robot development. Constructed from high-strength aluminum alloy, the chassis combines durability, stability, and excellent load-bearing capability while maintaining a professional appearance with its silver finish.
Features:
- Heavy-duty aluminum alloy robot tank chassis.
- Four-wheel-drive tracked crawler platform.
- Includes 4 high-torque 9V DC gear motors.
- Integrated Hall-effect encoders for precise feedback.
- Encoder cables included for all motors.
- Independent shock-absorbing suspension system.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Robot Tank Chassis Kit |
| Model | TS-400 |
| Drive Configuration | 4WD |
| Drive System | Tracked Crawler |
| Chassis Material | Aluminum Alloy |
| Chassis Color | Silver |
| Motor Quantity | 4 |
| Motor Type | DC Gear Motor With Encoder |
| Motor Voltage | 9VDC |
| Encoder Type | Hall-Effect Encoder |
| Encoder Cable | Included |
| Suspension Type | Independent Shock Absorbing |
| Drive Wheel Material | Metal |
| Bearing Wheel Material | Metal |
| Track Material | Engineering Plastic |

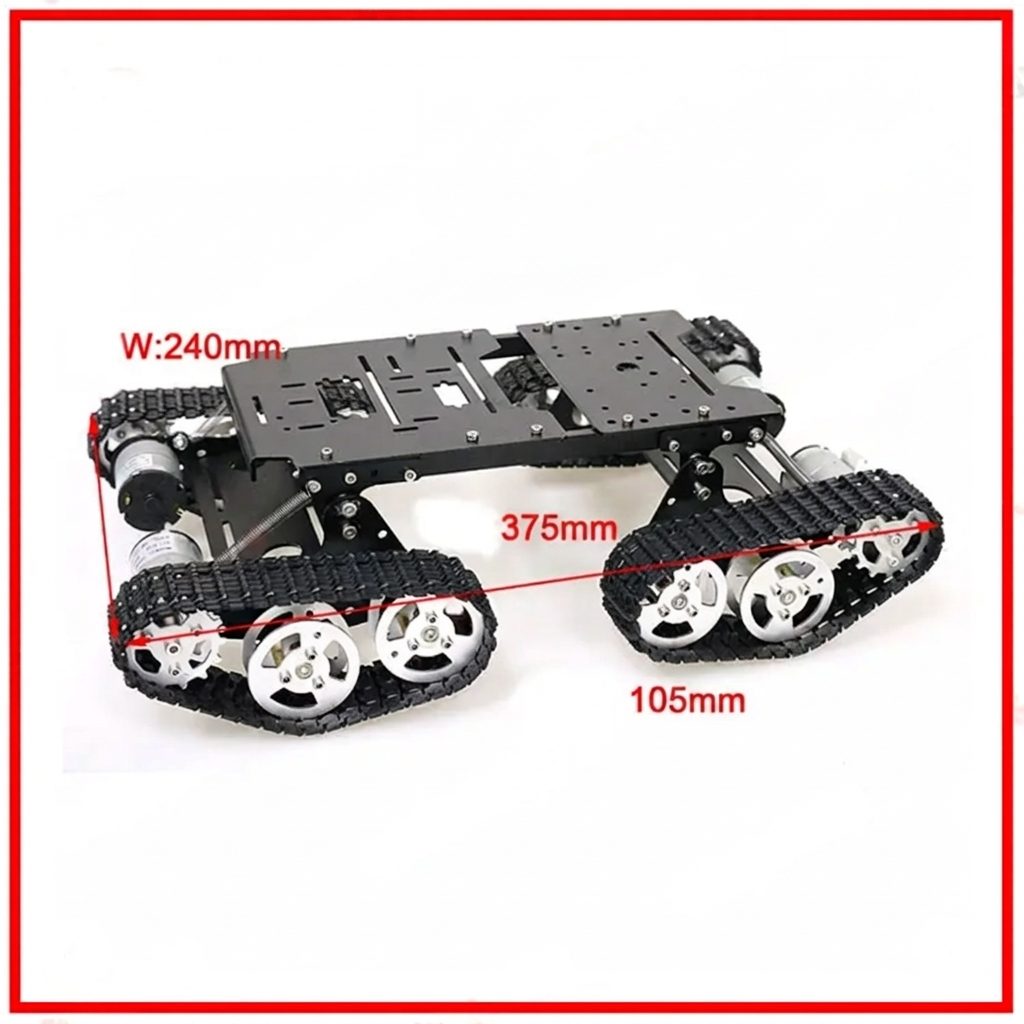

| Chassis Dimensions | 375mm × 240mm × 105mm |
| Assembly Required | Yes |
| Compatible Platforms | Arduino, Raspberry Pi, ESP32, STM32, Jetson Nano |
Configuration:
Package Include:

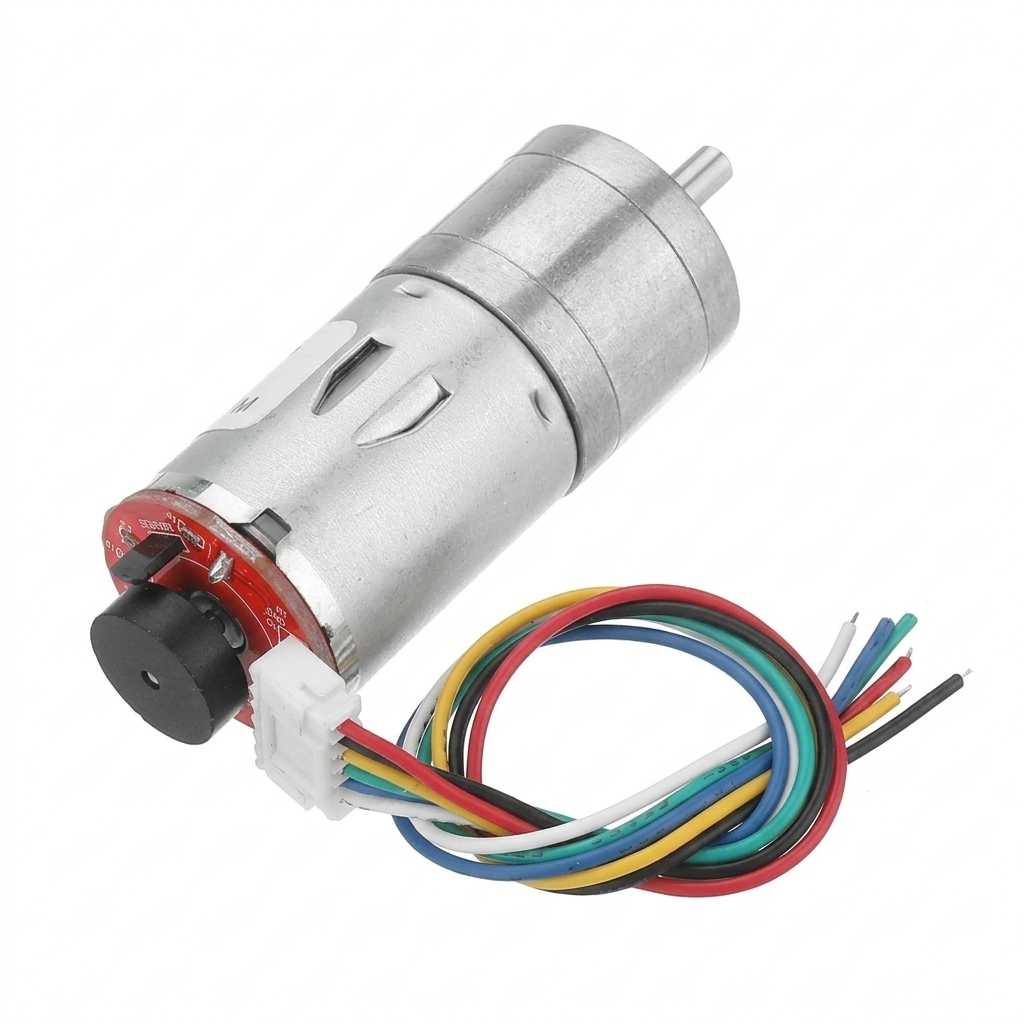

- 4x GA25-370 9VDC encoder gear motor.

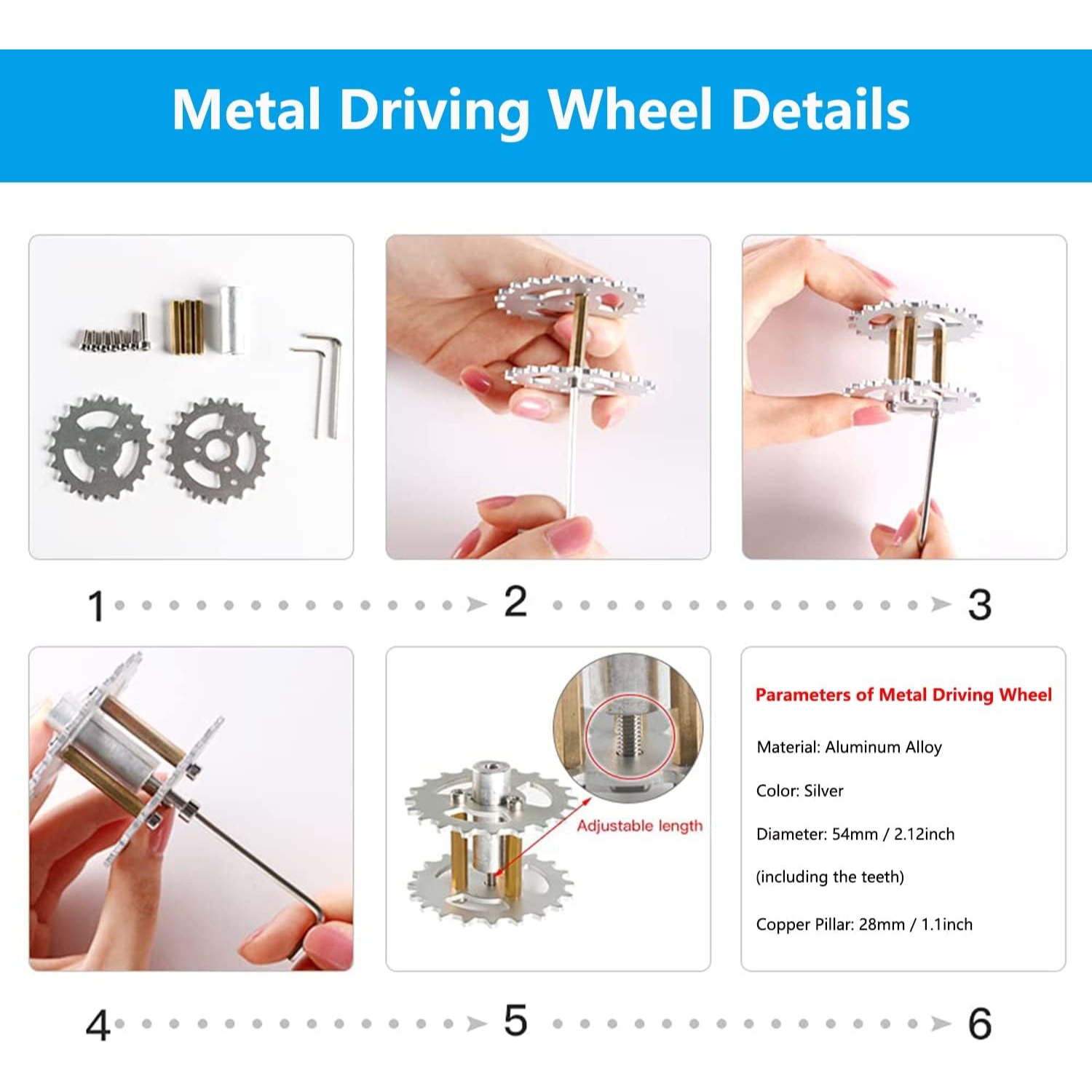

- 4x Shock-absorbing metal drive wheel.
- 8x Non-damping bearing wheel.
- 2x Continuous engineering plastic track.
- 4x Motor encoder cable with 6-pin connector.
- 1x Complete screw and fastener set.
- 1x battery holder
