UNI-T LM575R Laser Levels
The UNI-T LM575R 12-Line Laser Level is a professional red laser leveling instrument designed for accurate horizontal and vertical alignment in construction, installation, decoration, and layout applications. It uses a high-brightness red laser source to project 12 laser lines with a 360° emission angle, providing continuous reference lines around the working area for efficient leveling and alignment.
Features:
- 12-line red laser projection.
- High-brightness 635nm±10nm red laser.
- Class II laser classification.
- 360° laser emission angle.
- Horizontal accuracy of ≤±3mm/10m.
- Vertical accuracy of ≤±3mm/10m.
- Three-level laser brightness adjustment.
- Automatic self-leveling function.
- Self-leveling range of ±(3±1)°.
- Magnetic damping and heavy-hammer leveling mechanism.
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model Number | LM575R |
| Product Type | 12-Line Laser Level |
| Laser Type | Red, High Brightness |
| Laser Lines | 12 Lines |
| Laser Wavelength | 635nm±10nm |
| Laser Class | Class II |
| Horizontal Accuracy | ≤±3mm/10m |
| Vertical Accuracy | ≤±3mm/10m |
| Laser Linewidth | ≤5mm±1/10m |
| Brightness Adjustment | 3 Levels |
| Emission Angle | 360° |
| Self-Leveling Range | ±(3±1)° |
| Leveling Method | Magnetic Damping, Heavy Hammer |
| Alarm Mode | Buzzer + Flashing Laser Lines |
| Minimum Wall Distance | 10mm |
| Minimum Ground Distance | 15mm |
| Operating Range | Radius >30m at Maximum Brightness |
| Battery Life | >30h |
| Diagonal Mode | Yes |
| Remote Control | Yes |
| Operating Temperature | -10 to 50°C |
| Power Supply | 3.7V 6000mAh |
| Charging Interface | Type-C |
| Dimensions | 135x87x130mm |

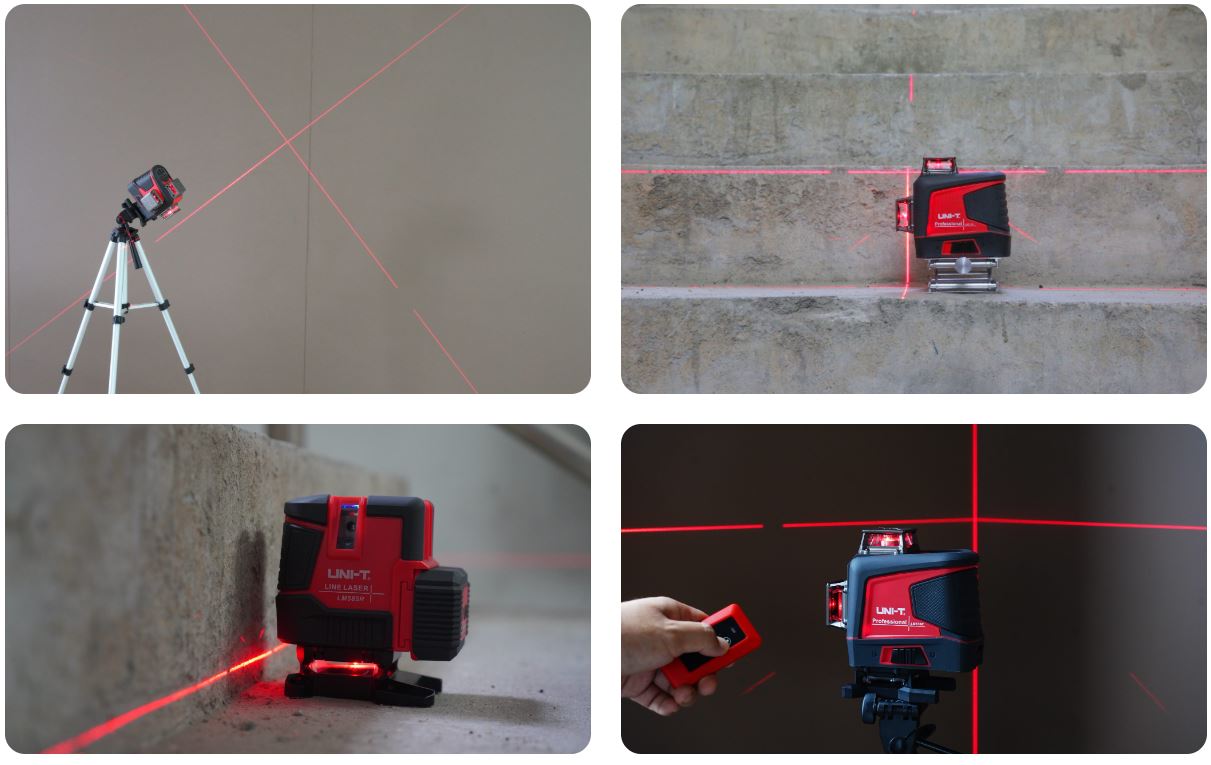

Applications:
- Stair laying and alignment.
- Doors and windows installation.
- Furniture installation.
- Electrical installation and layout.
- Residential construction.
- Interior decoration and renovation.
- Flooring and tiling layout.
- Wall and ceiling alignment.
- Cabinet and fixture installation.
- Table and surface layout.
- Horizontal and vertical reference-line projection.
- General construction and professional layout work.
Package Include:
- 1x Laser level
- 1x Remote control
- 1x 6000mAh lithium battery
- 1x User manual
- 1x Wall-mounted bracket+iron plate
- 1x Type-C charging cable
- 1x Toolbox
