UNI-T UT161D 1000V True RMS Digital Multimeters
The UNI-T UT161D True RMS Digital Multimeter is used for measuring voltage, current, resistance, and other electrical parameters during electronics testing, electrical maintenance, and troubleshooting.
3,500.00 EGP
In stockSKU 3496300161331
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast

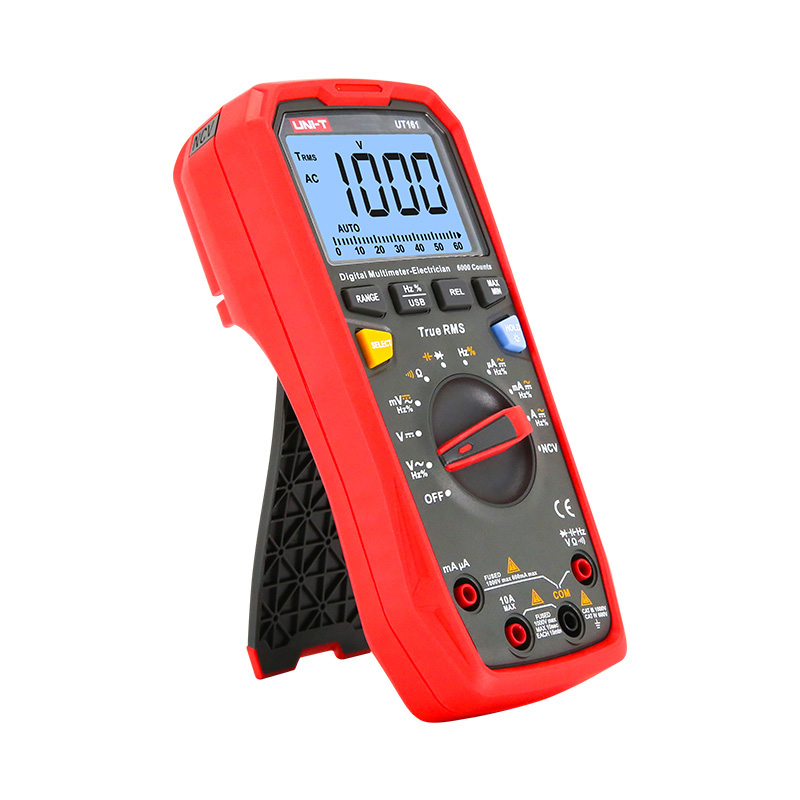

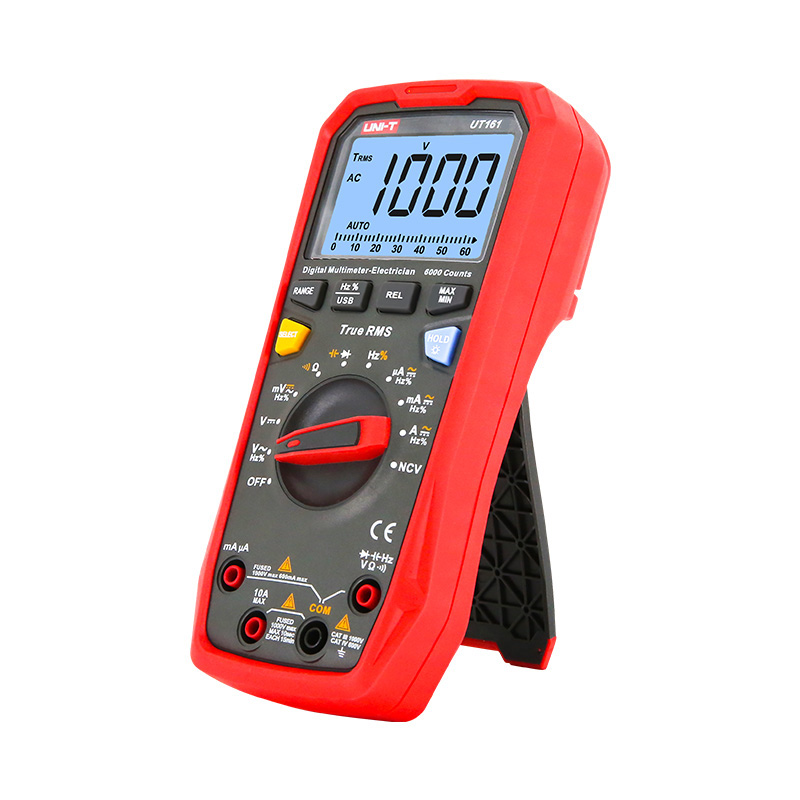

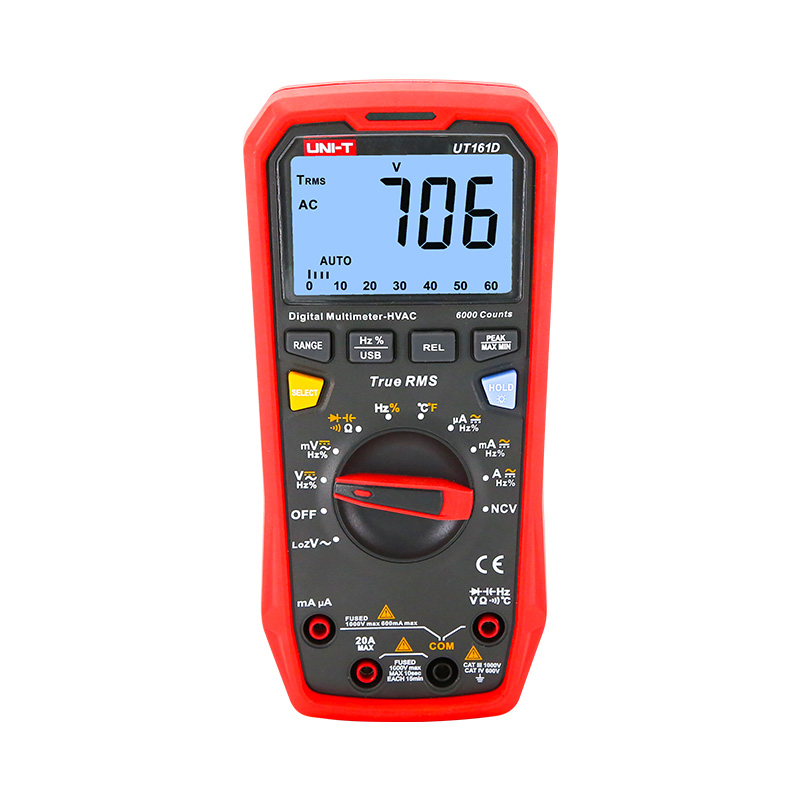

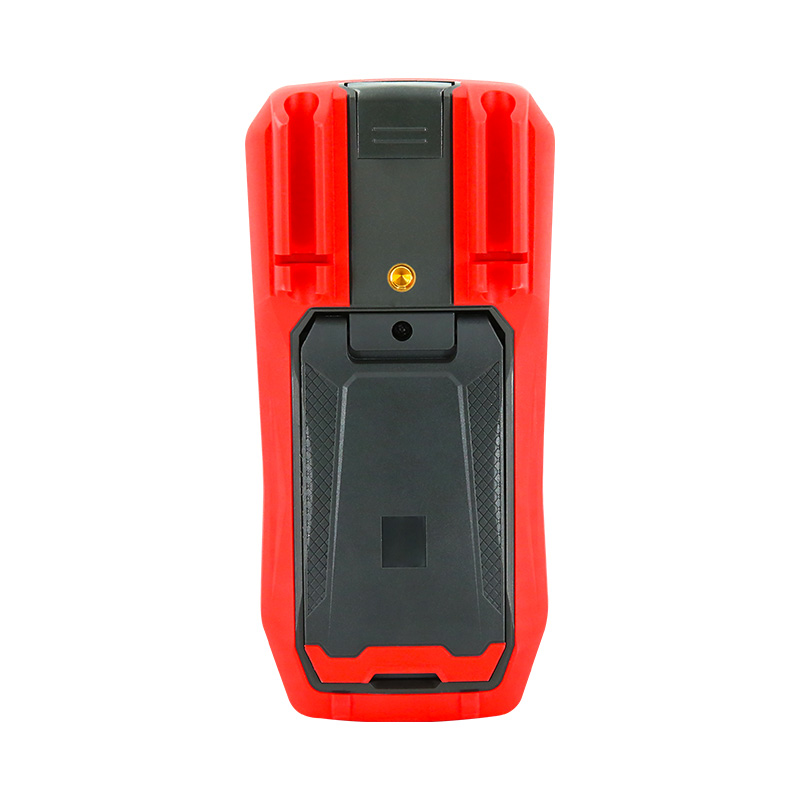

UNI-T UT161D 1000V True RMS Digital Multimeters
The UNI-T UT161D 1000V True RMS Digital Multimeter is a handheld electrical testing instrument designed for technicians, electricians, engineers, and electronics enthusiasts. It helps measure electrical quantities in circuits, electrical equipment, and electronic devices, making it useful for installation work, maintenance, fault diagnosis, and laboratory testing. Its True RMS measurement capability supports accurate AC measurements when working with waveforms that may not be purely sinusoidal, within the instrument’s specified operating limits.
Designed for practical everyday use, the UT161D provides a digital display for clear readings and a range of measurement functions for electrical troubleshooting. Its handheld form makes it suitable for workshops, service centers, educational laboratories, and field maintenance. Always follow the manufacturer’s safety instructions, select the correct measurement mode and input terminal, and use appropriately rated test leads when working with high voltages.
Features:
- True RMS.
- Data hold/backlight.
- Max/Min/Relative mode.
- USB communication.
- Input protection.
- Diode/continuity test.
- NCV (audible/visual alarm).
Specifications:
| Specifications | Range | UT161B | UT161D | UT161E |
| AC voltage (V) | 1000V | ±(1%＋3) | ±(1%＋3) | ±(0.8%＋10) |
| DC voltage (V) | 1000V | ±(0.5%＋3) | ±(0.5%＋3) | ±(0.05%＋5) |
| AC current (A) | 10A | ±(1.2%＋5) | ||
| 20A | ±(1.2%＋5) | ±(0.8%＋10) | ||
| DC current (A) | 10A | ±(1%＋2) | ||
| 20A | ±(1%＋2) | ±(0.5%＋10) | ||
| Resistance (Ω) | 60MΩ | ±(1%＋2) | ±(1%＋2) | |
| 220MΩ | ±(0.5%＋10) | |||
| Capacitance (F) | 60mF | ±(3%＋5) | ±(3%＋5) | |
| 220mF | ±(3%＋5) | |||
| Frequency (Hz) | 10MHz | ±(0.1%＋4) | ±(0.1%＋4) | |
| 220MHz | ±(0.01%＋5) | |||
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) | ±(2%＋5) | ±(2%＋5) |
| Temperature (℃/℉) | -40℃~1000℃ | ±(1%＋3) | ||
| -40℉~1832℉ | ±(1%＋6) | |||
| Display count | 6000 | 6000 | 22000 | |
| Bandwidth (Hz) | 40Hz~500Hz | 40Hz~1kHz | 40~10kHz | |
| LPF ACV | ✔ | |||
| LoZ ACV | ✔ | |||
| ACV+DCV | ✔ | |||
| Transistor hFE | ✔ | |||
| Peak Hold | ✔ | ✔ | ||
| Analog bar | 31 | 31 | 46 | |
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 4 | |||
| Product net weight | 350g | |||
| Product size | 190mm x 90mm x 50mm | |||
| Standard accessories | Battery, gold plated test leads, USB cable, temperature probe (161D), multi-purpose socket (161E), English manual |
|||
| Standard individual packing | Gift box, cloth bag | |||
| Standard quantity per carton | 20pcs | |||
| Standard carton measurement | UT161 series: 480mm x 370mm x 325mm | |||
| Standard carton gross weight | UT161 series: 17.8kg | |||
| Optional accessories | Bluetooth/APP | |||
Applications:
- Electrical installation testing and maintenance.
- Electronic circuit troubleshooting and repair.
- AC and DC voltage measurement.
- Current measurement in electrical circuits.
- Resistance and continuity testing.
- Diode testing and component diagnostics.
- Capacitance and frequency measurement.
- Temperature measurement in electrical and electronic systems.
- Non-contact voltage detection.
- Educational laboratories and electronics workshops.
Package Includes:
- 1 × UNI-T UT161D Digital Multimeter.
- 4 × 1.5V AAA batteries.
- 1 × Pair of gold-plated test leads.
- 1 × USB cable.
- 1 × Temperature probe.
- 1 × English user manual.
- 1 × Gift box.
- 1 × Cloth carrying bag.
