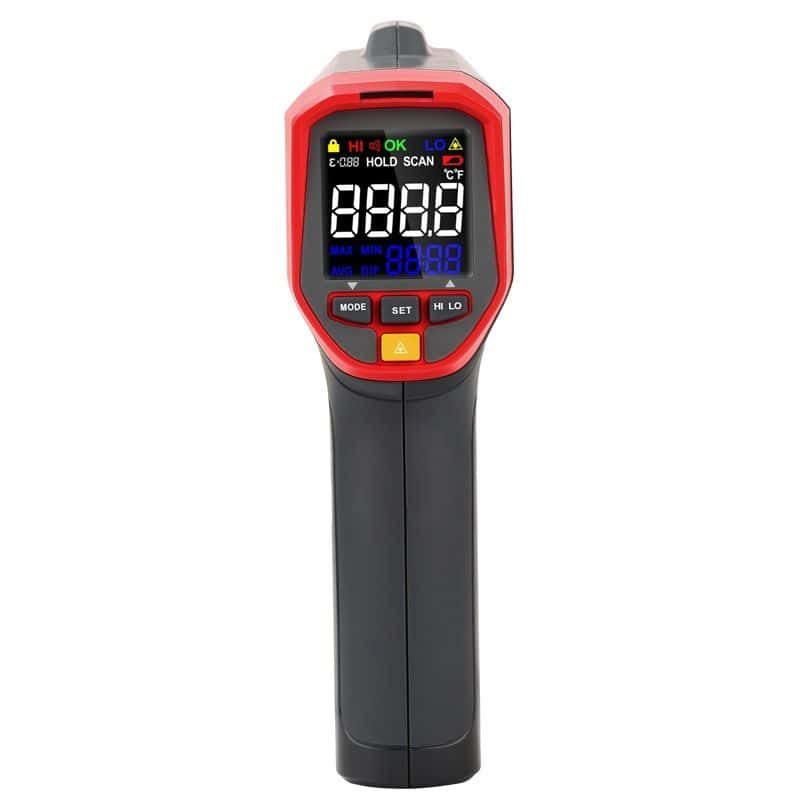

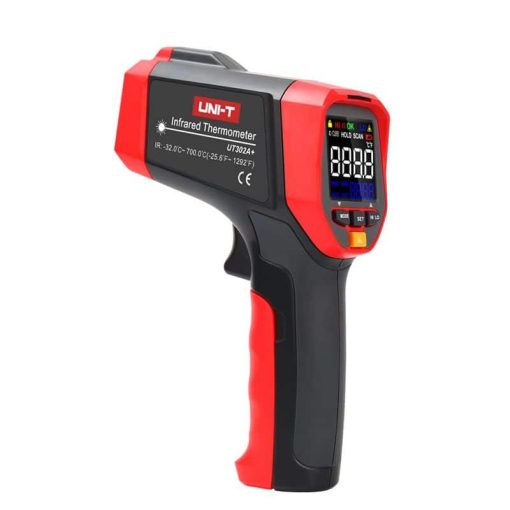

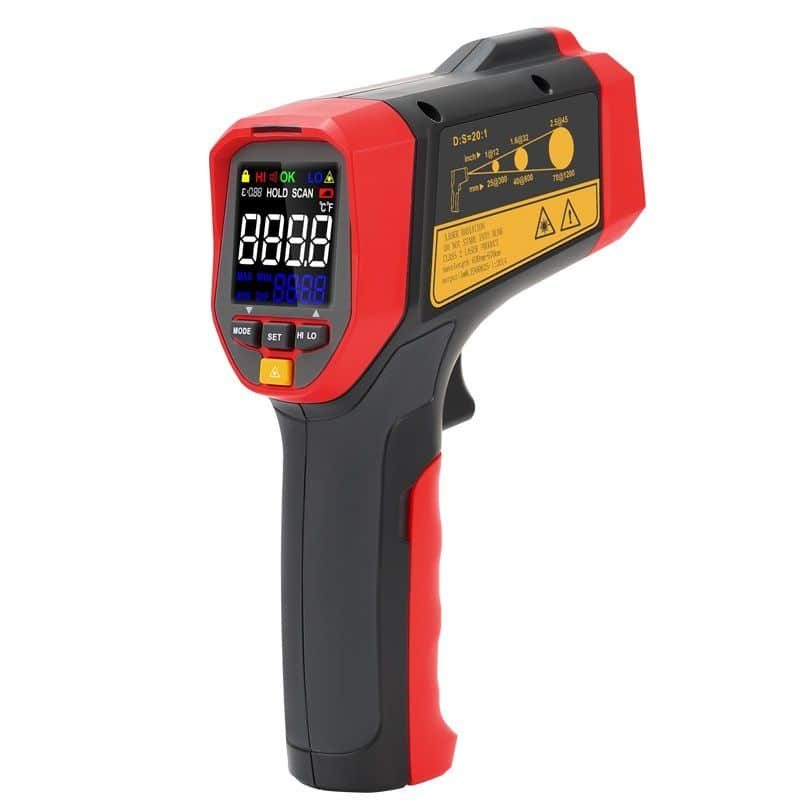

UNI-T UT302A+ Infrared Thermometer
UT302+/UT303+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement. The UT302C+ and UT303C+ have ring laser, an unique patented display method that covers entire measured area, user will know exactly where the measurement is taking place.
Features
- Delivers ±1.5°C temperature measurement accuracy for reliable non-contact temperature readings.
- Features user-configurable visual and audible alarms for high and low temperature alerts.
- Equipped with a high-contrast Color EBTN display for clear visibility in various lighting conditions.
- Supports MAX, MIN, AVG, DIFF, and Data Hold measurement modes for comprehensive temperature analysis.
- Provides fast and accurate infrared temperature measurement for industrial, electrical, HVAC, and maintenance applications.
Specifications
| Parameter | Details |
|---|---|
| Brand | UNI-T |
| Model | UT302A+ |
| Temperature Range | -32°C to 700°C (-25.6°F to 1292°F) |
| Accuracy | ≥0°C: ±1.5°C or ±1.5% of reading (whichever is greater); <0°C: ±(1.5°C + 0.1°C/°C) |
| Accuracy (°F) | ≥32°F: ±3.0°F or ±1.5% of reading (whichever is greater); <32°F: ±(3.0°F + 0.1°F/°F) |
| Repeatability | 0.7°C or 0.7% (1.5°F or 0.7%) |

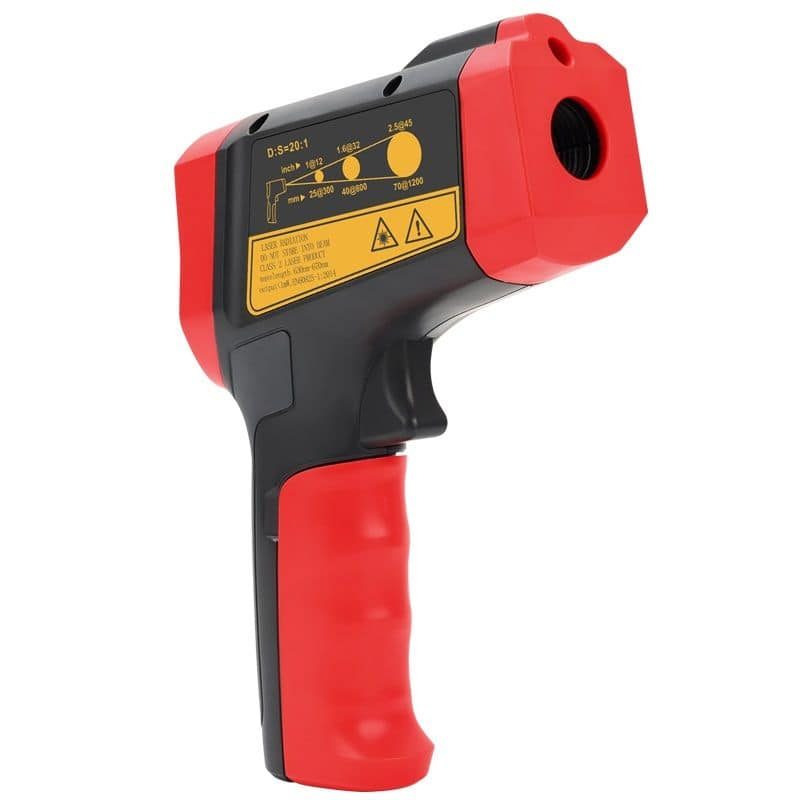

| Distance-to-Spot (D:S) Ratio | 20:1 |
| Response Time | 250 ms |
| Emissivity | Adjustable from 0.1 to 1.0 (stores 5 preset values) |
| Spectral Response | 8–14 μm |
| Laser Power | < 1 mW |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| LCD Display | Color EBTN |
| High/Low LED Alarm | Yes |
| High/Low Audible Alarm | Yes |
| Data Hold / Lock Measurement | Yes |
| °C/°F Selection | Yes |
| Measurement Modes | MAX, MIN, AVG, DIFF |
| Data Storage | Not Supported |
| Scheduled Measurement | Not Supported |
| Backlight | Yes |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | ≤90% RH (Non-condensing) |
| Drop Test | 1 m |
| Tripod Mounting Hole | Yes |
| Power Supply | 9V Battery |
| Display Size | 35 mm × 35 mm |
| Product Color | Red and Grey |
| Net Weight | 310 g |
| Dimensions | 172 mm × 115 mm × 53 mm |
| Standard Accessories | Battery, Carrying Bag |
| Package Contents | Gift Box, Blister, English Manual |
| Standard Carton Quantity | 10 pcs |
| Standard Carton Dimensions | 425 mm × 335 mm × 365 mm |
| Standard Carton Gross Weight | 6.22 kg |
Applications
Air conditioning measurement
Vehicle inspection
Package Contents
- 1 x UNI-T UT302A+ Infrared Thermometer Unit
- 1 x 9V Alkaline Battery (1604A)
- 1 x User Manual
