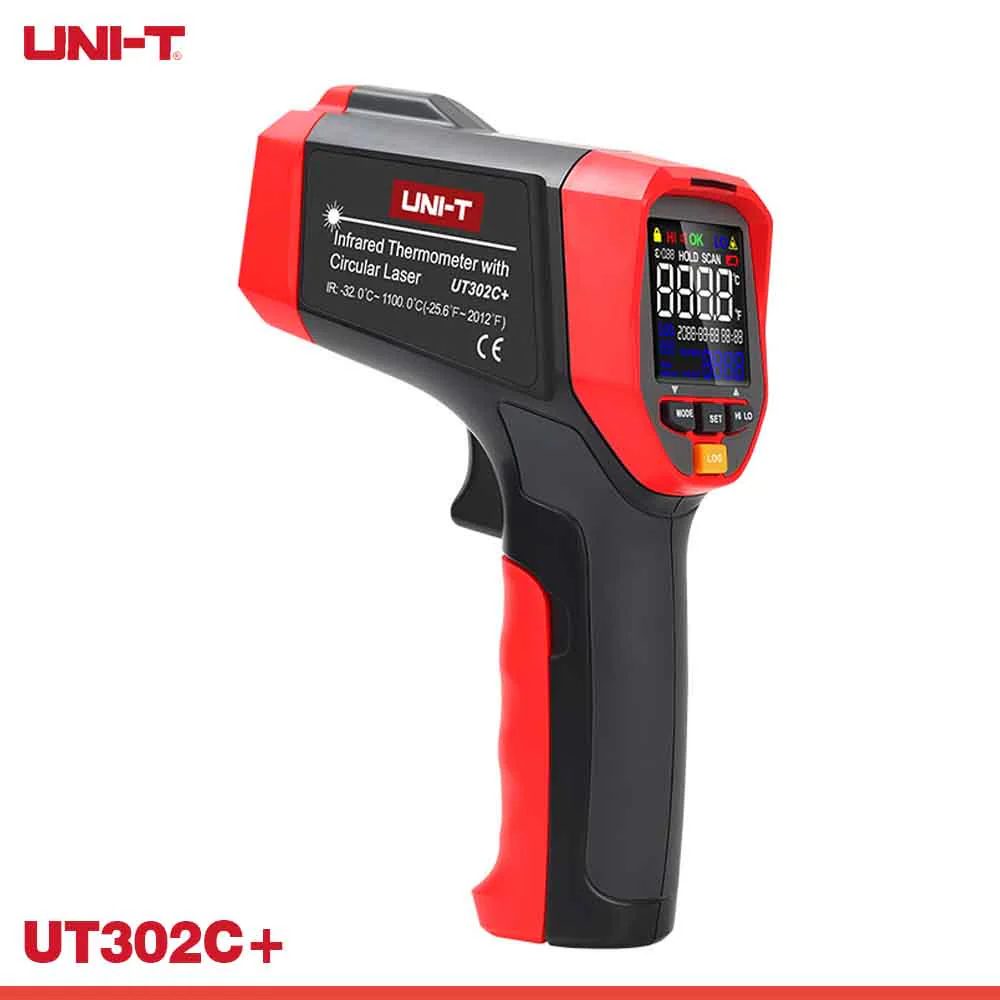

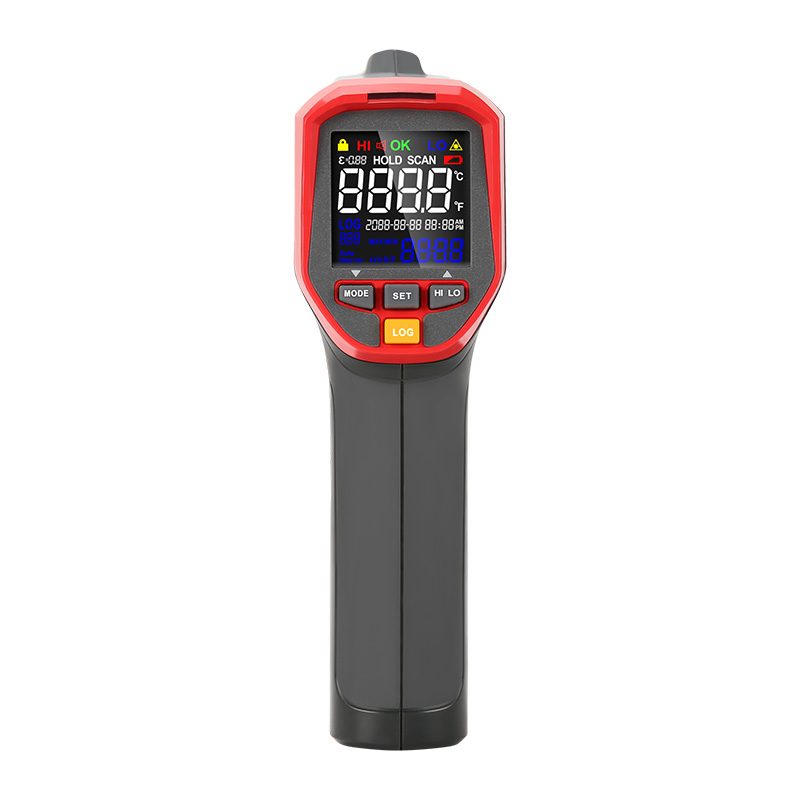

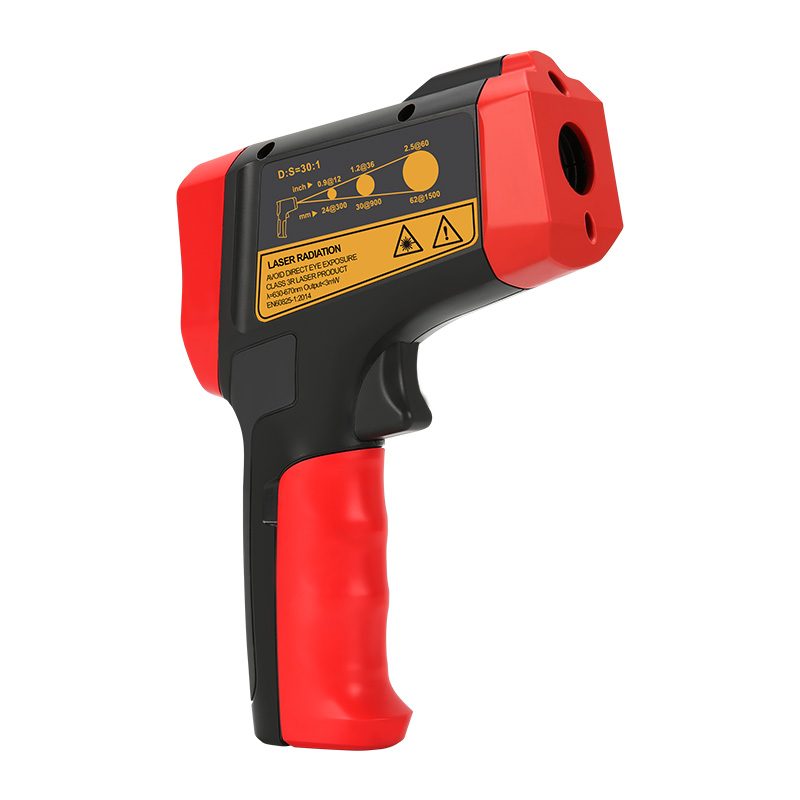

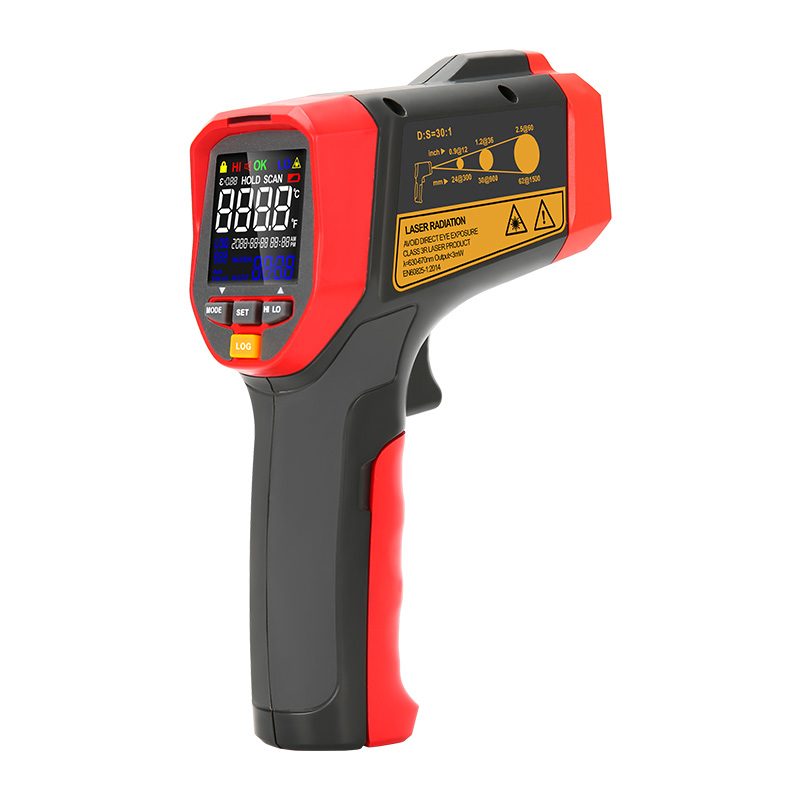

UNI-T UT302C+ Infrared Thermometer
UT302+/UT303+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement. The UT302C+ and UT303C+ have ring laser, an unique patented display method that covers entire measured area, user will know exactly where the measurement is taking place.
Features
- High-precision temperature measurement with ±1.5°C accuracy.
- User-configurable visual and audible alarms for temperature threshold alerts.
- High-contrast Color EBTN display for clear visibility in various lighting conditions.
- Supports MAX, MIN, AVG, DIFF, and Data Hold measurement modes.
- Stores up to 99 temperature readings for easy data logging and review.
- Built-in date and time display for accurate measurement records.
- Time-scheduled measurement function for automatic temperature monitoring at preset intervals.
Specifications
| Parameter | Details |
|---|---|
| Brand | UNI-T |
| Model | UT302C+ |
| Temperature Range | -32°C to 1100°C (-25.6°F to 2012°F) |
| Accuracy | ≥0°C: ±1.5°C or ±1.5% of reading (whichever is greater); <0°C: ±(1.5°C + 0.1°C/°C) |
| Accuracy (°F) | ≥32°F: ±3.0°F or ±1.5% of reading (whichever is greater); <32°F: ±(3.0°F + 0.1°F/°F) |
| Repeatability | 0.7°C or 0.7% (1.5°F or 0.7%) |
| Distance-to-Spot (D:S) Ratio | 20:1 |
| Response Time | 250 ms |
| Emissivity | Adjustable from 0.1 to 1.0; stores 5 preset emissivity values |
| Spectral Response | 8–14 μm |
| Laser Power | < 1 mW |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| LCD Display | Color EBTN |
Applications
Air conditioning measurement
Vehicle inspection
Package Contents
- 1 x UNI-T UT302C+ Infrared Thermometer Unit
- 1 x 9V Alkaline Battery (1604A)
- 1 x User Manual
