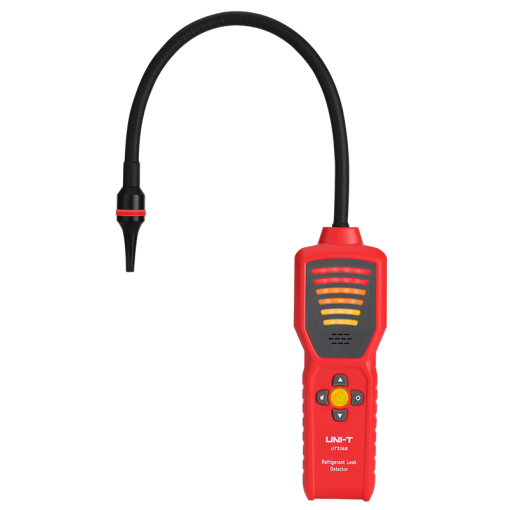

UNI-T UT336B Refrigerant Leak Detector
The UNI-T UT336B is a compact refrigerant leak detector built around a high-sensitivity semiconductor sensor that quickly senses halogenated refrigerants. Its responsive detection circuit and intuitive LED/buzzer feedback make it straightforward to spot even small leaks; the probe lamp changes color in sync with the main alarm indicators so you can see the alarm state at a glance.
The device uses a flexible probe for hard-to-reach areas and requires a 60-second warm-up before accurate testing. Sensitivity is adjustable across six levels so technicians can tailor detection to background conditions; alarms increase in frequency and LED color (yellow → orange → red) as concentration rises. It runs on four AA alkaline cells and includes audible and visual alarms plus a mute option for quieter environments.
Field fit and maintenance: Designed for daily refrigeration work, the UT336B balances field durability with sensor longevity (probe life ~2 years based on typical use). It auto-powers off after inactivity to save batteries and includes simple zero/reset and sensitivity controls so users can quickly re-calibrate on site. Routine probe cleaning and timely battery replacement preserve accuracy.
Features:
- High-sensitivity semiconductor sensor (max ~3 g/a).
- Six-level sensitivity adjustment.
- Six-level sound + light alarm with intuitive LED color steps.
- Probe light that follows main alarm color changes.
- Flexible gooseneck probe for hard-to-reach areas.
- Audible buzzer with mute option.
- Quick 60-second warm-up.
- Uses 4× AA alkaline batteries.
- Auto power-off after inactivity.
- Built for a long probe life (~2 years under normal use)
Specifications:
| Specification: | Details: |
|---|---|
| Model: | UT336B |
| Sensor: | Semiconductor sensor |
| Maximum sensitivity: | 3 g/a |
| Sensitivity adjustment: | 6 levels |
| Alarm light: | 6 levels (Yellow / Orange / Red) |
| Warm-up time: | 60 s |
| Probe light: | Synchronous color change with alarm |
| Power supply / battery: | AA Alkaline ×4 |
| Battery life (typical): | ~10 h (alkaline) |
| Auto power-off: | ~15 minutes inactivity |
| Probe life: | ~2 years (based on 2.5 h/day) |
| Operating temperature / humidity: | 0 °C to +50 °C, <80% RH (non-condensing) |
| Product size: | 190 × 65 × 43 mm (probe rod not included) |
Applications:
- Air Conditioner Maintenance.
- Refrigeration Equipment Maintenance.
- Refrigerant Leak Detection.
- Automobile Maintenance.
Package Contents:
- 1x UT336B Refrigerant Leak Detector
- 1x Quick Start Guide
- 1x Safety Guideline
- 1x Download Operation Guide
- 4x AA Alkaline Battery
- 1x Cloth Bag
