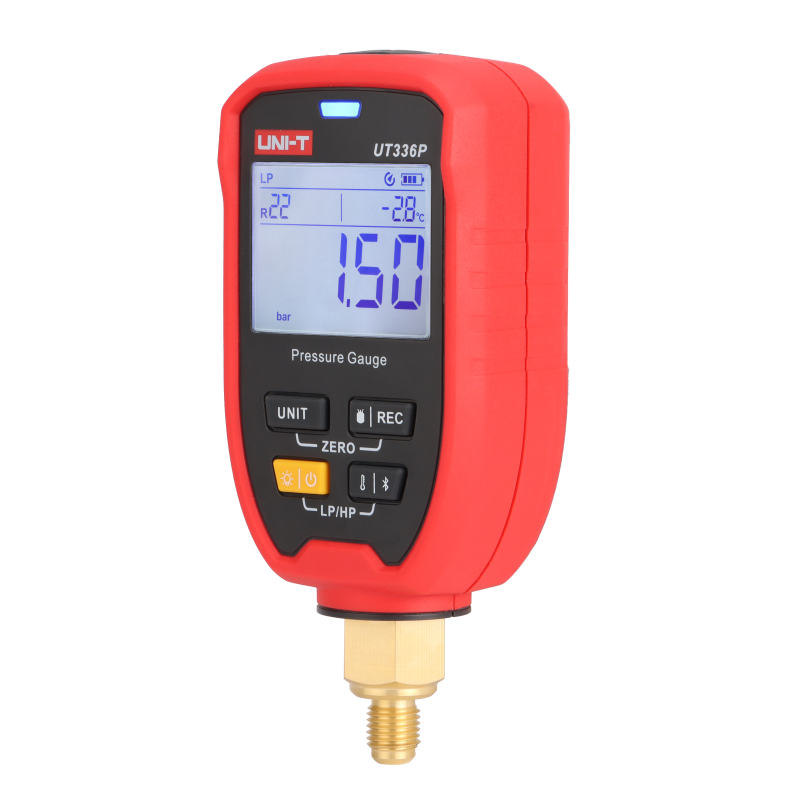

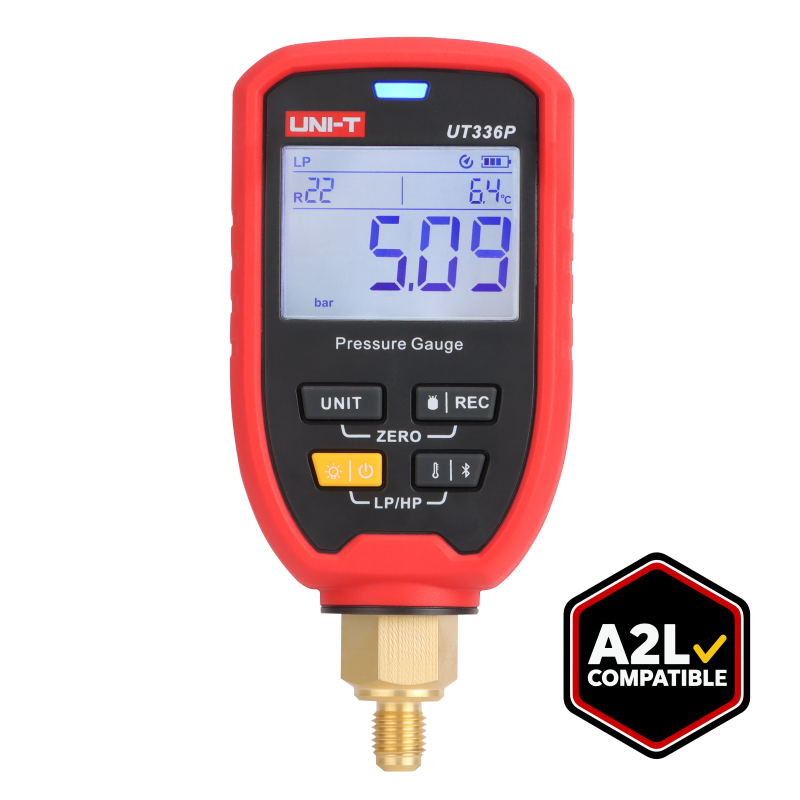

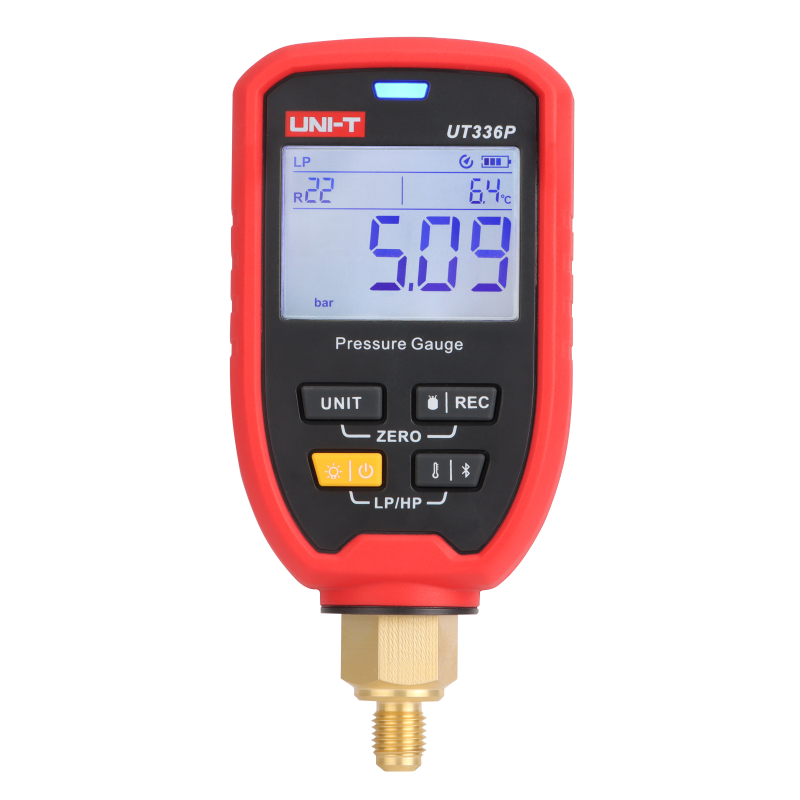

UNI-T UT336P Wireless Pressure Gauge

The UNI-T UT336P Wireless Pressure Gauge is a professional measurement instrument designed for the installation, commissioning, troubleshooting, and maintenance of refrigeration, air-conditioning, and heat pump systems. It provides accurate pressure readings, wireless connectivity, and offline data logging to help technicians evaluate system performance and monitor operating conditions.

Features:

Measures pressure from -1bar to 60bar with an accuracy of ±0.5%FS.
Supports seven selectable pressure units for flexible measurement.
Connects to compatible smartphones through Bluetooth and the iENV application.
Stores up to 8,000 measurement records for offline monitoring and reporting.
Offers adjustable recording intervals from 1 second to 1 hour.
Supports 94 refrigerant types, including 10 preset types.
Calculates evaporating and condensing temperatures according to the selected refrigerant.
Provides configurable high- and low-pressure alarms.
Includes red high-pressure and blue low-pressure LED indicators.
Features pressure zeroing, display backlighting, and automatic power-off.
Supports firmware upgrades through the application.

Specifications:

Parameter	Value / Details
Specifications
Range/Resolution	-1 to 60bar / 0.01bar
Range/Resolution	-1.01 to 61.18kg/cm² / 0.01kg/cm²
Range/Resolution	-75.0 to 4,500.3cmHg / 0.1cmHg
Range/Resolution	-14.5 to 870.2psi / 0.1psi
Range/Resolution	-29.52 to 1,771.8inHg / 0.1inHg
Range/Resolution	-100 to 6,000kPa / 1kPa
Range/Resolution	-0.100 to 6.000MPa / 0.001MPa
Accuracy	±0.5%FS
Units	Pressure: Bar; kg/cm²; cmHg; psi; inHg; kPa; MPa Temperature: ℃; ℉
Refrigerant Types	10 types are preset (Set via APPs, total 94)
Evaporating/Condensing Temperature	As per the refrigerant type
High/Low Pressure Switch	✔
Data Record	8000
Data Record Interval	1s~1h (APP setting)
LED Indicators	Red (HP); Blue (LP)
Pressure Zeroing	✔
Screen Backlight	✔
Phone APPs	✔ (iENV)
Auto Power Off	✔
Firmware Upgrade	✔
Temperature Clamp Port	3.5 mm port
Battery Life	100h (Alkaline battery; Backlight OFF; LED ON; 1-min record interval)
IP Rating	IP54

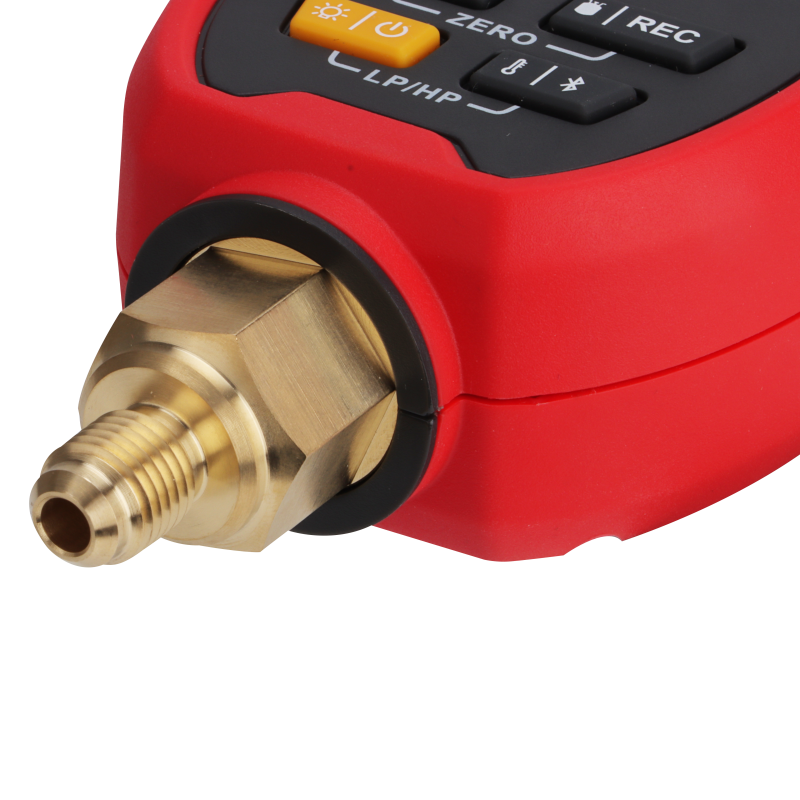

Pressure Connector	1/4″ SAE Connector
Over Range	OL (>65bar)
Working Temperature & Humidity	-10~+50℃, <90%RH
Storage Temperature & Humidity	-20~+60℃, <80%RH
Characteristics

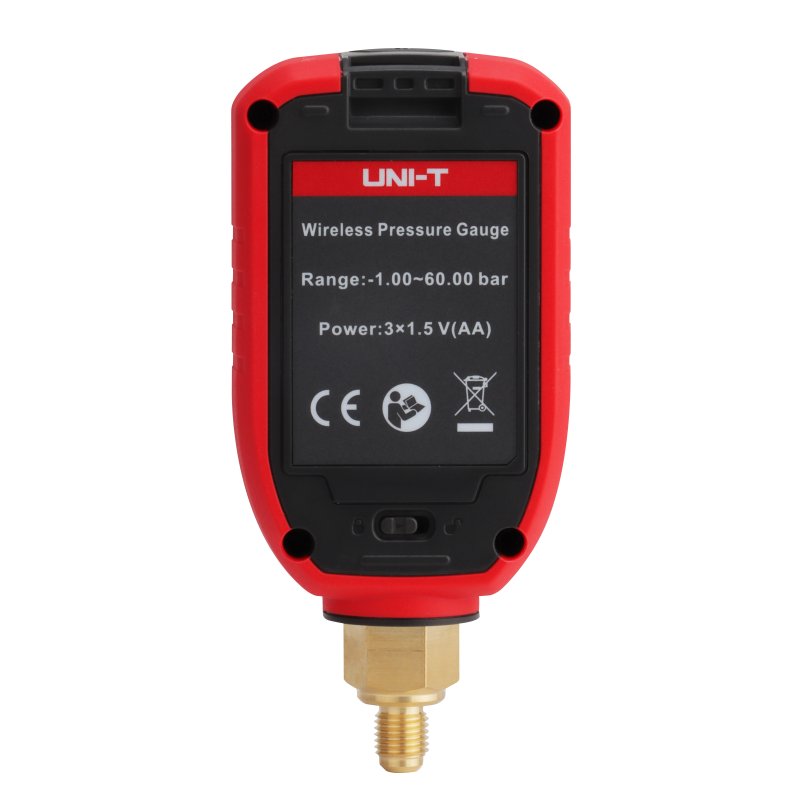

Power Supply	3x Alkaline AA battery
Product Size	1456839 mm
Product Net Weight	250g (Not battery included)
Standard Accessories	Wireless Pressure Gauge, Quick Start Guide, Safety Guide, Download Guide of Common Files, AA Battery*3, Hand Strap, Cloth Bag (Hard)

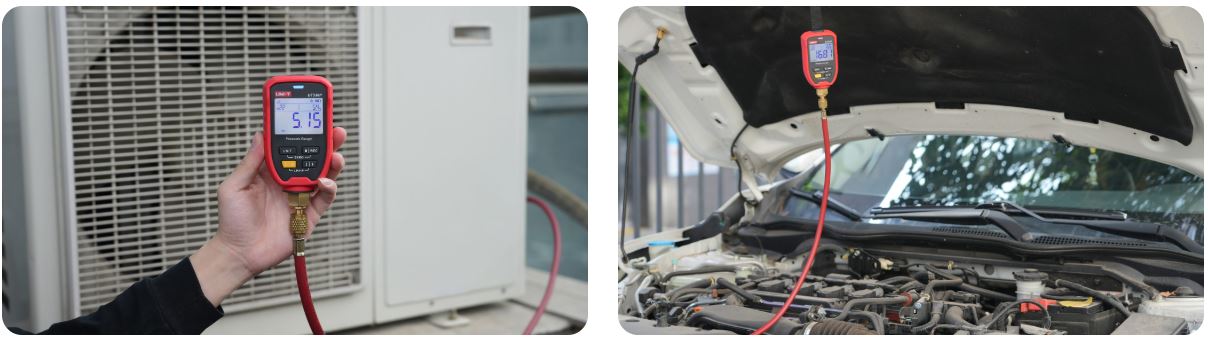

Applications:

Refrigeration system installation and commissioning.
Air-conditioning system servicing and troubleshooting.
Heat pump installation and maintenance.
HVAC/R pressure monitoring and diagnostics.
Refrigerant charging and system performance evaluation.
High- and low-pressure monitoring during maintenance.
Offline pressure data recording and report generation.
Refrigerant evaporating and condensing temperature analysis.
Superheat and subcooling calculations with the optional UT-T19 temperature clamp.
Automotive air-conditioning maintenance.
Preventive maintenance and refrigeration system performance checks.

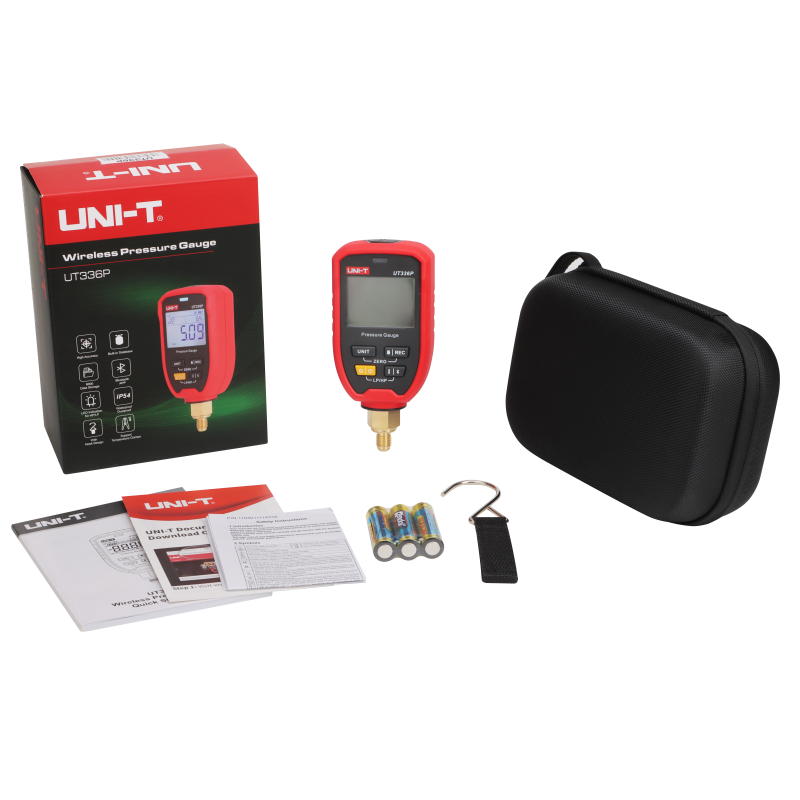

Package Include:

1x Wireless Pressure Gauge
1x Quick Start Guide
1x Safety Guide
1x Download Guide of Common Files
3x AA Battery

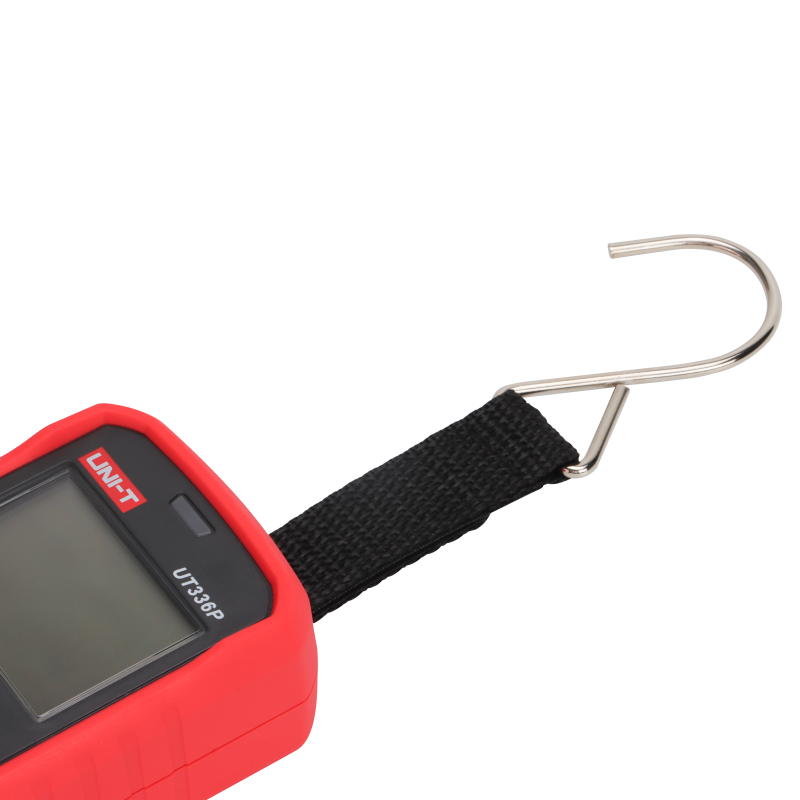

1x Hook (hand strap)
1x Cloth Bag

Documents:

Datasheet
USER Manual
