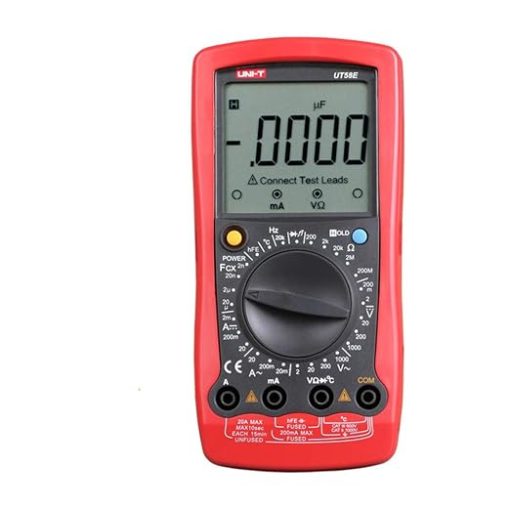

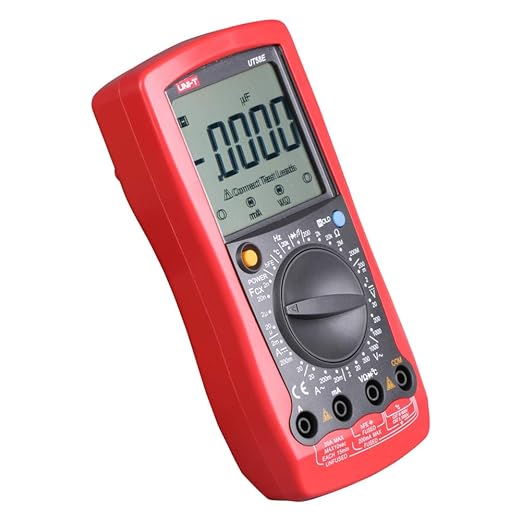

UNI-T UT58E Digital Multimeter
The UNI-T UT58E Digital Multimeter is a professional manual-ranging digital multimeter that offers high measurement accuracy and a 20,000-count LCD display, making it ideal for engineers, technicians, students, and electronics professionals. It measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and transistor gain (hFE), providing a comprehensive solution for troubleshooting, testing, and maintenance.
Designed for reliable daily use, the UT58E features a large LCD display, Data Hold function, continuity buzzer, diode testing, automatic power-off, and overload protection. Its ergonomic design, protective holster, and included temperature probe make it suitable for laboratory work, industrial maintenance, educational environments, automotive diagnostics, and electronic circuit development.
Features:
- 2000 display count, refresh rate 2~3 times/s (UT58A/B/C/D).
- 20000 display count, 0.05% accuracy (UT58E).
- Function symbols and test lead connection indication.
- Transistor measurement.
- Inductance measurement (UT58D).
- Temperature measurement mode, with K-type temperature probe (UT58B/C/E).
- Frequency measurement (UT58C/E).
- Diode and continuity buzzer; auto power off； overload protection.
- Data hold; 20A AC/DC current measurement.
Specifications:
| Specifications | Range | UT58A | UT58B | UT58C | UT58D | UT58E |
| DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) | ±(0.5%+1) | ±(0.5%+1) | ±(0.05%+3) | |
| 200mV/20V/200V/1000V | ±(0.5%+1) | |||||
| AC voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) | ||
| 2V/200V/1000V | ±(0.8%+3) | |||||
| 2V/20V/200V/1000V | ±(0.5%+10) | |||||
| DC current (A) | 20μA/2mA/20mA/200mA/20A | ±(0.8%+1) | ||||
| 2mA/20mA/200mA/20A | ±(0.8%+1) | |||||
| 2mA/200mA/20A | ±(0.8%+1) | ±(0.8%+1) | ±(0.5%+5) | |||
| AC current (A) | 2mA/200mA/20A | ±(1%+3) | ±(1%+3) | ±(1%+3) | ±(1%+3) | |
| 20mA/200mA/20A | ±(0.8%+10) | |||||
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ | ±(0.8%+1) | ±(0.8%+1) | |||
| 200Ω/2kΩ/20kΩ/2MΩ/20MΩ | ±(0.8%+1) | |||||
| 200Ω/2kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) | |||||
| 200Ω/2kΩ/20kΩ/2MΩ/200MΩ | ±(0.3%+1) | |||||
| Capacitance (F) | 2nF/200nF/100μF | ±(4%+3) | ±(4%+3) | ±(4%+3) | ||
| 20nF/200nF/2μF/100μF | ±(2.5%+5) | |||||
| 2nF/20nF/2μF/20μF | ±(3%+40) | |||||
| Inductance (H) | 2mH/20mH/200mH/20H | ±(2%+10) | ||||
| Frequency (Hz) | 2kHz/20kHz | ±(1.5%+5) | ||||
| 20kHz | ±(1.5%+5) | |||||
| Temperature (°C) | -40°C~1000°C | ±(1%+3) | ±(1%+3) | ±(1%+30) | ||
| General Characteristics | ||||||
| Power | 9V battery (6F22) | |||||
| Display | 60mm x 54mm | |||||
| Product color | Red and grey | |||||
| Product net weight | 350g | |||||
| Product size | 179mm x 88mm x 39mm | |||||
| Standard accessories | Battery, test leads, holster, multi-purpose socket, test clips (UT58D/UT58E), point contact temperature probe (UT58B/UT58C/UT58E) | |||||
| Standard individual packing | Gift box, English manual | |||||
| Standard quantity per carton | 20pcs | |||||
| Standard carton measurement | 450mm x 330mm x 340mm (0.11CBM per standard carton) | |||||
| Standard carton gross weight | 12kg | |||||
Applications:
- Electronic circuit testing.
- Electrical troubleshooting.
- Industrial maintenance.
- Laboratory measurements.
- Educational laboratories.
- Automotive electrical diagnostics.
- Power supply testing.
- Appliance repair.
- HVAC servicing.
- Battery testing.
- Transistor testing.
- General field maintenance.

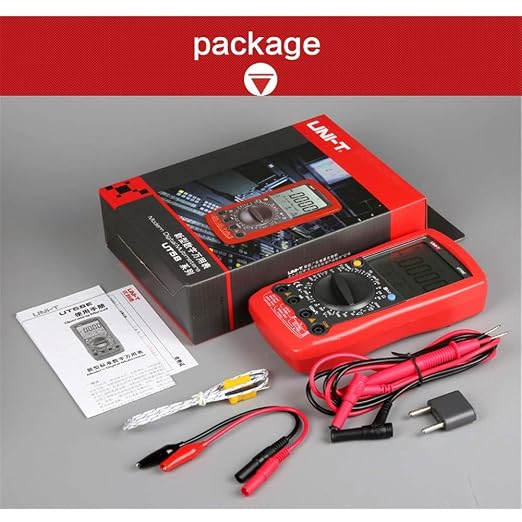

Package Includes:
