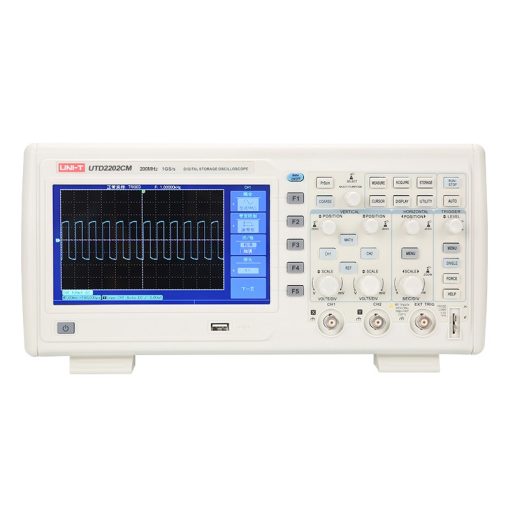

UNI-T UTD2202CM Digital Storage Oscilloscope
The UNI-T UTD2202CM is designed with a strong emphasis on user-friendly operation and functional clarity. Its front panel is intuitively laid out, featuring knobs and keys whose functions align with traditional oscilloscope operation habits. This design allows users, whether novice or experienced, to become proficient quickly without a steep learning curve. The instrument combines ease of use with robust performance, making it a versatile tool for various measurement scenarios.
At its heart, the UTD2202CM is engineered for accurate and detailed signal analysis. It captures fast signals effectively through its high real-time sampling rate, ensuring that waveform details are preserved. A significant deep memory depth allows the oscilloscope to maintain a high sampling rate across a wide range of timebase settings, enabling users to see both the overview and the fine details of a waveform without compromise, facilitated by a zoom function.
Beyond basic waveform display, this oscilloscope provides powerful analytical tools to simplify complex measurement tasks. It includes advanced mathematical operations and a sophisticated triggering system to help isolate and capture specific signal events. For data handling and external communication, it offers convenient connectivity options, allowing users to easily save waveforms, settings, and screenshots to USB storage devices for further analysis or reporting.
Features:
- 200MHz Bandwidth.
- 1 GS/s Real-Time Sampling Rate.
- High Waveform Capture Rate (up to 150,000 wfms/s).
- Deep Memory (16 Mpts).
- 7-inch TFT LCD Display (800 x 480 resolution).
- Advanced Triggering (Edge, Pulse Width, Video, Slope).
- FFT Function for Frequency Spectrum Analysis.
- Digital Filtering Function.
- Mathematical Operations (+, -, ×, ÷).
- 24 Automatic Waveform Parameter Measurements.
- Waveform Recording and Playback Function.
- USB Host Port for Data Storage and Software Upgrades.
- Pass/Fail Testing Function.
- Built-in 6-Digit Hardware Frequency Counter.
- Multi-Language User Interface.
Specifications:
| Parameter | Specification |
|---|---|
| Bandwidth: | 200 MHz |
| Channels: | 2 |
| Real-Time Sampling Rate: | 1 GS/s |
| Equivalent Sampling Rate: | 50 GS/s |
| Vertical Sensitivity: | 2 mV/div – 5 V/div |
| Rise Time: | ≤ 1.8 ns |
| Input Impedance: | 1 MΩ ± 2% ∥ 18 pF ± 3 pF |
| Max. Input Voltage: | 400 V (DC+AC Peak) |
| Timebase Range: | 2 ns/div – 50 s/div |
| Record Length (Memory Depth): | 16 Mpts |
| Waveform Capture Rate: | Up to 150,000 wfms/s |
| Display: | 7-inch TFT LCD (800 × 480) |
| Trigger Types: | Edge, Pulse Width, Video, Slope |
Applications:
- Measuring Simple Signals.
- Capturing Single Signals.
- Reducing Random Noise.
- Cursor Measurement Applications.
- X-Y Function Applications.
- Video Signal Triggering.
- Storing Data to USB Flash Drives.
- Pass/Fail Testing.
Package Contents:
- 1x UTD2202CM Digital Storage Oscilloscope
- 2x Passive Probes (1:1 / 10:1 switchable)
- 1x Power Cord
- 1x User Manual
- 1x Product Warranty Card
- 1x USB Connector Cable (Model: UT-D06)
- 1x Communication Control Software
