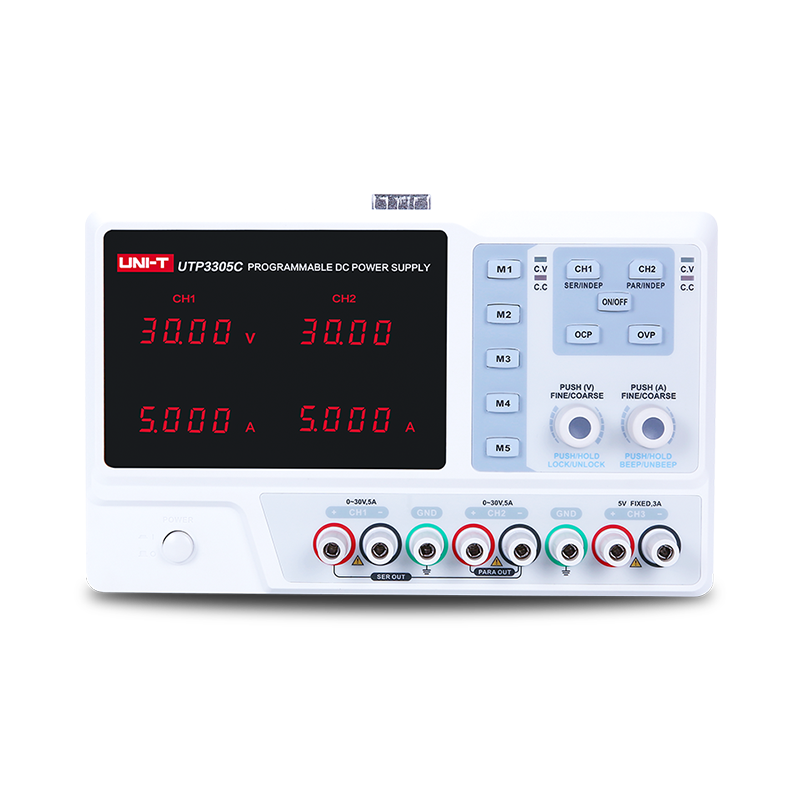

UTP3300C SERIES
The UTP3300C Series Programmable DC Power Supplies are high precision 4-bit display devices with 3-way output, built with voltage and current overload protection, convenient operation panel, and one key storage recall. The Series can be used in electronics circuit behavior test, and automated system test of different environments. The Series is suitable to use in education fields such as special trade schools, universities, colleges, and research labs.
| Features | ||
| model | UTP3305C | |
| Output Voltage | 0~30V (CH1/CH2) | |
| Output Current | 0~5A (CH1/CH2) | |
| Output Power | 315W | |
| Load Regulation | Voltage | <0.01%+5mV |
| Current | <0.1%+10mA | |
| Line Regulation | Voltage | <0.01%+3mV |
| Current | <0.1%+3mA | |
| Resolution | Voltage | 10mV |
| Current | 1mA | |
| Accuracy (25?±5?) | Voltage | <0.5%+20mV |
| Current | <0.5%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤2mVrms |
| Current | ≤3mArms | |
| Output Temperature Coefficient |
Voltage | ≤150ppm |
| Current | ≤150ppm | |
| Voltage Rise Delay | ≤100ms (10% rated load) | |
| Parallel/Serial Load Regulation | ≤0.1%+0.1V | |
| CH3 Output Features | Voltage | 5 V |
| Current | 3 A | |
| Voltage Accuracy | ±50mV | |
| Load Regulation | ±50mV | |

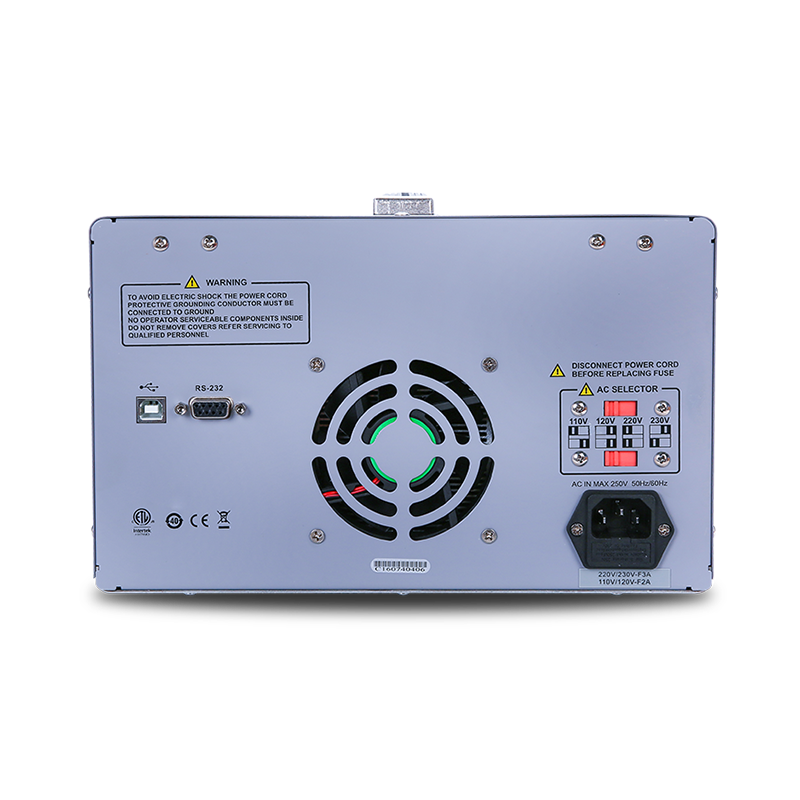

| Interfaces | USB Device, RS-232 | |
| General Features | ||
| Strength | AC 100V/120V/220V/230V±10%, 50Hz/60Hz | |
| View | 4 windows, LED | |
| Product Net Weight | 9.1kg | |
| Item Size | 260mm x 176mm x 317mm | |
