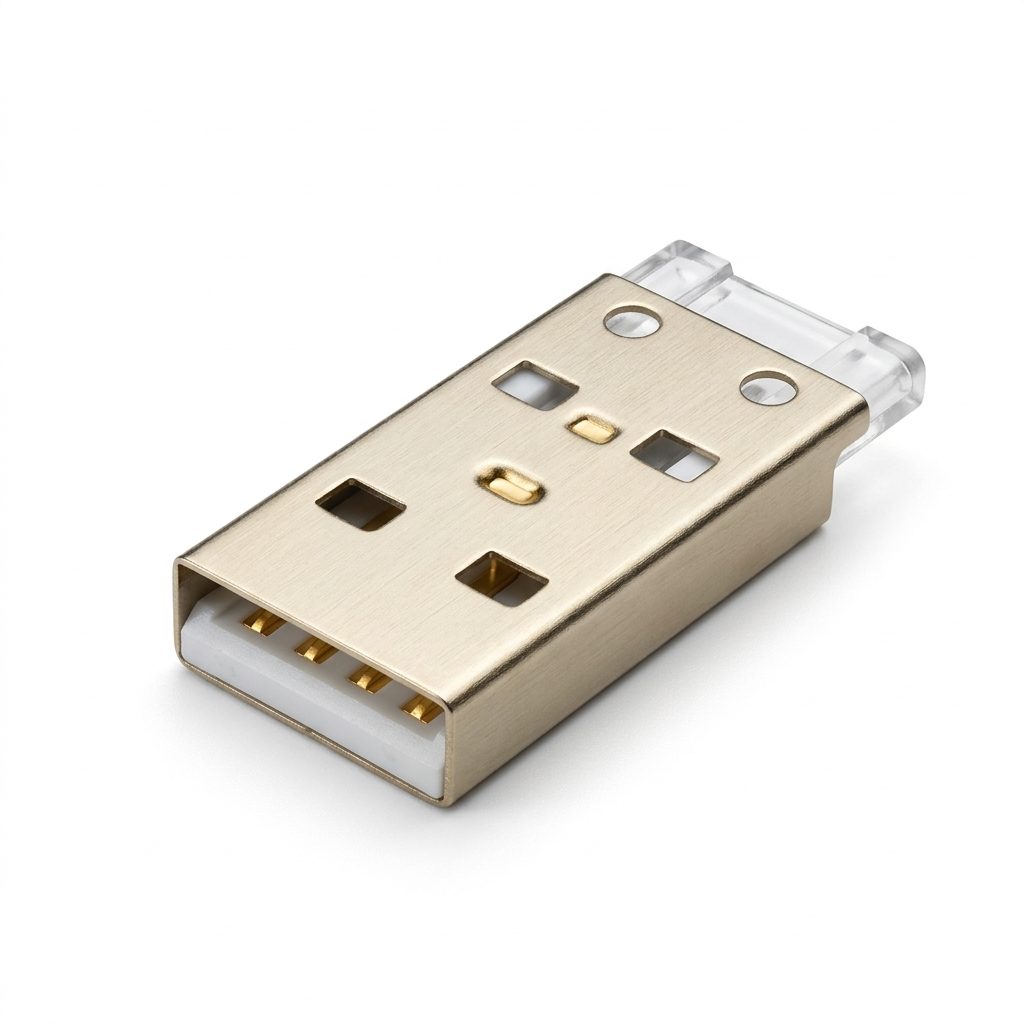

USB Connector Type-A Male Solder Wire 4 Pin 27mm Length
The USB Connector Type-A Male Solder Wire 4 Pin 27mm Length is a compact USB Type-A plug designed for DIY electronics, custom cable assembly, and repair applications. It features four solderable terminals corresponding to the standard USB power and data connections, allowing wires to be connected directly for creating custom USB cables.
With a total length of 27mm, this connector is suitable for compact cable and electronic projects. The standard 4-pin USB Type-A interface supports VBUS power, D− and D+ data signals, and ground. It is commonly used for USB cable repair, custom power connections, development projects, and USB-enabled electronic devices.
Features:
- USB Type-A male connector.
- Standard 4-pin USB interface.
- Direct solder wire connection.
- Supports USB power and data connections.
- Compact 27mm length.
- Suitable for custom cable assembly.
- Suitable for DIY electronics and repair projects.
- Easy integration with custom wiring.
Specifications:
| Specification | Value |
|---|---|
| Connector Type | USB Type-A Male |
| Number of Pins | 4 Pins |
| Interface | USB 2.0 |
| Connection Method | Solder Wire |
| Signal Lines | VBUS, D−, D+, GND |
| Total Length | 27mm |
| Main Function | Power and Data Connection |
| Mounting Type | Cable / Wire Mount |
Pinout:
| Pin | Signal | Function |
|---|---|---|
| 1 | VBUS | +5V Power |
| 2 | D− | USB Data Negative |
| 3 | D+ | USB Data Positive |
| 4 | GND | Ground |
Applications:
- Custom USB cables.
- USB charging cables.
- USB data cables.
- USB cable repair.
- DIY electronics projects.
- Arduino and development projects.
- USB-powered devices.
- Computer peripheral connections.
- Custom power and data connections.
Package Included:
- 1 × USB Connector Type-A Male Solder Wire 4 Pin 27mm Length.
