USB Lightning 8 Pin Male iPhone Socket Solder Wire Adapter 5 Pin PD 12W

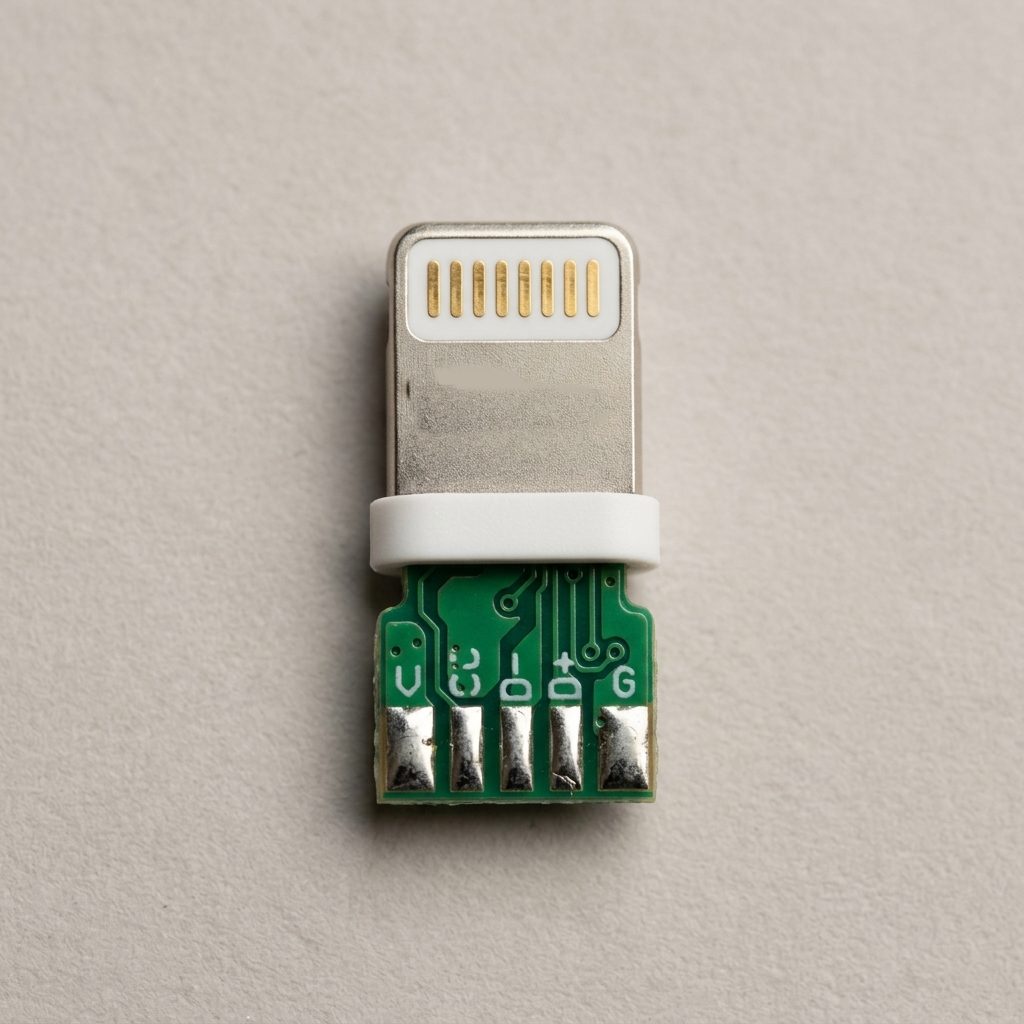

The USB Lightning 8 Pin Male iPhone Socket Solder Wire Adapter 5 Pin PD 12W is a compact connector designed for DIY cable assembly, electronic repair, and custom charging applications. It features a Lightning-style 8-pin male connector with five solderable wire connection points, allowing convenient connection of power and signal wires for compatible charging applications.
Designed for up to 12W power applications, this adapter is suitable for custom Lightning charging cable projects and connector replacement. The solder wire design makes it easy to integrate into custom circuits and cables. It is primarily intended for compatible charging and power applications, depending on the connected device, cable construction, and charging source.
Features:
- Lightning-style 8-pin male connector.
- Five solderable wire connection points.
- Compact adapter design.
- Suitable for custom cable assembly.
- Designed for compatible charging applications.
- Supports power connections up to the stated 12W rating.
- Suitable for DIY and repair projects.
- Easy integration with custom wires and cables.
Specifications:
| Specification | Value |
|---|---|
| Connector Type | Lightning 8 Pin Male |
| Compatible Interface | Apple Lightning |
| Connector Pins | 8 Pins |
| Solder Connection | 5 Pins |
| Connection Method | Solder Wire |
| Power Rating | Up to 12W |
| Main Function | Charging and Power Connection |
| Mounting Type | Wire / Cable Mount |
Pinout:
| Pin | Connection | Description |
|---|---|---|
| VBUS | Power | Positive Power Line |
| GND | Ground | Negative Power Line |
| CC | Configuration Channel | USB Type-C Configuration / PD Communication |
| D+ | Data Positive | USB Data Positive |
| D- | Data Negative | USB Data Negative |
Applications:
- Custom Lightning charging cables.
- Compatible iPhone charging projects.
- Apple device cable repair.
- DIY charging cable assembly.
- Connector replacement.
- Custom power cable projects.
- Electronics repair and prototyping.
Package Included:
- 1 × USB Lightning 8 Pin Male iPhone Socket Solder Wire Adapter 5 Pin PD 12W.
